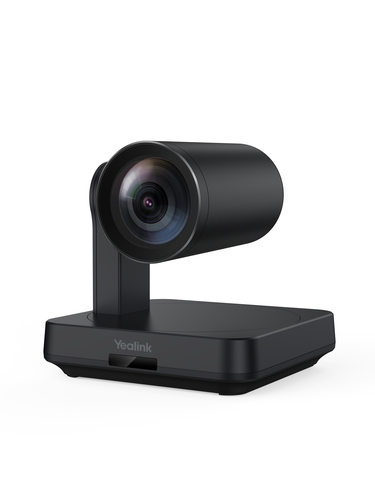

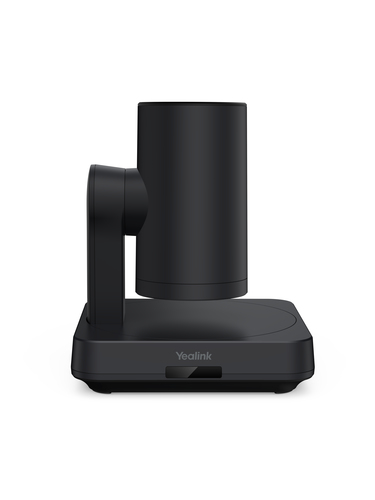

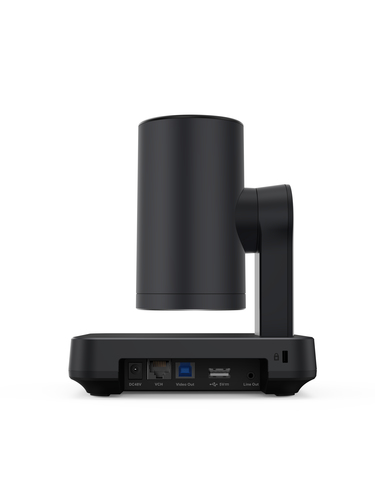

UVC84
Model UVC84Part no. 1206610EAN 6938818307438
53 specifications
- Weight2.9 kg
- ColourBlack
- Camera typeSingle camera
- Maximum video resolution3840 x 2160 pixels
- USB 2.0 ports quantity2
- Power source typeAC, DC
Overview
- Weight
- 2.9 kg
- Colour
- Black
- Camera type
- Single camera
- Maximum video resolution
- 3840 x 2160 pixels
- USB 2.0 ports quantity
- 2
- Power source type
- AC, DC
- Brand
- Yealink
- Category
- Video Conferencing Camera
- Model
- UVC84
- Part number
- 1206610
- EAN / UPC
- 6938818307438, 841885106063, 841885106223, 841885120830 +2 more
- Also known as
- Yealink UVC84
Specifications
53 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 3x |
| Combined zoom | 36x |
| Field of view (FOV) angle | 80° |
| Focal length range | 3.9 - 46.8 mm |
| Horizontal field of view | 73° |
| Vertical field of view | 45° |
| Minimum illumination | 0.1 lx |
| Signal-to-Noise Ratio (SNR) | 63 dB |
| Aperture range (F-F) | 1.6 - 2.8 |
| White balance | ATW, Auto, Manual |
| Light exposure modes | Auto, Manual |
| Fastest camera shutter speed | 1/10000 s |
| Slowest camera shutter speed | 0.01667 s |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 1280x720@30fps, 1920x1080@30fps, 3840x2160@30fps |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Stand |
| Tilt angle range | -90 - 40° |
| Pan range | -100 - 100° |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Headphone out | Yes |
| Line-out | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 100-240 V |
| DC input voltage | 48 V |
| Input current | 0.7 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
Performance
| Specification | Value |
|---|---|
| Remote control function | Yes |
| Cable lock slot | Yes |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | USB |
| USB cable length | 7 m |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Packaging content | VC84 Camera VCR20 remote control Power adapter Wall bracket and accessories 7m USB cable |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 156 mm |
| Depth | 156 mm |
| Height | 183 mm |
| Height (max) | 19.2 cm |
| Weight | 2.9 kg |
