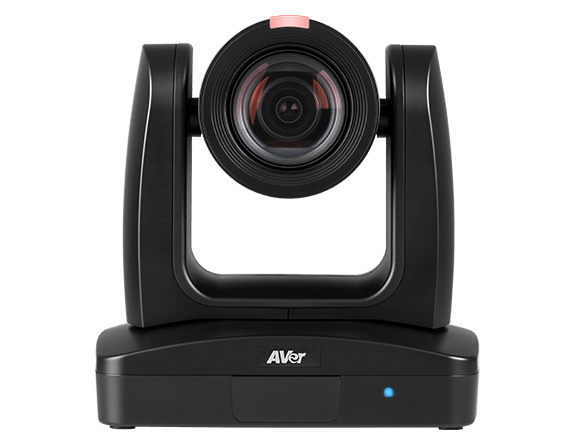

PTC330N video conferencing camera
2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Model PTC330N
93 specifications
- Weight1.7 kg
- ColourBlack
- Megapixel (approx.)2 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- Power source typeAC
Overview
- Weight
- 1.7 kg
- Colour
- Black
- Megapixel (approx.)
- 2 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- Power source type
- AC
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- PTC330N
- Part number
- PTC330N
- Also known as
- AVer PTC330N video conferencing camera 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
93 specifications in 12 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Sensor zoom | 2x |
| Field of view (tele) | 2.64° |
| Field of view (wide) | 72.9° |
| Focal length range | 4.3 - 129 mm |
| Horizontal field of view (tele) | 2.34° |
| Horizontal field of view (wide) | 65.1° |
| Vertical field of view (tele) | 1.36° |
| Vertical field of view (wide) | 38.4° |
| Minimum illumination | 0.7 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Flip & mirror | Yes |
| F-number (relative aperture) | 1.6 |
| White balance | Auto, Manual |
| Auto exposure | Yes |
| Light exposure modes | Auto, Manual |
| Gain control type | Auto/Manual |
| 3D NR (Noise Reduction) | Yes |
| Fastest camera shutter speed | 1/10000 s |
| Maximum working distance (tele) | 1.2 mm |
| Minimum working distance (wide) | 0.01 mm |
| Slowest camera shutter speed | 1 s |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Resolution at capture speed | 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97PsF, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps |
| Supported video modes | 720p, 1080i, 1080p |
| Video formats supported | H.264, H.265, M-JPEG, YUY2 |
| Number of TV lines | 900 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| Tally light | Yes |
| Tilt preset speed | 200 °/sec |
| Tilt speed (max) | 100 °/sec |
| Tilt speed (min) | 0.1 °/sec |
| Pan preset speed | 200 °/sec |
| Pan speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |

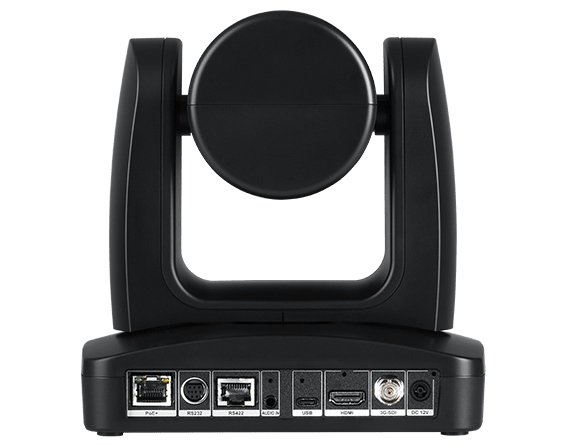

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| USB Type-C connector | Yes |
| RS-232 ports | 1 |
| RS-422 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| S-Video outputs quantity | 4 |
| 3G-SDI output | Yes |
| VISCA input ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Input current | 5 A |
| Power consumption (typical) | 18 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 |
Performance
| Specification | Value |
|---|---|
| Live video preview | Yes |
| Tracking modes | Presenter mode, Zone mode |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network streaming | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate range | 512 - 32768 Kbit/s |
| Multi-stream capability | 2 (RTSP / Web Page), 1080p 60fps (max.) |
| Network configuration | DHCP, IP Address, Gateway, Subnet Mask, DNS |
| Supported network protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
| Audio channels | 1 |
| Audio codecs | AAC-LC (48 / 44.1 / 32 / 24K) |
| Supported sample rates | 48 kHz |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Number of screws | 10 |
| Screws included | Yes |
| AC adapter included | Yes |
| Cable ties included | Yes |
| Mounting brackets included | Yes |
| Number of cable fixing plates | 2 |
| Number of cable ties | 5 |
| Quick start guide | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 145 mm |
| Height | 183.6 mm |
| Weight | 1.7 kg |
