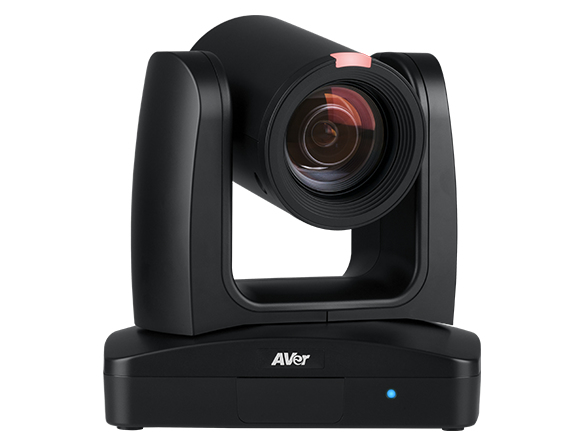

PTC310H 8 MP Black 30 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Model PTC310HPart no. 61S9100000AGEAN 4719552126316
101 specifications
- Weight1.77 kg
- ColourBlack
- Megapixel (approx.)8 MP
- Maximum frame rate30 fps
- HDMI ports quantity1
- Power source typeAC, PoE
Overview
- Weight
- 1.77 kg
- Colour
- Black
- Megapixel (approx.)
- 8 MP
- Maximum frame rate
- 30 fps
- HDMI ports quantity
- 1
- Power source type
- AC, PoE
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- PTC310H
- Part number
- 61S9100000AG
- EAN / UPC
- 4719552126316
- Also known as
- AVer PTC310H 8 MP Black 30 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
101 specifications in 14 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 12x |
| Digital zoom | 12x |
| Sensor zoom | 2x |
| Focal length range | 3.9 - 46.8 mm |
| Horizontal field of view (tele) | 6° |
| Horizontal field of view (wide) | 70° |
| Vertical field of view (tele) | 3° |
| Vertical field of view (wide) | 42° |
| Minimum illumination | 0.4 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture range (F-F) | 1.6 - 2.8 |
| White balance | Auto, Manual |
| Auto exposure | Yes |
| Gain control type | Auto/Manual |
| PTZ control | Yes |
| PTZ protocols | Pelco-P/D, VISCA |
| 3D NR (Noise Reduction) | Yes |
| Fastest camera shutter speed | 1/3200 s |
| Maximum working distance (tele) | 150 cm |
| Minimum working distance (wide) | 30 cm |
Video
| Specification | Value |
|---|---|
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 1280x720@50fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps, 3840x2160@25fps, 3840x2160@29.97fps, 3840x2160@30fps |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| Video formats supported | H.264, H.265 |
| Number of TV lines | 1400 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | 170 - 170° |
| Tally light | Yes |
| Web-based management | Yes |
| Tilt preset speed | 200 °/sec |
| Tilt speed (max) | 100 °/sec |
| Tilt speed (min) | 0.1 °/sec |
| Pan preset speed | 200 °/sec |
| Pan speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |
| Country of origin | Taiwan |

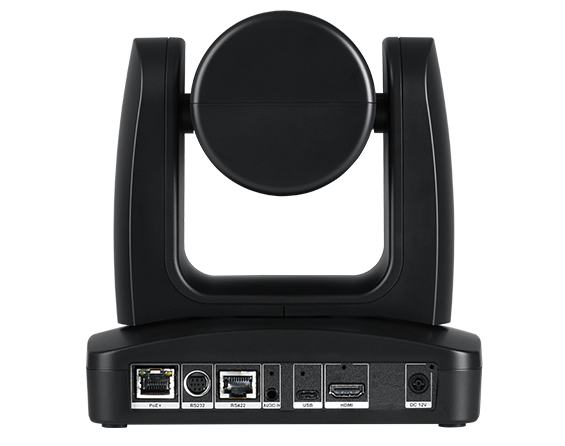

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Type-C connector | Yes |
| RS-232 ports | 1 |
| RS-422 ports | 1 |
| DC-in jack | Yes |
| Microphone in | Yes |
| Line-in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, PoE |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Input current | 5 A |
| Operating current | 5 A |
| Operating voltage | 12 V |
| Power consumption (typical) | 18 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 80 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Storage relative humidity (H-H) | 20 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Performance
| Specification | Value |
|---|---|
| Screen mirroring | Yes |
| Live video preview | Yes |
| Auto-tracking | Yes |
| Tracking modes | Presenter mode, Zone mode |
| Remote control function | Yes |
| Remote control type | IR |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network streaming | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate range | 512 - 32000 Kbit/s |
| Multi-stream capability | 2 (RTSP / Web Page), 1080p 60fps (max.) |
| Network configuration | DHCP, IP Address, Gateway, Subnet Mask, DNS |
| Supported network protocols | IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
| Audio channels | 2 |
| Audio codecs | AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K) |
| Supported sample rates | 48 kHz |
Packaging content
| Specification | Value |
|---|---|
| Cables included | RS-232 |
| Number of screws | 10 |
| Screws included | Yes |
| AC adapter included | Yes |
| Cable ties included | Yes |
| Mounting brackets included | Yes |
| Number of cable fixing plates | 2 |
| Number of cable ties | 5 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8525890000 |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet | 60 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 145 mm |
| Height | 183.5 mm |
| Weight | 1.77 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 268 mm |
| Package depth | 268 mm |
| Package height | 330 mm |
| Package weight | 4.73 kg |
