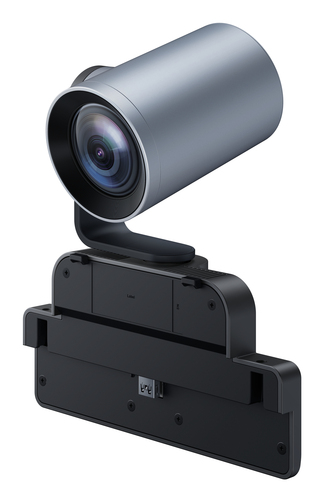

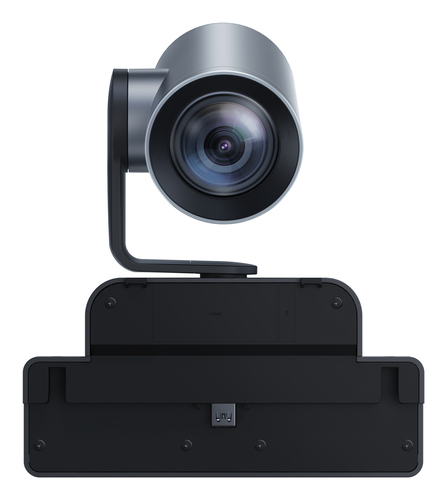

MB-12X Pro
Model MB-12X ProPart no. 1303128EAN 841885122940
24 specifications
- Weight1 kg
- ColourBlack, Grey
- Camera typeSingle camera
- Maximum video resolution3840 x 2160 pixels
Overview
- Weight
- 1 kg
- Colour
- Black, Grey
- Camera type
- Single camera
- Maximum video resolution
- 3840 x 2160 pixels
- Brand
- Yealink
- Category
- Video Conferencing Camera
- Model
- MB-12X Pro
- Part number
- 1303128
- EAN / UPC
- 841885122940, 5715328106840, 5715328107830, 6938818319103
- Also known as
- Yealink - 12X Pro
Specifications
24 specifications in 5 groups
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Field of view (FOV) angle | 90° |
| Focal length range | 3.4 - 40.4 mm |
| Horizontal field of view | 80° |
| Vertical field of view | 49° |
| Minimum illumination | 0.1 lx |
| Signal-to-Noise Ratio (SNR) | 63 dB |
| Aperture range (F-F) | 1.8 - 3.62 |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 3840x2160@30fps |
| Supported video modes | 2160p |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Tilt angle range | 0 - 90° |
| Pan range | -100 - 100° |
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 245 mm |
| Package depth | 287 mm |
| Package height | 125 mm |
| Package weight | 1.35 kg |
