VLCAM230 video conferencing camera White
1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Model VLCAM230EAN 5704174236924
51 specifications
- Weight1.3 kg
- ColourWhite
- Sensor typeCMOS
- Maximum video resolution1920 x 1080 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
- AC input voltage110 - 230 V
Overview
- Weight
- 1.3 kg
- Colour
- White
- Sensor type
- CMOS
- Maximum video resolution
- 1920 x 1080 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 1
- AC input voltage
- 110 - 230 V
- Brand
- Vivolink
- Category
- Video Conferencing Camera
- Model
- VLCAM230
- Part number
- VLCAM230
- EAN / UPC
- 5704174236924, 5704174971924
- Also known as
- Vivolink VLCAM230 video conferencing camera White 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
51 specifications in 12 groups
Camera
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 2.07 MP |
| Optical zoom | 12x |
| Digital zoom | 12x |
| Field of view (tele) | 6.3° |

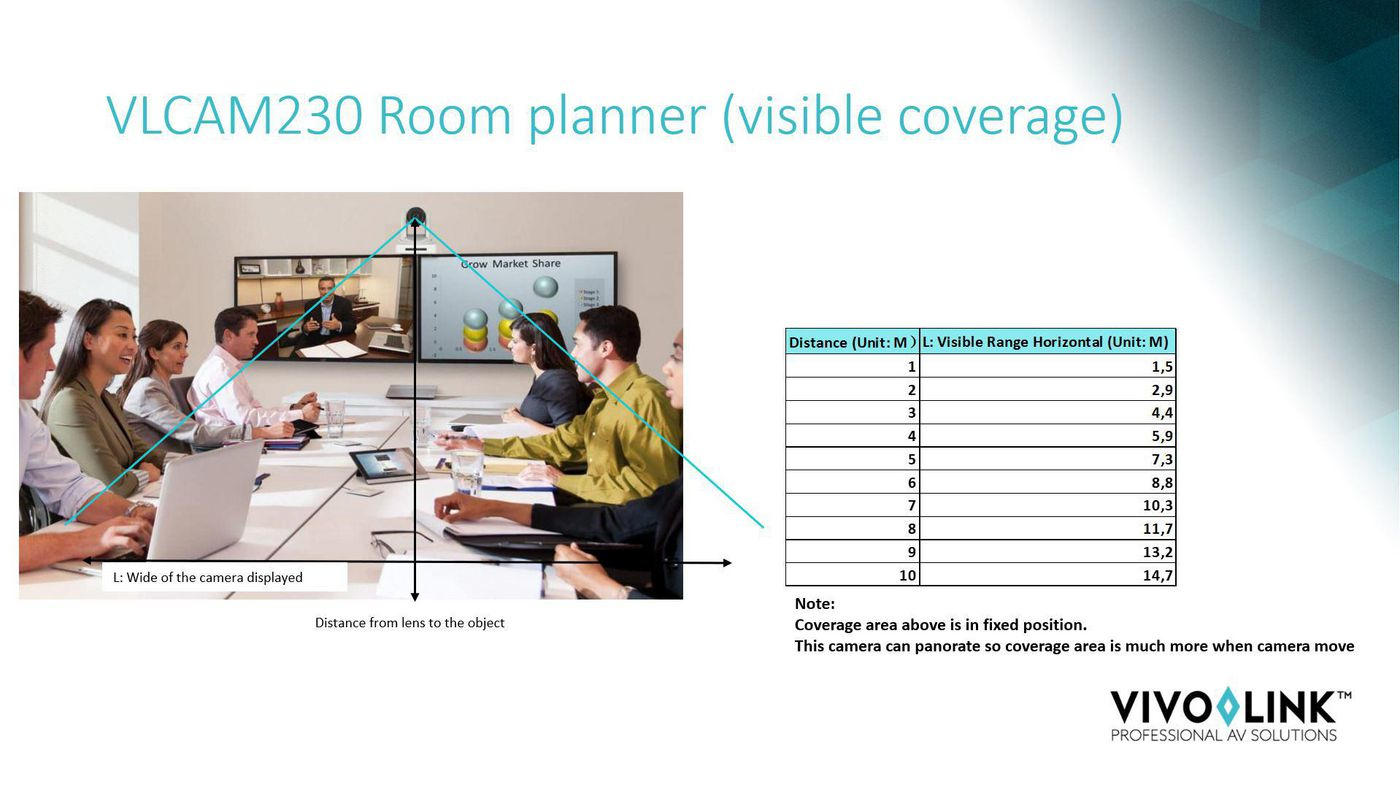

| Field of view (wide) | 72.5° |
| Minimum illumination | 0.5 lx |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Aperture range (F-F) | 1.8 - 2.4 |
| White balance | Auto |
| Auto focusing (AF) modes | Auto |
| Wide Dynamic Range (WDR) | Yes |
| Back Light Compensation (BLC) | Yes |
| Number of camera presets | 10 |
| PTZ control | Yes |
| 3D NR (Noise Reduction) | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Tilt angle range | 0 - 120° |
| Pan range | 0 - 340° |

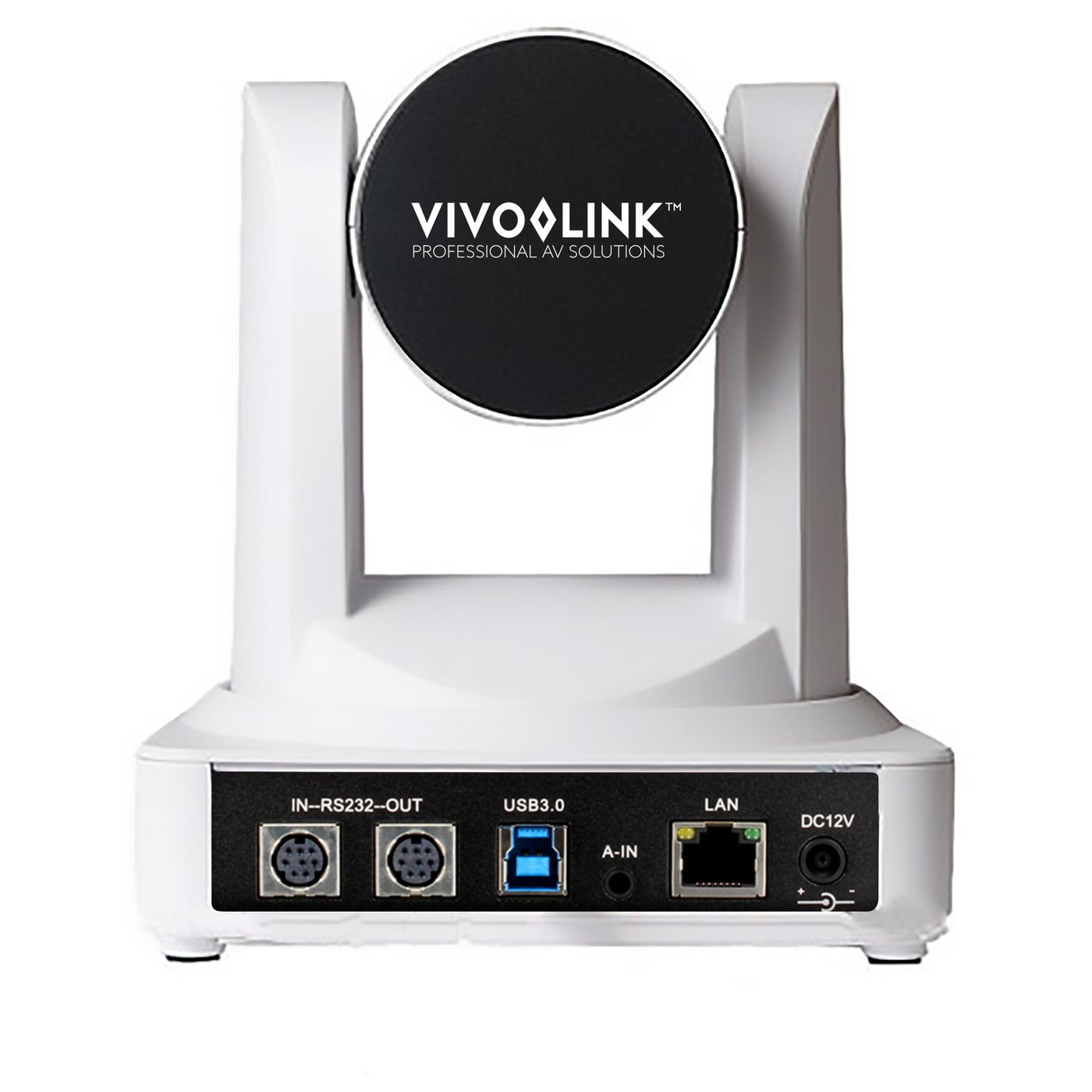

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VISCA input ports | 2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 230 V |
| Operating current | 4 A |
| Operating voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Performance
| Specification | Value |
|---|---|
| Remote control function | Yes |
| Tripod mounting supported | Yes |
| Firmware upgradeable | Yes |
| Plug and Play | Yes |
Audio
| Specification | Value |
|---|---|
| Automatic gain control | Yes |
| Audio codecs | 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, PCM audio coding |
Packaging content
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Remote control included | Yes |
| AC adapter included | Yes |
Network
| Specification | Value |
|---|---|
| Network streaming | Yes |
| Supported network protocols | ONVIF, RTSP, RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza, FMS) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 167.5 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 250 mm |
| Package height | 225 mm |
| Package weight | 1.4 kg |
