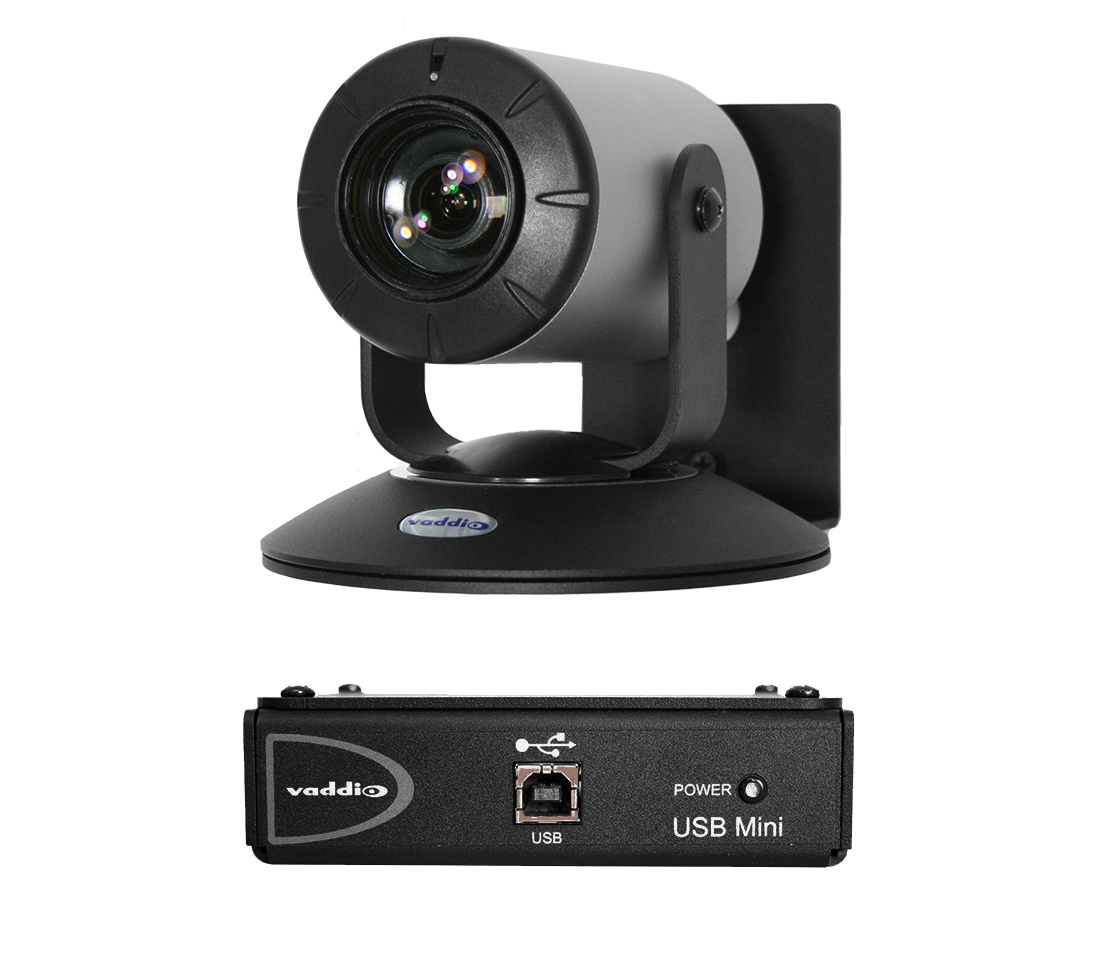

ZoomSHOT 20
Model ZoomSHOT 20Part no. 999-6920-401
34 specifications
- Weight1.68 kg
- ColourBlack
- Megapixel (approx.)2.38 MP
- Maximum video resolution1920 x 1080 pixels
- Mini-USB ports quantity1
- Power source typeDC
Overview
- Weight
- 1.68 kg
- Colour
- Black
- Megapixel (approx.)
- 2.38 MP
- Maximum video resolution
- 1920 x 1080 pixels
- Mini-USB ports quantity
- 1
- Power source type
- DC
- Brand
- Vaddio
- Category
- Video Conferencing Camera
- Model
- ZoomSHOT 20
- Part number
- 999-6920-401
- Also known as
- Vaddio ZoomSHOT 20 2.38 MP Black 1920 x 1080 pixels CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
34 specifications in 6 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 2.14 MP |
| Optical zoom | 20x |
| Focal length range | 4.44 - 89 mm |
| Horizontal field of view (tele) | 3.47° |
| Horizontal field of view (wide) | 63° |
| Wide end viewing angle (normal mode) | 36.8° |
| Tele end viewing angle (normal mode) | 1.85° |
| Minimum illumination | 0.03 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture range (F-F) | 1.6 - 3.4 |
| Number of camera presets | 16 |
| Aspect ratio | 16:9 |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Supported video modes | 720p, 1080i, 1080p |
| Video formats supported | H.264, M-JPEG |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Stand |
| Tilt angle range | -30 - 30° |
| LED indicators | Power |

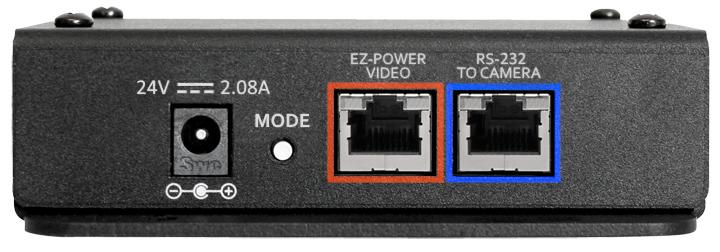

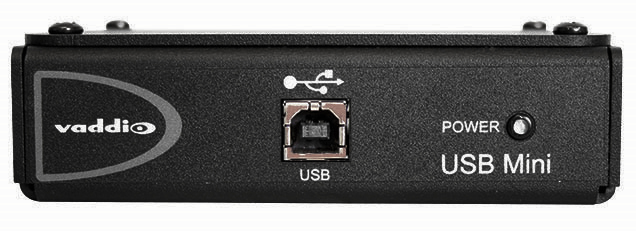

Ports & interfaces
| Specification | Value |
|---|---|
| Mini-USB ports quantity | 1 |
| RS-232 ports | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC input voltage | 24 V |
| Input current | 2.08 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76.2 mm |
| Depth | 76.2 mm |
| Height | 120.7 mm |
| Weight | 1.68 kg |
