RoboSHOT 30 HDBT
Model RoboSHOT 30 HDBTPart no. 999-9963-001
40 specifications
- Weight2.2 kg
- ColourBlack
- Megapixel (approx.)2.38 MP
- Supported video modes1080p
- HDMI ports quantity1
- DC input voltage12 V
Overview
- Weight
- 2.2 kg
- Colour
- Black
- Megapixel (approx.)
- 2.38 MP
- Supported video modes
- 1080p
- HDMI ports quantity
- 1
- DC input voltage
- 12 V
- Brand
- Vaddio
- Category
- Video Conferencing Camera
- Model
- RoboSHOT 30 HDBT
- Part numbers
- 999-9963-001, 999-9963-001W
- Also known as
- Vaddio RoboSHOT 30 HDBT 2.38 MP Black CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
40 specifications in 8 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 2.14 MP |
| Optical zoom | 30x |
| Horizontal field of view (tele) | 2.3° |
| Horizontal field of view (wide) | 65° |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture number of steps | 16 |
| Aperture range (F-F) | 1.6 - 4.7 |
| White balance | ATW, Auto, Indoor, Manual, One push, Outdoor |
| Focus adjustment | Auto/Manual |
| Auto focusing (AF) modes | Infinity, Near Limit, One Push Trigger |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
| Gain number of steps | 28 |
| PTZ control | Yes |
| Maximum working distance (tele) | 120 cm |
| Minimum working distance (wide) | 1 cm |
| Sync system | Internal |
Video
| Specification | Value |
|---|---|
| Supported video modes | 1080p |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -160 - 160° |
| Web-based management | Yes |
| Tilt speed (max) | 120 °/sec |
| Pan speed (max) | 120 °/sec |

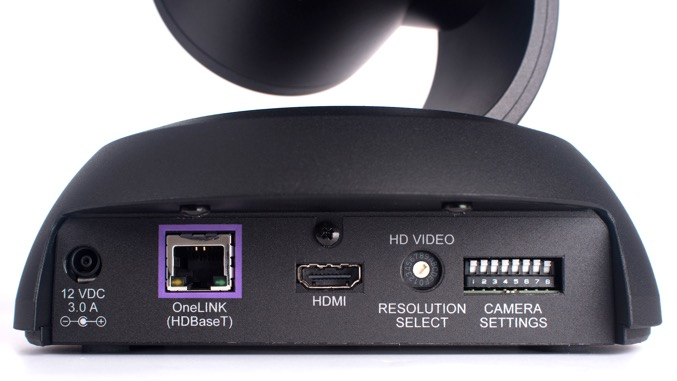

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 V |
| Input current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 172 mm |
| Height | 176 mm |
| Weight | 2.2 kg |
