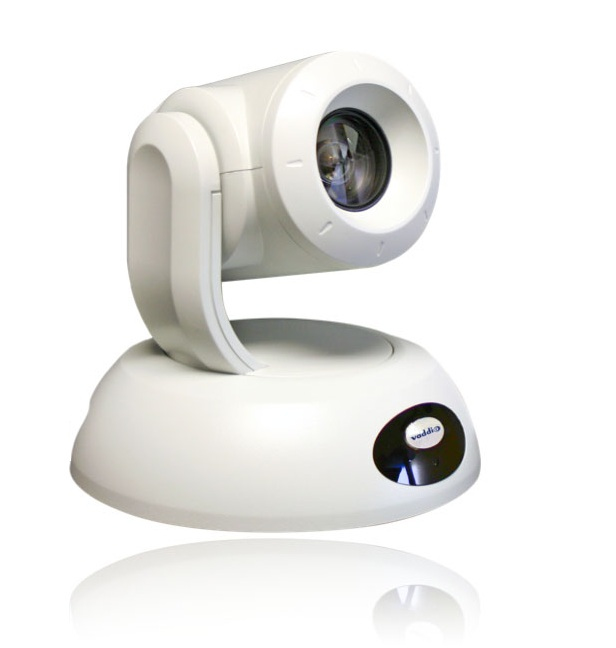

RoboSHOT 30 HD-SDI
Model RoboSHOT 30 HD-SDIPart no. 999-9933-001W
49 specifications
- Weight2.2 kg
- ColourWhite
- Megapixel (approx.)2.38 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- DC input voltage12 V
Overview
- Weight
- 2.2 kg
- Colour
- White
- Megapixel (approx.)
- 2.38 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- DC input voltage
- 12 V
- Brand
- Vaddio
- Category
- Video Conferencing Camera
- Model
- RoboSHOT 30 HD-SDI
- Part numbers
- 999-9933-001W, 999-9933-001
- Also known as
- Vaddio RoboSHOT 30 HD-SDI 2.38 MP White 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
49 specifications in 9 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 2.14 MP |
| Optical zoom | 30x |
| Horizontal field of view (tele) | 2.3° |
| Horizontal field of view (wide) | 65° |
| Minimum illumination | 1 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture range (F-F) | 1.6 - 4.7 |
| Focus adjustment | Auto |
| PTZ control | Yes |
| Aspect ratio | 16:9 |
| Maximum working distance (tele) | 120 cm |
| Minimum working distance (wide) | 1 cm |
| Sync system | Internal |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Supported video modes | 720p, 1080i, 1080p |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Tilt angle range | -30 - 90° |
| Pan range | -160 - 160° |
| Web-based management | Yes |
| Tilt speed (max) | 120 °/sec |
| Tilt speed (min) | 0.35 °/sec |
| Pan speed (max) | 120 °/sec |
| Pan speed (min) | 0.35 °/sec |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| BNC output ports | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| HD-SDI output | Yes |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 V |
| Input current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Control adapter | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179.2 mm |
| Depth | 171.6 mm |
| Height | 176.3 mm |
| Weight | 2.2 kg |
