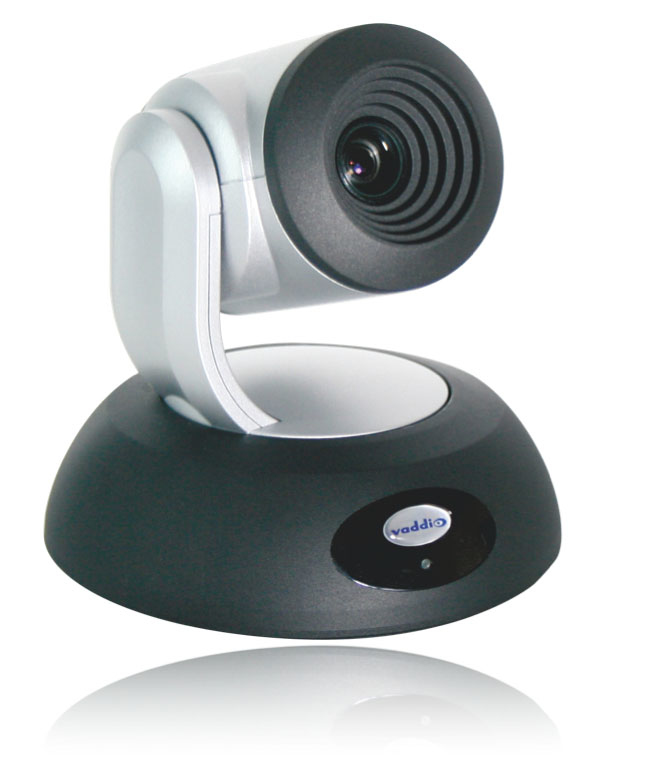

Vaddio RoboSHOT 12 HDBT: Full Specifications

Overview

Weight: 2.2 kg
Colour: Black, Silver
Megapixel (approx.): 2.38 MP
HDMI ports quantity: 1
DC input voltage: 12 V
Operating temperature (T-T): 0 - 40 °C

Brand: Vaddio
Category: Video Conferencing Camera
Model: RoboSHOT 12 HDBT
Part number: 999-9960-001
Also known as: Vaddio RoboSHOT 12 HDBT 2.38 MP Black, Silver CMOS 25.4 / 2.8 mm (1 / 2.8")

Specifications

50 specifications in 8 groups

Camera

Specification	Value
Megapixel (approx.)	2.38 MP
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Effective sensor resolution	2.14 MP
Optical zoom	12x
Optical zoom (normal mode)	10x
Optical zoom (super-wide mode)	12x
Focal length range (normal mode)	3.8 - 38 mm
Focal length range (super-wide mode)	3.91 - 47 mm
Wide end viewing angle (normal mode)	67.3°
Tele end viewing angle (normal mode)	7.6°
Wide end viewing angle (super-wide mode)	73°
Tele end viewing angle (super-wide mode)	6.6°
Signal-to-Noise Ratio (SNR)	50 dB
Aperture number of steps	16
Aperture range (F-F)	1.8 - 3.4
White balance	ATW, Auto, Indoor, Manual, One push, Outdoor
Focus adjustment	Auto/Manual
Auto focusing (AF) modes	Infinity, Near Limit, One Push Trigger
Back Light Compensation (BLC)	Yes
Gain control type	Auto/Manual
Gain number of steps	28
Maximum working distance (tele)	80 cm
Minimum working distance (wide)	1 cm
Sync system	Internal

Design

Specification	Value
Product colour	Black, Silver
Tilt angle range	-30 - 90°
Pan range	-160 - 160°
Web-based management	Yes
Tilt speed (max)	120 °/sec
Tilt speed (min)	0.35 °/sec
Pan speed (max)	120 °/sec
Pan speed (min)	0.35 °/sec

Ports & interfaces

Specification	Value
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
DC input voltage	12 V
Input current	3 A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%

Audio

Specification	Value
Noise reduction	Yes

Packaging content

Specification	Value
Remote control included	Yes
Cables included	AC
AC adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes

Weight & dimensions

Specification	Value
Width	179 mm
Depth	172 mm
Height	176 mm
Weight	2.2 kg
