Vaddio RoboSHOT 12 HD-SDI: Full Specifications

Overview

Weight: 2.2 kg
Colour: Black, Silver
Megapixel (approx.): 2.38 MP
Maximum video resolution: 1920 x 1080 pixels
HDMI ports quantity: 1
DC input voltage: 12 V

Brand: Vaddio
Category: Video Conferencing Camera
Model: RoboSHOT 12 HD-SDI
Part number: 999-9930-001
Also known as: Vaddio RoboSHOT 12 HD-SDI 2.38 MP Black, Silver 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")

Specifications

54 specifications in 9 groups

Camera

Specification	Value
Megapixel (approx.)	2.38 MP
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Effective sensor resolution	2.14 MP
Optical zoom (normal mode)	10x
Optical zoom (super-wide mode)	12x
Focal length range (normal mode)	3.8 - 38 mm
Focal length range (super-wide mode)	3.91 - 47 mm
Wide end viewing angle (normal mode)	67.3°
Tele end viewing angle (normal mode)	7.6°
Wide end viewing angle (super-wide mode)	73°
Minimum illumination	1 lx
Tele end viewing angle (super-wide mode)	6.6°
Signal-to-Noise Ratio (SNR)	50 dB
Aperture range (F-F)	1.8 - 3.4
Focus adjustment	Auto
PTZ control	Yes
Aspect ratio	16:9
Maximum working distance (tele)	80 cm
Minimum working distance (wide)	1 cm
Sync system	Internal

Video

Specification	Value
Maximum video resolution	1920 x 1080 pixels
Maximum frame rate	60 fps
HD type	Full HD
Supported video modes	720p, 1080i, 1080p

Design

Specification	Value
Product colour	Black, Silver
Tilt angle range	-30 - 90°
Pan range	-160 - 160°
Web-based management	Yes
Tilt speed (max)	120 °/sec
Tilt speed (min)	0.35 °/sec
Pan speed (max)	120 °/sec
Pan speed (min)	0.35 °/sec

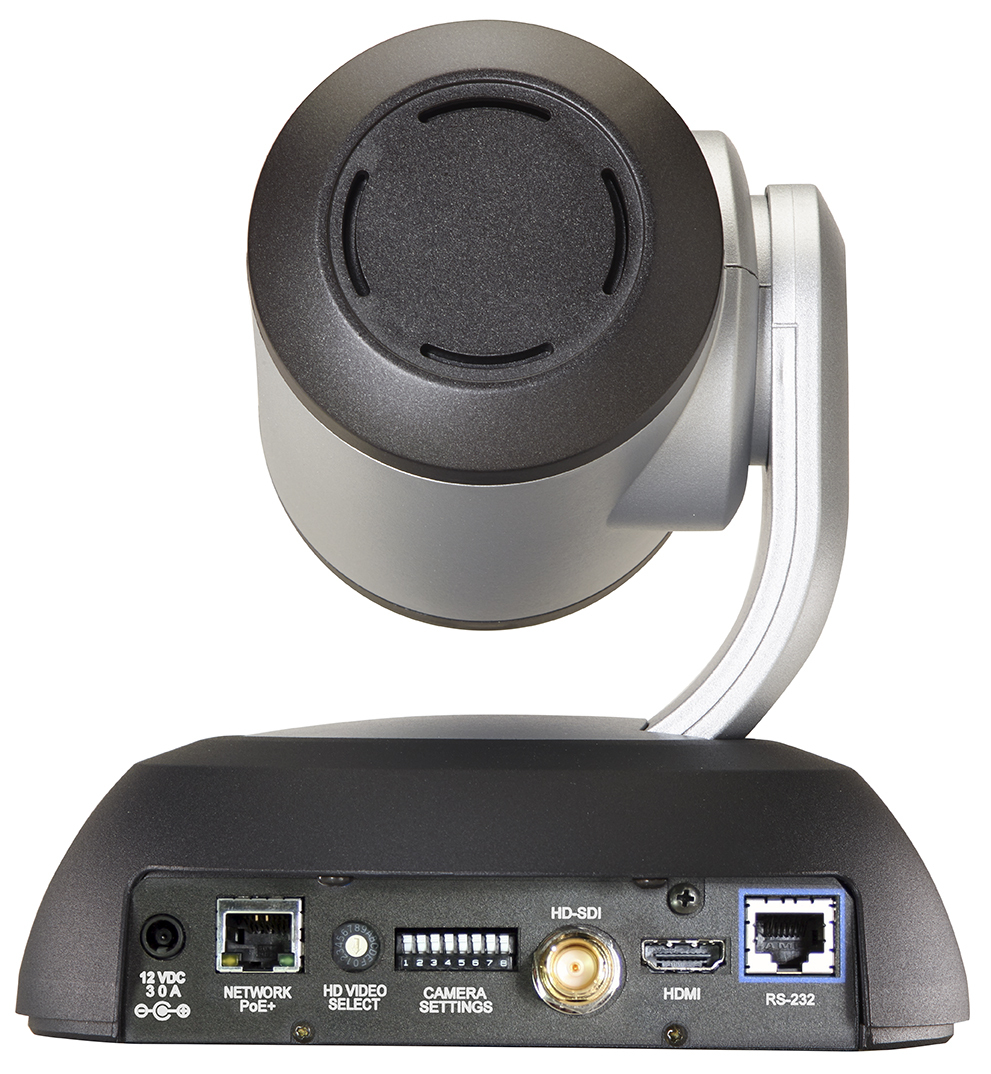

Ports & interfaces

Specification	Value
HDMI ports quantity	1
BNC output ports	1
Power over Ethernet (PoE) ports quantity	1
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
HD-SDI output	Yes

Power

Specification	Value
DC input voltage	12 V
Input current	3 A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%

Network

Specification	Value
Ethernet LAN data rates	1000 Mbit/s

Packaging content

Specification	Value
Remote control included	Yes
Cables included	AC
AC adapter included	Yes
Control adapter	Yes
Mounting kit	Yes
Quick start guide	Yes

Weight & dimensions

Specification	Value
Width	179.2 mm
Depth	171.6 mm
Height	176.3 mm
Weight	2.2 kg
