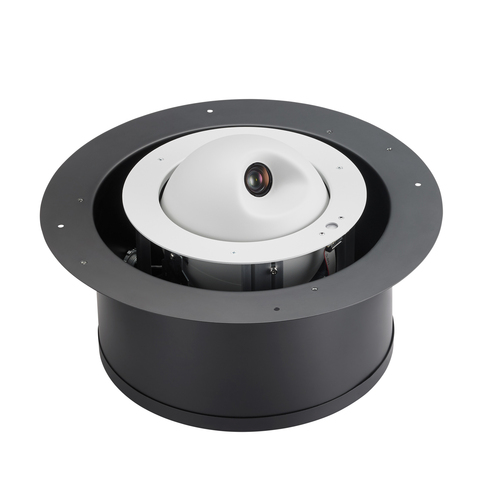

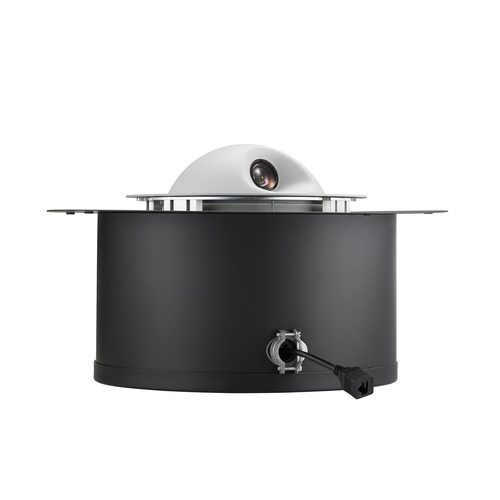

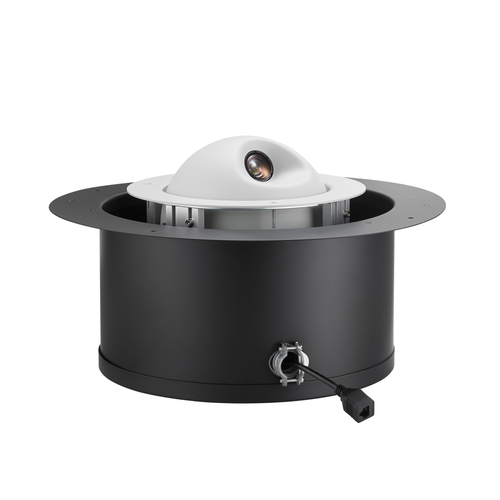

RoboFLIP 30 HDBT
Model RoboFLIP 30 HDBTPart no. 999-99800-001EAN 840077506209
40 specifications
- Weight6.8 kg
- ColourWhite
- Megapixel (approx.)8.5 MP
- Maximum video resolution1920 x 1080 pixels
- Power source typePoE
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 6.8 kg
- Colour
- White
- Megapixel (approx.)
- 8.5 MP
- Maximum video resolution
- 1920 x 1080 pixels
- Power source type
- PoE
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Vaddio
- Category
- Video Conferencing Camera
- Model
- RoboFLIP 30 HDBT
- Part number
- 999-99800-001
- EAN / UPC
- 840077506209
- Also known as
- Vaddio RoboFLIP 4K HDBT PTZ Ceiling Camera
Specifications
40 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.5 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Digital zoom | 30x |
| Minimum illumination | 1.6 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture number of steps | 16 |
| White balance | ATW, Auto, Indoor, Manual |
| Auto focusing (AF) modes | Auto, Manual, One Push Trigger |
| Number of camera presets | 16 |
| Aspect ratio | 3:2, 4:3, 16:9 |
| Maximum working distance (tele) | 80 cm |
| Minimum working distance (wide) | 8 cm |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 30 fps |
| HD type | Full HD |
Design
| Specification | Value |
|---|---|
| Product colour | White |

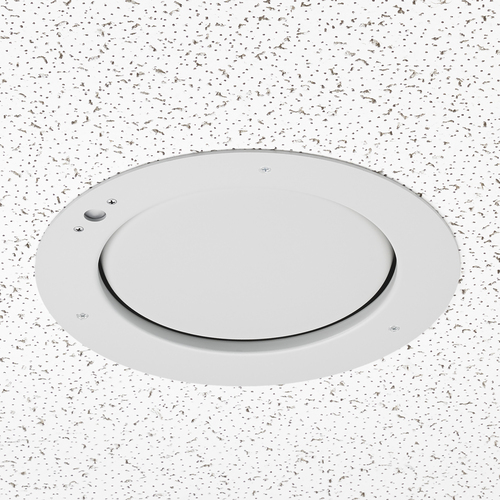

| Mounting type | Table/Ceiling |
| Tilt angle range | -30 - 90° |
| Pan range | -160 - 160° |
| Tilt speed (max) | 120 °/sec |
| Tilt speed (min) | 0.35 °/sec |
| Pan speed (max) | 120 °/sec |
| Pan speed (min) | 0.35 °/sec |
| Country of origin | United States |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, TAA |
Performance
| Specification | Value |
|---|---|
| Certification | CE,FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 406.4 mm |
| Depth | 457.2 mm |
| Height | 234.9 mm |
| Weight | 6.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 11.3 kg |
