PrimeSHOT 10 HDMI
Model PrimeSHOT 10 HDMIPart no. 999-30410-801WEAN 840077508586
57 specifications
- Weight1.36 kg
- ColourBlack
- Megapixel (approx.)2.14 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- Power source typeDC
Overview
- Weight
- 1.36 kg
- Colour
- Black
- Megapixel (approx.)
- 2.14 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- Power source type
- DC
- Brand
- Vaddio
- Category
- Video Conferencing Camera
- Model
- PrimeSHOT 10 HDMI
- Part numbers
- 999-30410-801W, 999-30410-001, 999-30410-001W, 999-30410-801
- EAN / UPC
- 840077508586, 840077508265, 840077508272, 840077508579
- Also known as
- Vaddio PrimeSHOT 10 HDMI
Specifications
57 specifications in 12 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.14 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 10x |
| Horizontal field of view (tele) | 3.1° |
| Horizontal field of view (wide) | 67° |
| Minimum illumination | 100 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture number of steps | 16 |
| White balance | Auto, Manual, One push |
| Focus adjustment | Auto/Manual |
| Wide Dynamic Range (WDR) | Yes |
| Back Light Compensation (BLC) | Yes |
| Number of camera presets | 16 |
| Gain control type | Auto/Manual |
| PTZ control | Yes |
| 3D NR (Noise Reduction) | Yes |
| Aspect ratio | 4:3, 16:9 |
| Maximum working distance (tele) | 100 cm |
| Minimum working distance (wide) | 1 cm |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Resolution at capture speed | 1920x1080@60fps |
| Supported video modes | 720p, 1080p |
| Video formats supported | H.264 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | 0 - 165° |
| Web-based management | Yes |
| Tilt speed (max) | 90 °/sec |
| Pan speed (max) | 90 °/sec |

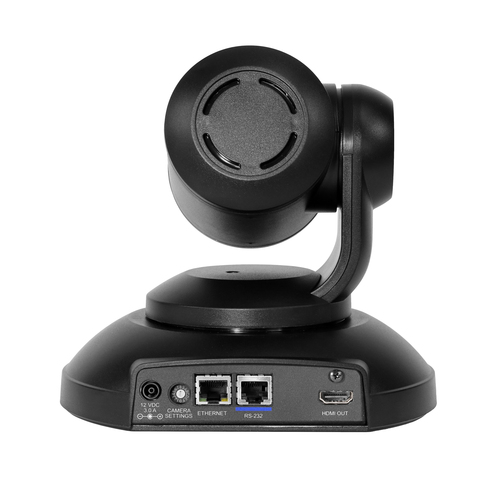

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC input voltage | 12 V |
| Input current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Performance
| Specification | Value |
|---|---|
| Remote control function | Yes |
| Certification | CE,FCC,TAA |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, TAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 154.9 mm |
| Depth | 139.7 mm |
| Height | 160 mm |
| Weight | 1.36 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.9 kg |
