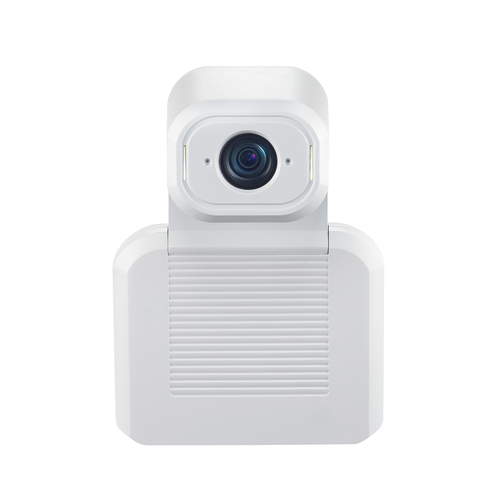

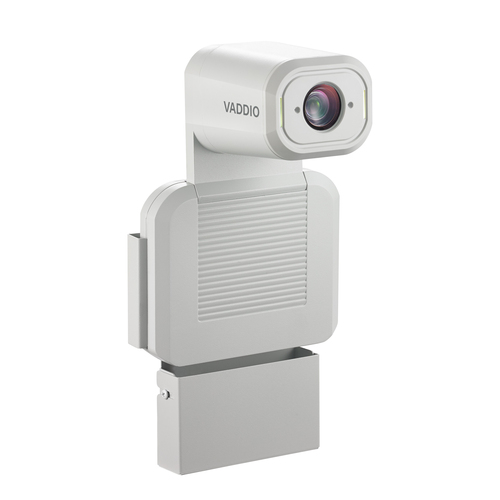

IntelliSHOT Auto-Tracking Camera
Model IntelliSHOTPart no. 999-21100-000WEAN 840077507138
54 specifications
- Weight1.93 kg
- ColourWhite
- Megapixel (approx.)8.51 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- Power source typePoE
Overview
- Weight
- 1.93 kg
- Colour
- White
- Megapixel (approx.)
- 8.51 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- Power source type
- PoE
- Brand
- Vaddio
- Category
- Video Conferencing Camera
- Model
- IntelliSHOT
- Part numbers
- 999-21100-000W, 999-21100-001W, 999-21100-001, 999-21100-000
- EAN / UPC
- 840077507138, 840077507152, 840077507145, 840077507121
- Also known as
- Vaddio IntelliSHOT Auto-Tracking Camera
Specifications
54 specifications in 13 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.51 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Effective sensor resolution | 8.57 MP |
| Combined zoom | 30x |
| Horizontal field of view | 70.2° |
| Horizontal field of view (wide) | 3.1° |
| Minimum illumination | 1.6 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| White balance | Auto, Manual, One push |
| Focus adjustment | Auto/Manual |
| Auto focusing (AF) modes | Auto, Manual, One Push Trigger |
| Wide Dynamic Range (WDR) | Yes |
| Number of camera presets | 16 |
| Gain control type | Auto/Manual |
| PTZ control | Yes |
| Aspect ratio | 3:2, 4:3, 16:9 |
| Maximum working distance (tele) | 8 cm |
| Minimum working distance (wide) | 8 cm |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 30 fps |
| HD type | Full HD |
| Supported video modes | 1080p |
| Video formats supported | H.264 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Tilt angle range | -20 - 30° |

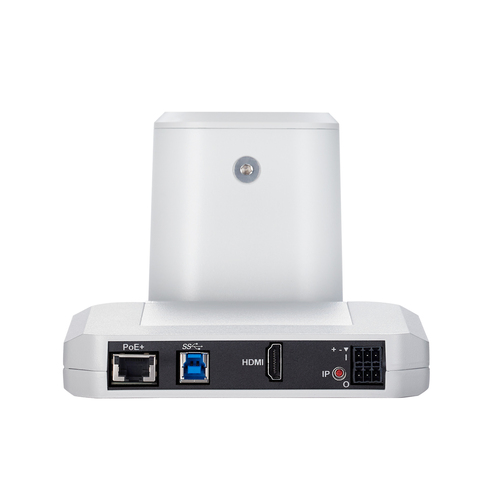

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Microphone sensitivity | 64.3 dB |
| Noise reduction | Yes |
Performance
| Specification | Value |
|---|---|
| Remote control function | Yes |
| Certification | CE,FCC,TAA |
Network
| Specification | Value |
|---|---|
| Network streaming | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45), USB |
| USB cable length | 1.8 m |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Packaging content | Cable cover 1.8m USB 3.0 cable, type A to B PoE+ power injector Wireless Remote 1m Cat-5e cable |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, TAA |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 152.4 mm |
| Depth | 114.3 mm |
| Height | 212.7 mm |
| Weight | 1.93 kg |
