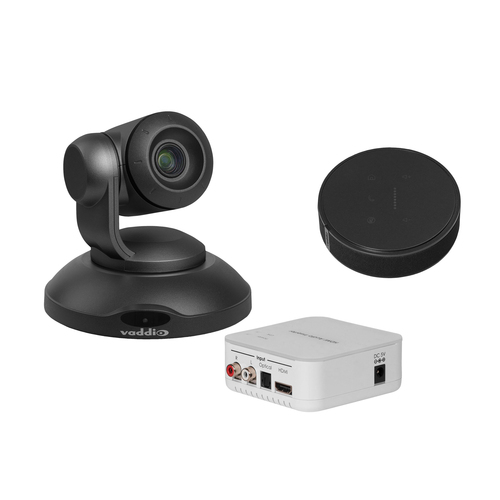

ConferenceSHOT AV
Model ConferenceSHOT AVPart no. 999-9995-001BEAN 840077506346
40 specifications
- Weight1.36 kg
- ColourBlack
- Megapixel (approx.)2.14 MP
- Maximum video resolution1920 x 1080 pixels
- Line-outYes
- Power source typePoE
Overview
- Weight
- 1.36 kg
- Colour
- Black
- Megapixel (approx.)
- 2.14 MP
- Maximum video resolution
- 1920 x 1080 pixels
- Line-out
- Yes
- Power source type
- PoE
- Brand
- Vaddio
- Category
- Video Conferencing Camera
- Model
- ConferenceSHOT AV
- Part number
- 999-9995-001B
- EAN / UPC
- 840077506346
- Also known as
- Vaddio ConferenceSHOT AV HD Conference Room System
Specifications
40 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.14 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 10x |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture number of steps | 16 |
| White balance | Auto, Manual, One push |
| Auto focusing (AF) modes | Auto, Manual |
| Maximum working distance (tele) | 100 cm |
| Minimum working distance (wide) | 1 cm |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -165 - 165° |
| Tilt speed (max) | 90 °/sec |
| Pan speed (max) | 90 °/sec |
| Country of origin | United States |
Ports & interfaces
| Specification | Value |
|---|---|
| Line-out | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power over Ethernet (PoE) voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Packaging content
| Specification | Value |
|---|---|
| USB cable length | 1.8 m |
| Mounting kit | Yes |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, TAA |
Performance
| Specification | Value |
|---|---|
| Certification | CE,FCC,TAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 154.9 mm |
| Depth | 139.7 mm |
| Height | 160 mm |
| Weight | 1.36 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 360 mm |
| Package depth | 460 mm |
| Package height | 360 mm |
| Package weight | 5.4 kg |
