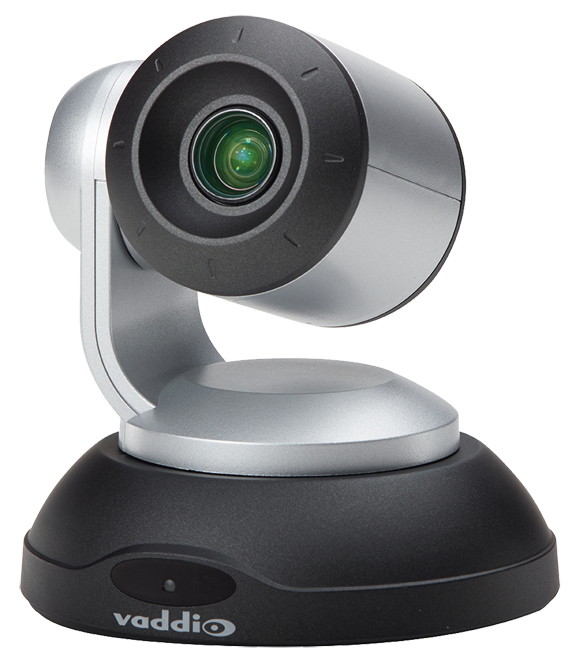

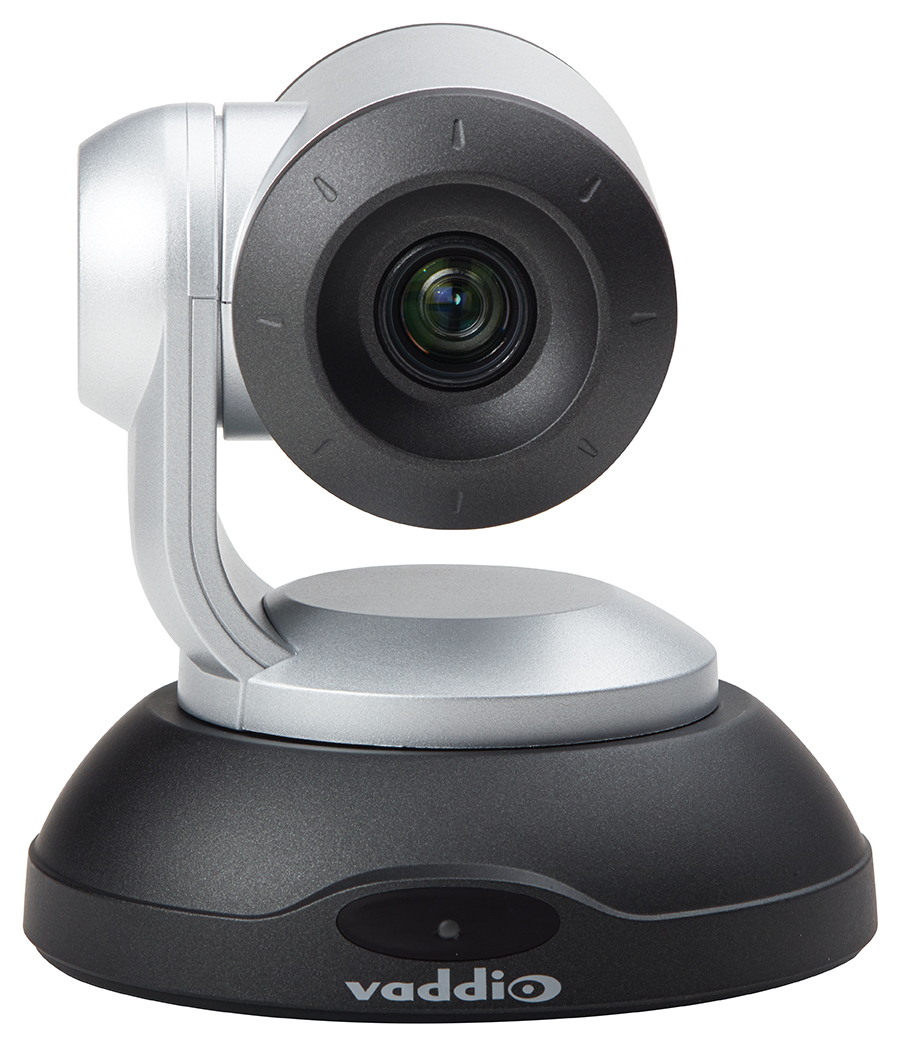

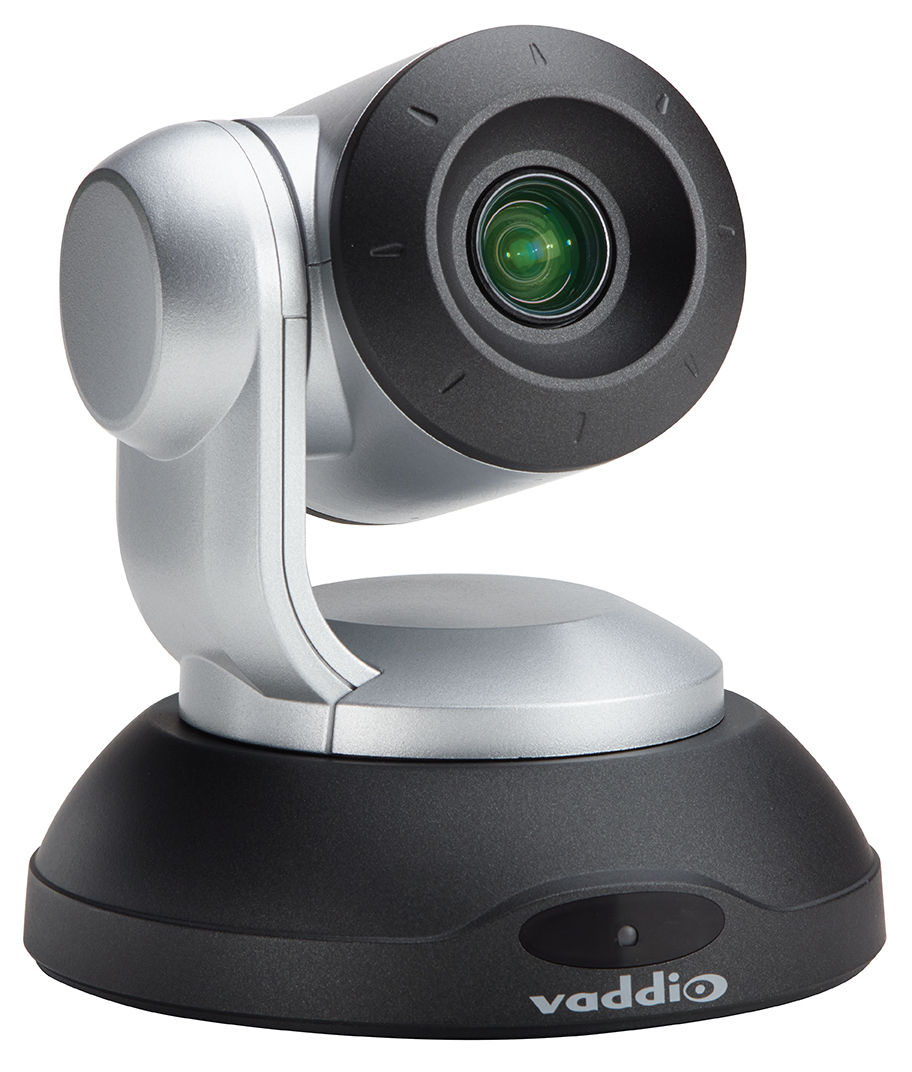

ConferenceSHOT 10
Model ConferenceSHOT 10Part no. 999-9990-001EAN 840077506322
52 specifications
- Weight1.36 kg
- ColourBlack, Silver
- Megapixel (approx.)2.38 MP
- Supported video modes1080i, 1080p
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
- DC input voltage12 V
Overview
- Weight
- 1.36 kg
- Colour
- Black, Silver
- Megapixel (approx.)
- 2.38 MP
- Supported video modes
- 1080i, 1080p
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 1
- DC input voltage
- 12 V
- Brand
- Vaddio
- Category
- Video Conferencing Camera
- Model
- ConferenceSHOT 10
- Part numbers
- 999-9990-001, 999-9990-001W, 999-9990-001B
- EAN / UPC
- 840077506322, 840077504816, 840077504823
- Also known as
- Vaddio ConferenceSHOT 10 2.38 MP Black, Silver CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
52 specifications in 9 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 2.14 MP |
| Optical zoom | 10x |
| Optical zoom (super-wide mode) | 11x |
| Focal length range | 3.8 - 38 mm |
| Horizontal field of view (tele) | 7.6° |
| Horizontal field of view (wide) | 67° |
| Focal length range (super-wide mode) | 3.8 - 41.8 mm |
| Wide end viewing angle (super-wide mode) | 74° |
| Minimum illumination | 1 lx |
| Tele end viewing angle (super-wide mode) | 7.6° |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture number of steps | 16 |
| Aperture range (F-F) | 1.8 - 3.4 |
| White balance | Auto, Manual, One push |
| Focus adjustment | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
| Maximum working distance (tele) | 100 cm |
| Minimum working distance (wide) | 1 cm |
| Sync system | Internal |
Video
| Specification | Value |
|---|---|
| Supported video modes | 1080i, 1080p |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Tilt angle range | -30 - 90° |
| Pan range | -165 - 165° |
| Web-based management | Yes |
| Tilt speed (max) | 90 °/sec |
| Tilt speed (min) | 90 °/sec |
| Pan speed (max) | 90 °/sec |
| Pan speed (min) | 90 °/sec |

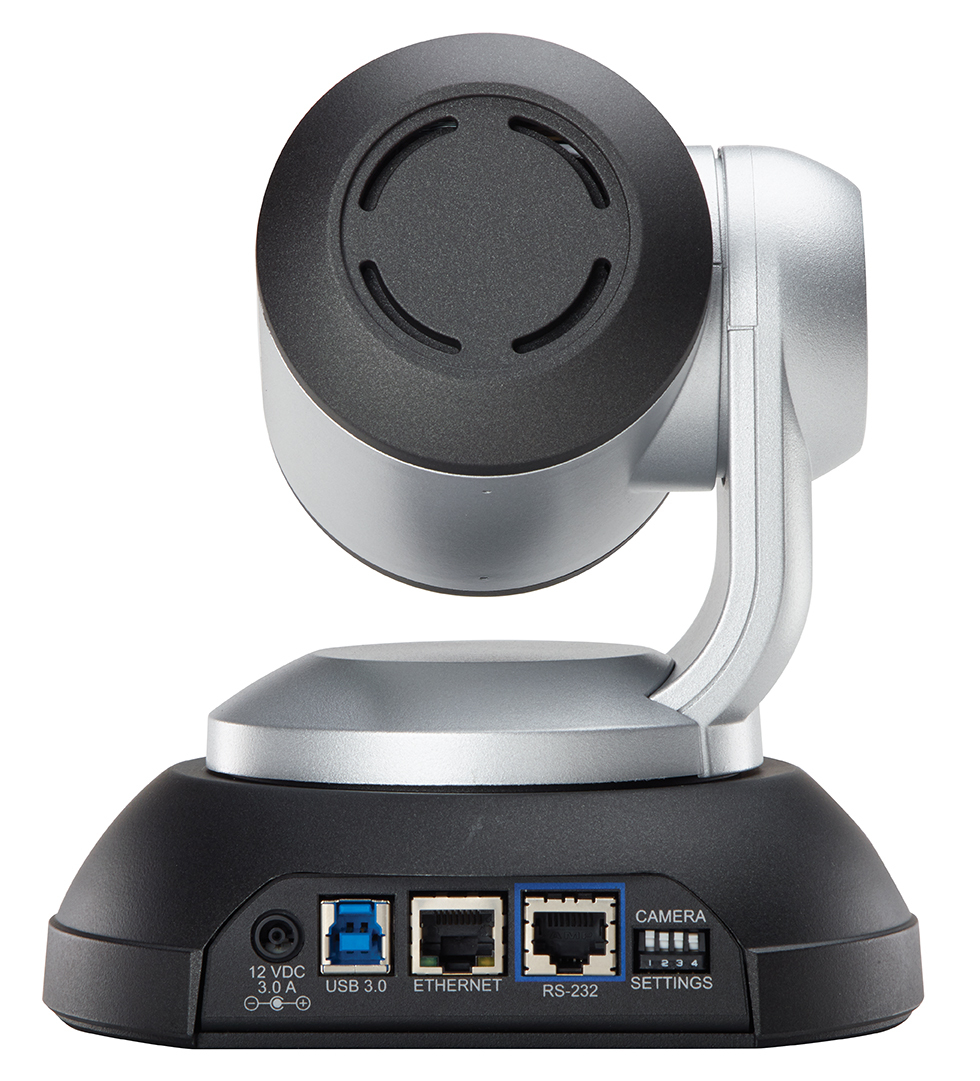

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 V |
| Input current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, USB |
| AC adapter included | Yes |
| Control adapter | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 145 mm |
| Height | 163 mm |
| Weight | 1.36 kg |
