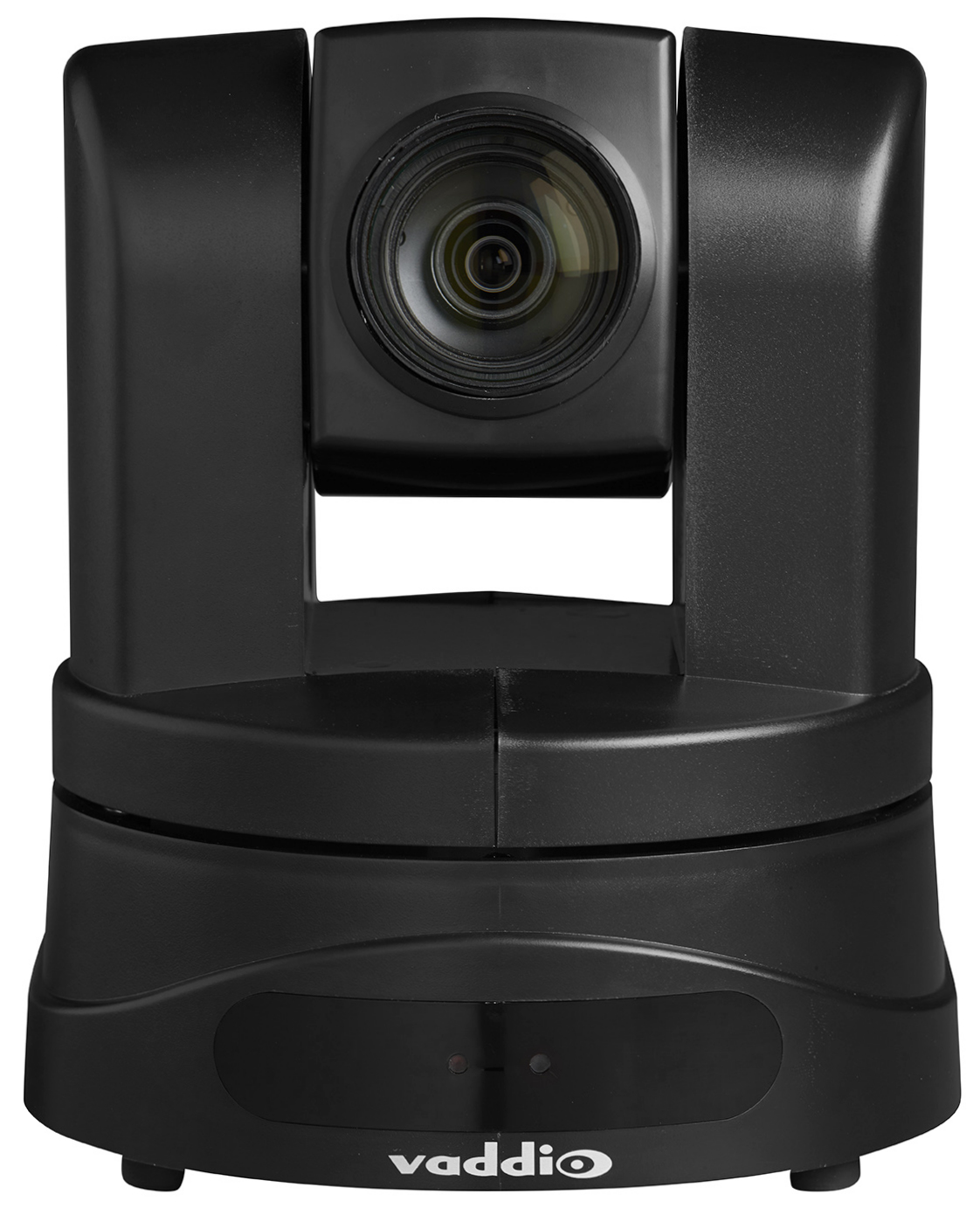

ClearVIEW HD-20SE
Model ClearVIEW HD-20SEPart no. 999-6980-000
31 specifications
- Weight2.63 kg
- ColourBlack
- Megapixel (approx.)2.38 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- Width169.4 mm
Overview
- Weight
- 2.63 kg
- Colour
- Black
- Megapixel (approx.)
- 2.38 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- Width
- 169.4 mm
- Brand
- Vaddio
- Category
- Video Conferencing Camera
- Model
- ClearVIEW HD-20SE
- Part number
- 999-6980-000
- Also known as
- Vaddio ClearVIEW HD-20SE 2.38 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
31 specifications in 5 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 2.14 MP |
| Optical zoom | 20x |
| Focal length range | 4.44 - 89 mm |
| Horizontal field of view (tele) | 3.47° |
| Horizontal field of view (wide) | 63° |
| Minimum illumination | 0.03 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture range (F-F) | 1.6 - 3.4 |
| Focus adjustment | Auto |
| Number of camera presets | 16 |
| PTZ control | Yes |
| Aspect ratio | 16:9 |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Supported video modes | 720p, 1080i, 1080p |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Stand |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |

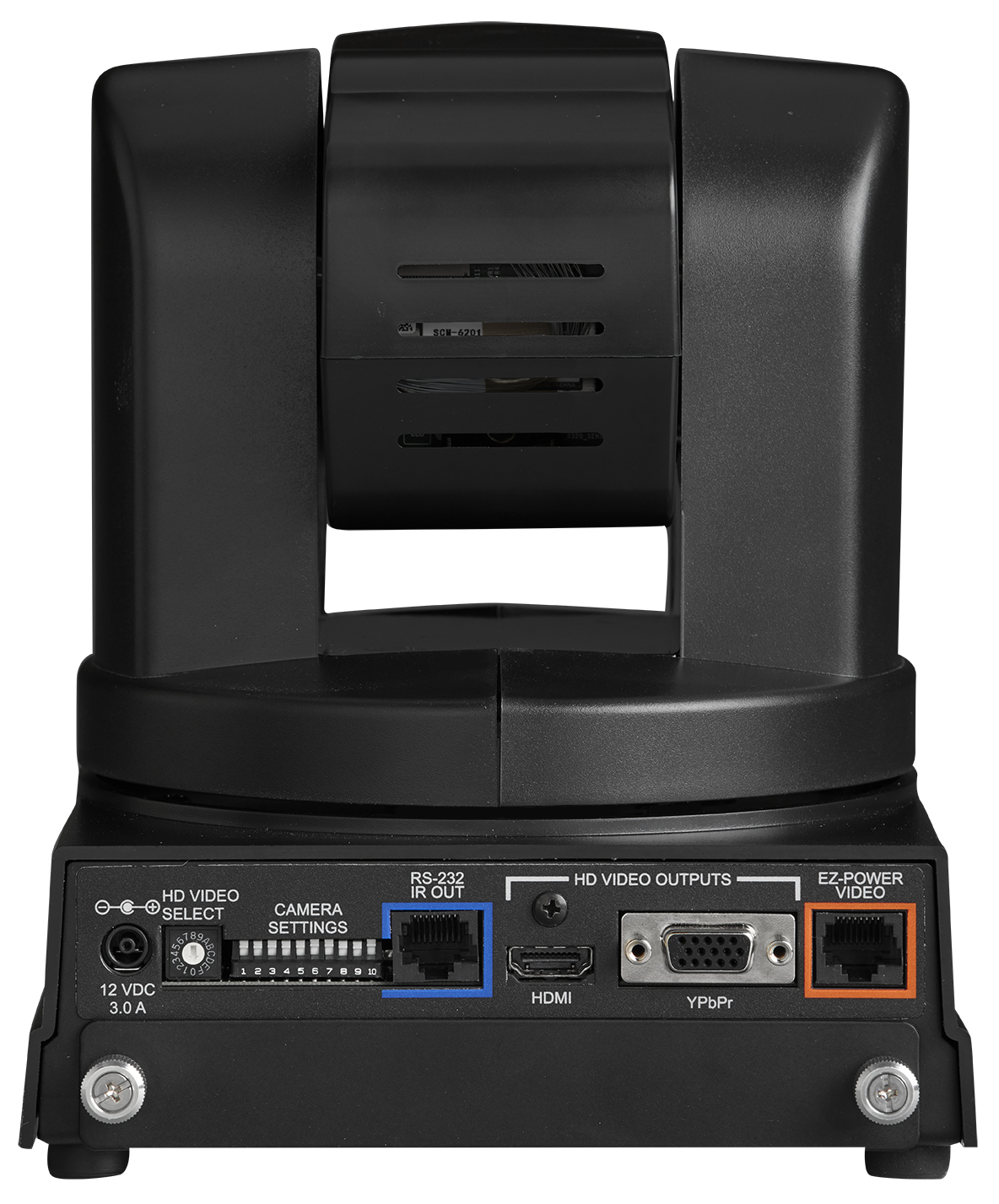

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| RS-232 output ports | 1 |
| DC-in jack | Yes |
| Component video (YPbPr/YCbCr) in | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 169.4 mm |
| Depth | 179.2 mm |
| Height | 198.3 mm |
| Weight | 2.63 kg |
