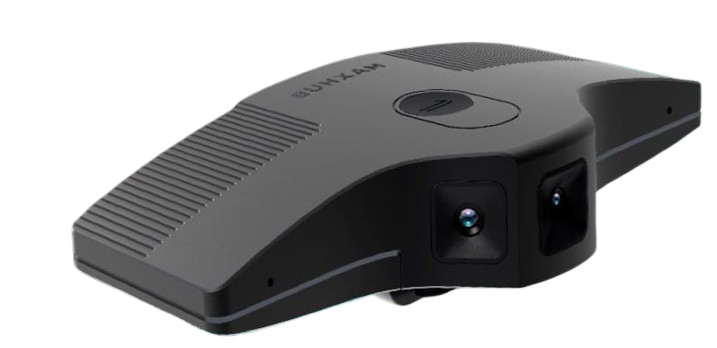

UCM31 video conferencing camera
12 MP Black 3840 x 2160 pixels 30 fps
Model UCM31
20 specifications
- ColourBlack
- Megapixel (approx.)12 MP
- Maximum video resolution3840 x 2160 pixels
- Operating temperature (T-T)0 - 40 °C
- Built-in microphoneYes
- Width144.1 mm
Overview
- Colour
- Black
- Megapixel (approx.)
- 12 MP
- Maximum video resolution
- 3840 x 2160 pixels
- Operating temperature (T-T)
- 0 - 40 °C
- Built-in microphone
- Yes
- Width
- 144.1 mm
- Brand
- MAXHUB
- Category
- Video Conferencing Camera
- Model
- UCM31
- Part number
- UCM31
- Also known as
- MAXHUB UCM31 video conferencing camera 12 MP Black 3840 x 2160 pixels 30 fps
Specifications
20 specifications in 7 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 12 MP |
| Camera type | Single camera |
| Field of view (FOV) angle | 180° |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Video formats supported | H.264, MJPG, YUY2 |
| Supported graphics resolutions | 320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 800 x 600 (SVGA), 960 x 540, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 5000 m |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
Performance
| Specification | Value |
|---|---|
| Bluetooth | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144.1 mm |
| Depth | 73 mm |
| Height | 25.7 mm |
