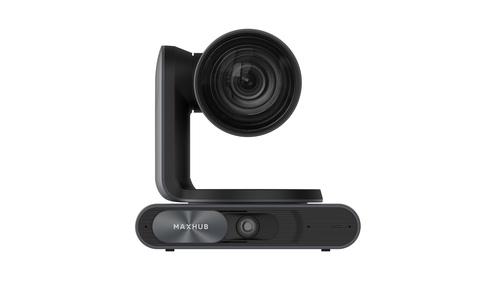

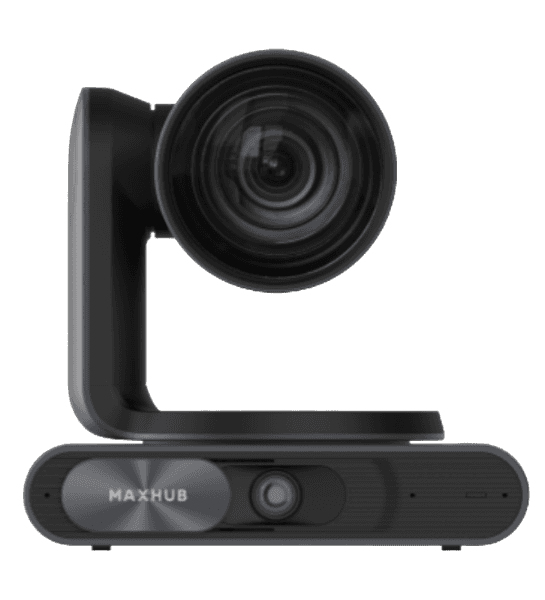

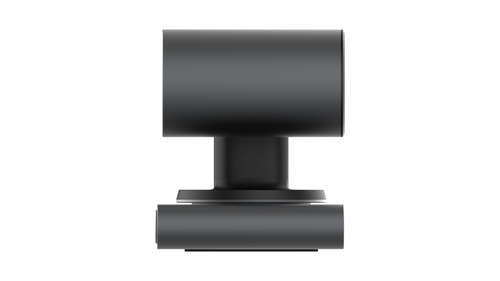

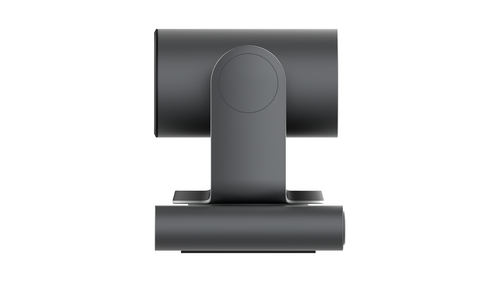

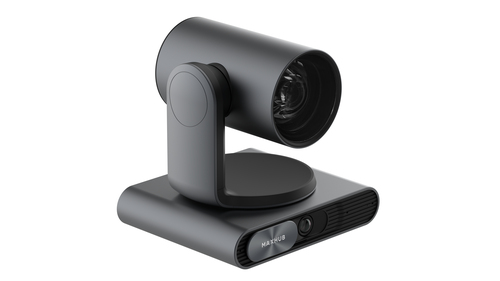

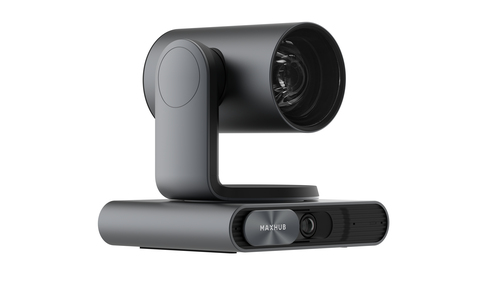

UC P30
Model UC P30EAN 6927433605968
31 specifications
- Weight2.3 kg
- Megapixel (approx.)8.42 MP
- Maximum video resolution3840 x 2160 pixels
- Tilt angle range90 - 90°
- HDMI ports quantity1
- DC input voltage12 V
Overview
- Weight
- 2.3 kg
- Megapixel (approx.)
- 8.42 MP
- Maximum video resolution
- 3840 x 2160 pixels
- Tilt angle range
- 90 - 90°
- HDMI ports quantity
- 1
- DC input voltage
- 12 V
- Brand
- MAXHUB
- Category
- Video Conferencing Camera
- Model
- UC P30
- Part number
- UC P30
- EAN / UPC
- 6927433605968
- Also known as
- MAXHUB UC P30 4K Microsoft Teams Rooms PTZ Camera
Specifications
31 specifications in 7 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.42 MP |
| Camera type | Single camera |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 3x |
| Field of view (FOV) angle | 90° |
| Focal length range (normal mode) | 4.8 - 57.8 mm |
| Aperture range (F-F) | 1.8 - 3.6 |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
Design
| Specification | Value |
|---|---|
| Tilt angle range | 90 - 90° |
| Pan range | 170 - 170° |

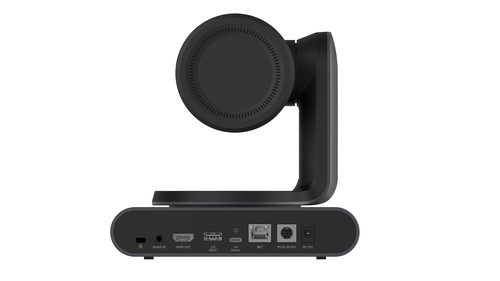

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| RS-232 output ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 22 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 181 mm |
| Depth | 151.5 mm |
| Height | 178.4 mm |
| Weight | 2.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 295 mm |
| Package depth | 245 mm |
| Package height | 243 mm |
| Package weight | 3.95 kg |
