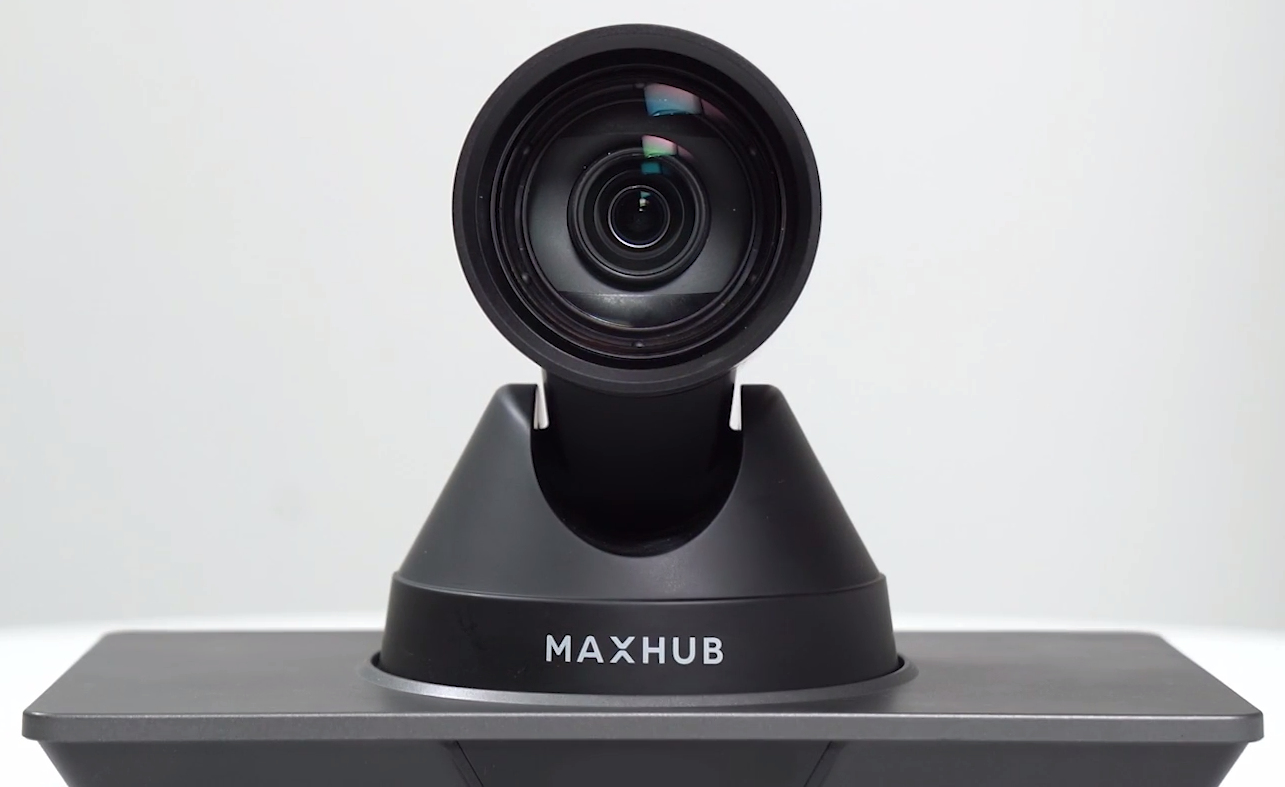

UC P25
Model UC P25Part no. UCP25
51 specifications
- Weight1.35 kg
- ColourBlack
- Megapixel (approx.)8.51 MP
- Maximum video resolution3840 x 2160 pixels
- HDMI ports quantity1
- Power source typeDC
Overview
- Weight
- 1.35 kg
- Colour
- Black
- Megapixel (approx.)
- 8.51 MP
- Maximum video resolution
- 3840 x 2160 pixels
- HDMI ports quantity
- 1
- Power source type
- DC
- Brand
- MAXHUB
- Category
- Video Conferencing Camera
- Model
- UC P25
- Part number
- UCP25
- Also known as
- MAXHUB UC P25 8.51 MP Black 3840 x 2160 pixels 30 fps CMOS
Specifications
51 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.51 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical zoom | 12x |
| Digital zoom | 16x |
| Horizontal field of view | 71° |
| Vertical field of view | 42.7° |
| Minimum illumination | 0.5 lx |
| White balance | Auto, Indoor, Manual, Outdoor, Push |
| PTZ control | Yes |
| PTZ protocols | Pelco-P/D, VISCA |
| 3D NR (Noise Reduction) | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 3840x2160@25fps, 3840x2160@30fps |
| Supported video modes | 720p, 1080i, 1080p |
| Video formats supported | H.264, H.265 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Stand/Wall mounting |
| Tilt angle range | 0.5 - 15° |
| Pan range | 1.6 - 76° |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 1 |
| BNC output ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC input voltage | 12 V |
| Power consumption (max) | 12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Linux operating systems supported | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bit rate range | 96 - 128 Kbit/s |
| Supported network protocols | TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
Packaging content
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Remote control included | Yes |
| Cables included | USB |
| Mounting kit | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 149 mm |
| Depth | 167 mm |
| Height | 238 mm |
| Weight | 1.35 kg |
