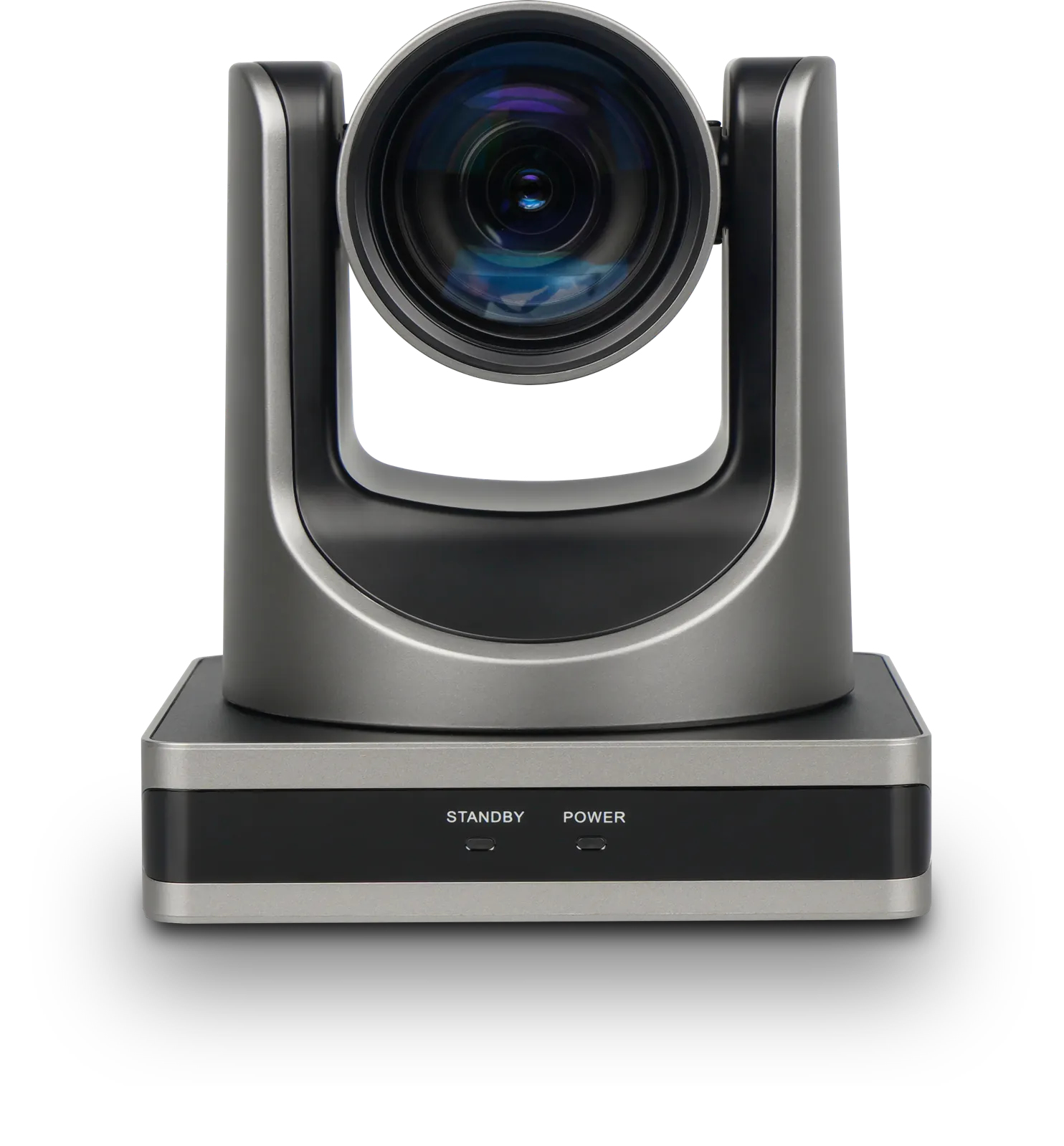

UC P15
Model UC P15EAN 6927433603902
53 specifications
- Weight1.41 kg
- ColourGrey
- Megapixel (approx.)2.07 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI version1.4
- Power source typeDC
Overview
- Weight
- 1.41 kg
- Colour
- Grey
- Megapixel (approx.)
- 2.07 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI version
- 1.4
- Power source type
- DC
- Brand
- MAXHUB
- Category
- Video Conferencing Camera
- Model
- UC P15
- Part number
- UC P15
- EAN / UPC
- 6927433603902
- Also known as
- MAXHUB UC P15 video conferencing camera 2.07 MP Grey 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
53 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.07 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 12x |
| Digital zoom | 16x |
| Horizontal field of view | 72.5° |
| Vertical field of view | 44.8° |
| Minimum illumination | 0.5 lx |
| White balance | Auto, Indoor, Manual, One push, Outdoor |
| PTZ control | Yes |
| PTZ protocols | ONVIF |
| 3D NR (Noise Reduction) | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Resolution at capture speed | 1280x720@50fps, 1280x720@60fps, 1920x1080@50fps, 1920x1080@60fps |
| Supported video modes | 720p, 1280p |
| Video formats supported | H.264 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Mounting type | Stand/Wall mounting |
| Tilt angle range | 2.7 - 31.5° |
| Pan range | 2.7 - 35.7° |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-C ports quantity | 1 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 12 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Linux operating systems supported | Yes |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | USB |
| Screws included | Yes |
| Mounting kit | Yes |
Network
| Specification | Value |
|---|---|
| Bit rate range | 98 - 256 Kbit/s |
| Supported network protocols | TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144 mm |
| Depth | 167.9 mm |
| Height | 144 mm |
| Weight | 1.41 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 250 mm |
| Package height | 230 mm |
| Package weight | 2.5 kg |
