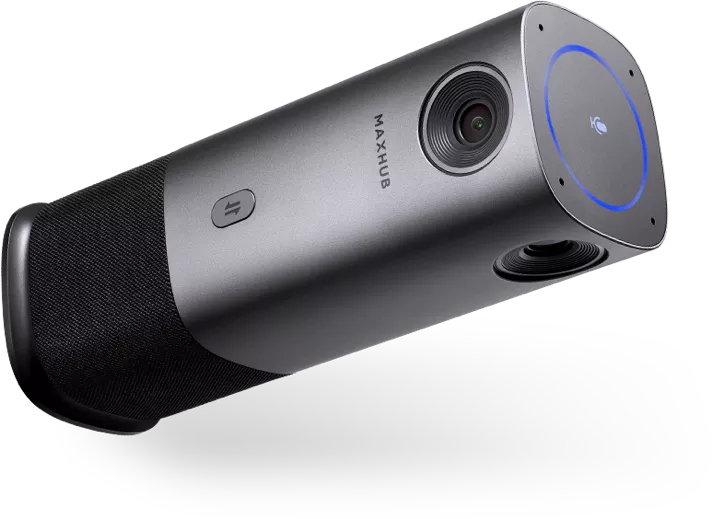

MAXHUB UC M40: Full Specifications

Overview

Weight: 450 g
Colour: Black, Grey
Megapixel (approx.): 5 MP
Maximum video resolution: 4992 x 928 pixels
USB 2.0 Type-C ports quantity: 1
Operating current: 1 A

Brand: MAXHUB
Category: Video Conferencing Camera
Model: UC M40
Part numbers: UCM40, UC M40
EAN / UPC: 5715063106068, 6927433602721, 6927433602998
Also known as: MAXHUB UC M40 5 MP Black, Grey 4992 x 928 pixels 30 fps CMOS 25.4 / 2.7 mm (1 / 2.7")

Specifications

46 specifications in 12 groups

Camera

Specification	Value
Megapixel (approx.)	5 MP
Sensor type	CMOS
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Field of view (FOV) angle	360°
Horizontal field of view	111°
Vertical field of view	85°
Signal-to-Noise Ratio (SNR)	65 dB
F-number (relative aperture)	2.5
PTZ protocols	UVC
3D NR (Noise Reduction)	Yes

Video

Specification	Value
Maximum video resolution	4992 x 928 pixels
Maximum frame rate	30 fps
Video formats supported	M-JPEG, YUY2
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440

Design

Specification	Value
Product colour	Black, Grey
LED indicators	Power

Ports & interfaces

Specification	Value
USB 2.0 Type-C ports quantity	1
DC-in jack	Yes

Power

Specification	Value
Operating current	1 A
Operating voltage	12 V
Power consumption (max)	8 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Mobile operating systems supported	Android
Linux operating systems supported	Yes

Audio

Specification	Value
Built-in microphone	Yes
Number of microphone arrays	4
Microphone frequency response	200 - 8000 Hz
Built-in speaker(s)	Yes
Speaker frequency range	200 - 8000 Hz
Microphone pick-up range	5 m

Performance

Specification	Value
Auto framing	Yes
Auto-tracking	Yes
Tracking modes	Presenter mode

Packaging content

Specification	Value
Cables included	USB
AC adapter included	Yes
Quick start guide	Yes

Weight & dimensions

Specification	Value
Width	165 mm
Depth	165 mm
Height	235 mm
Weight	450 g

Packaging data

Specification	Value
Package width	203 mm
Package depth	203 mm
Package height	305 mm
Package weight	1.11 kg
