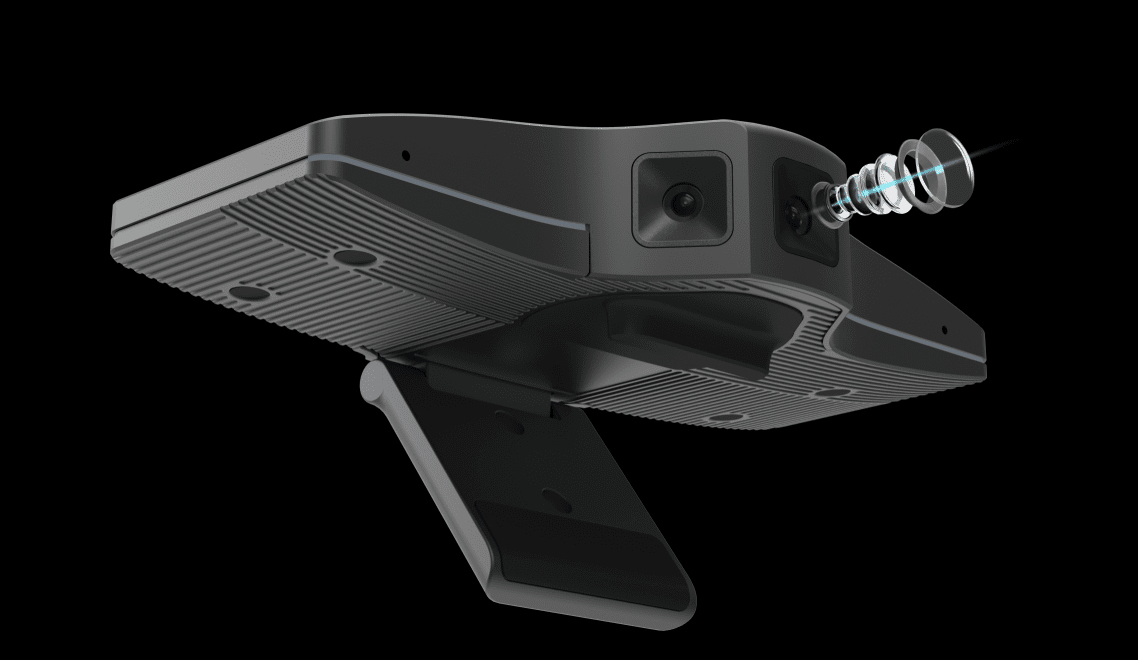

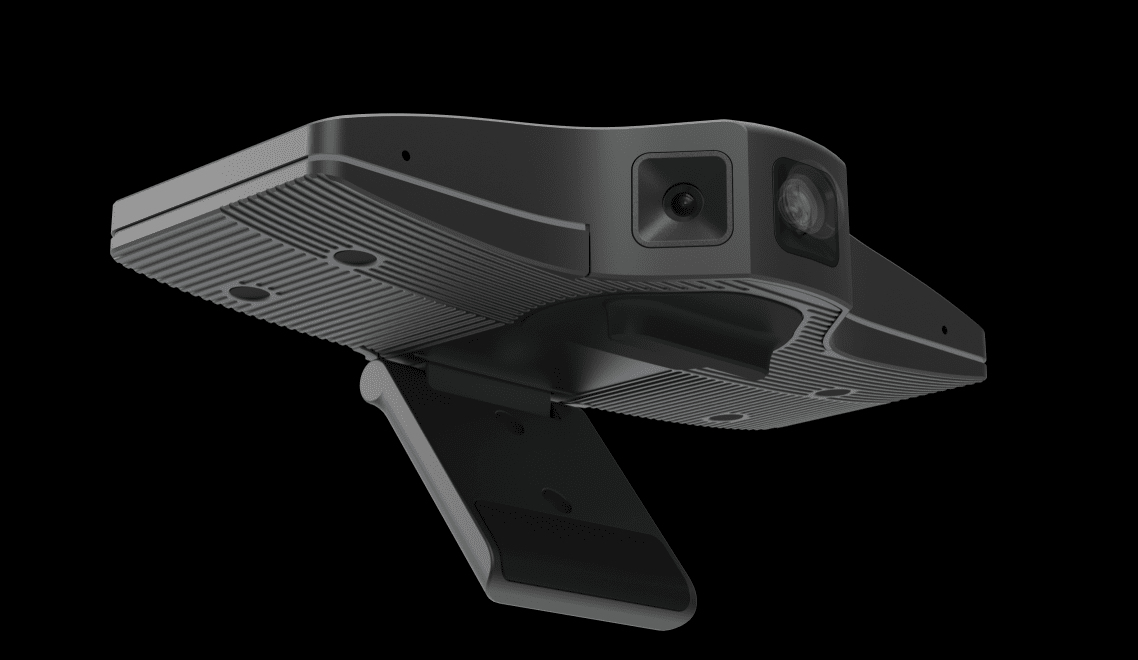

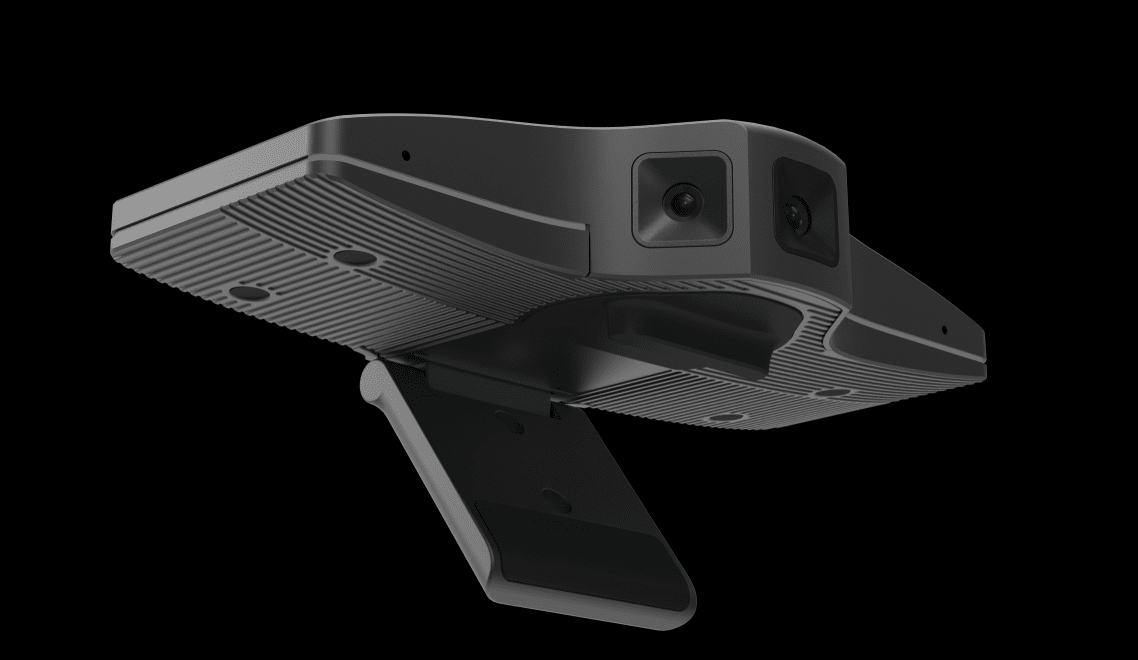

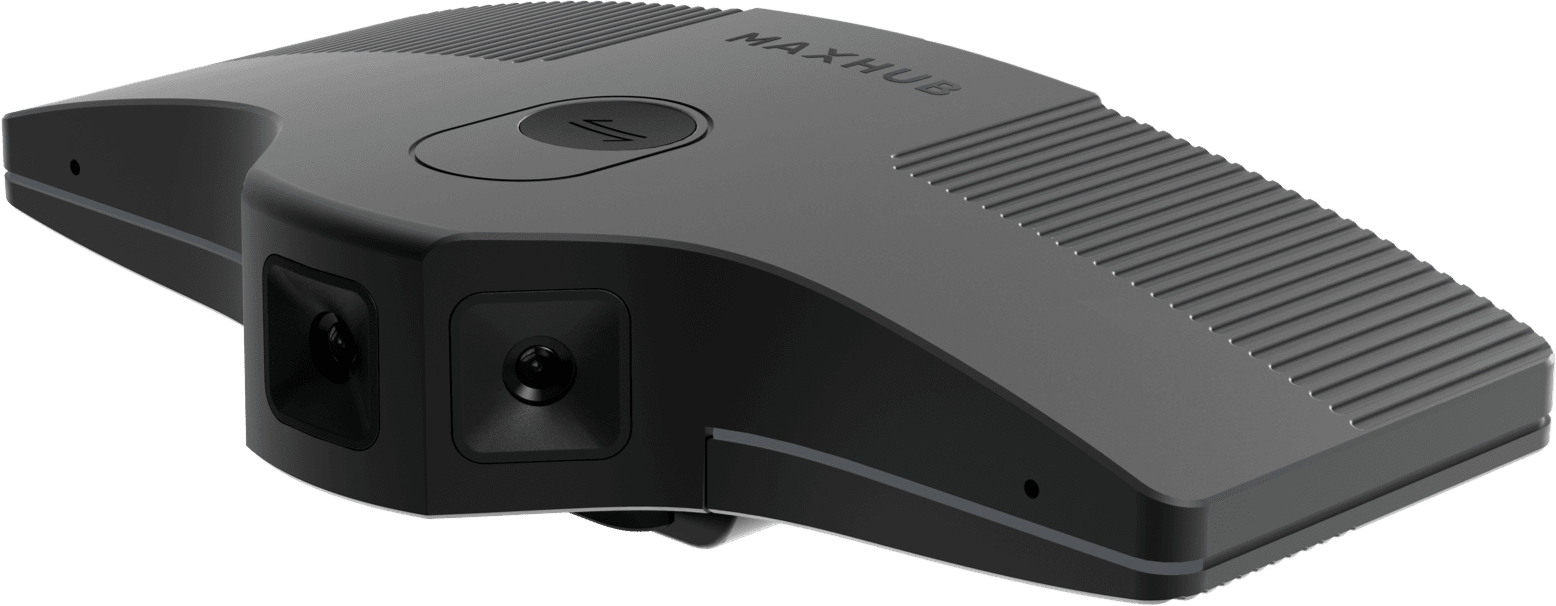

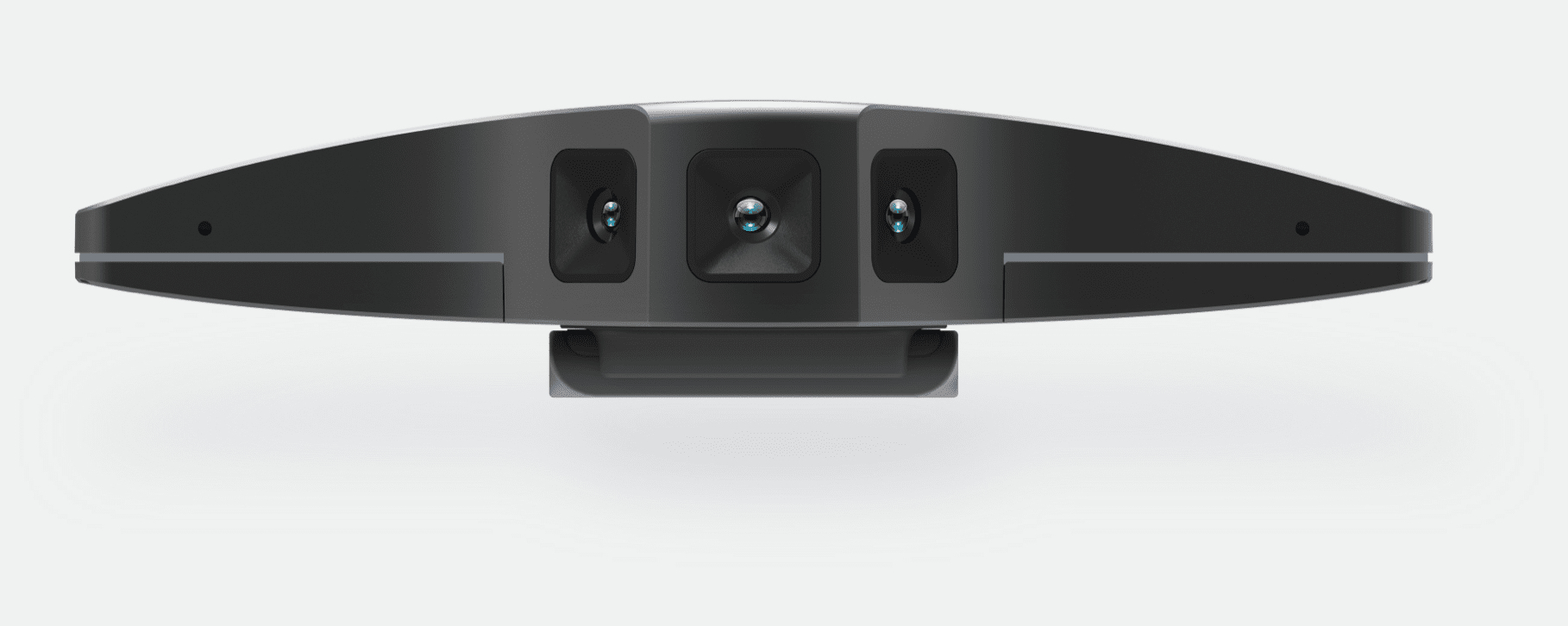

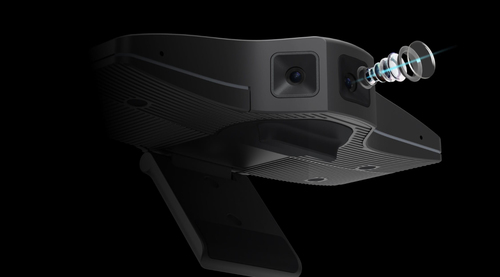

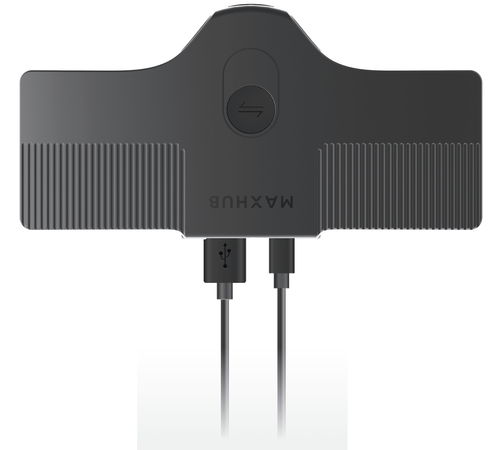

UC M31
Model UC M31EAN 5715063106082
31 specifications
- Weight220 g
- ColourBlack
- Megapixel (approx.)12 MP
- Maximum video resolution3840 x 2160 pixels
- USB Type-C connectorYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 220 g
- Colour
- Black
- Megapixel (approx.)
- 12 MP
- Maximum video resolution
- 3840 x 2160 pixels
- USB Type-C connector
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- MAXHUB
- Category
- Video Conferencing Camera
- Model
- UC M31
- Part number
- UC M31
- EAN / UPC
- 5715063106082, 6927433602974, 6927433602981
- Also known as
- MAXHUB UC M31 video conferencing camera 12 MP Black 3840 x 2160 pixels 30 fps
Specifications
31 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 12 MP |
| Camera type | Triple camera |
| Field of view (FOV) angle | 180° |
| Minimum illumination | 10 lx |
| F-number (relative aperture) | 2.2 |
| Focus adjustment | Manual |
| Closest focusing distance | 1.5 m |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Video formats supported | H.264, MJPG, YUY2 |
| Supported graphics resolutions | 320 x 240, 352 x 288, 480 x 270, 640 x 360, 640 x 480 (VGA), 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA), 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-C connector | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Microphone pick-up range | 4 m |
Performance
| Specification | Value |
|---|---|
| Auto-tracking | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 146 mm |
| Depth | 74.2 mm |
| Height | 32.1 mm |
| Weight | 220 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 244 mm |
| Package depth | 543 mm |
| Package height | 390 mm |
| Package weight | 551 g |
