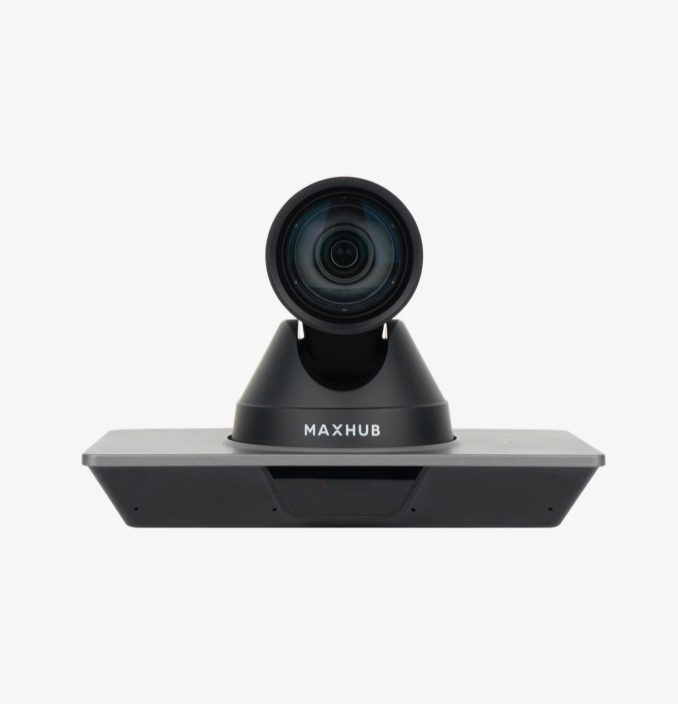

P25 8 MP Black 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.5 mm (1 / 2.5")
Model P25Part no. UC P25EAN 5715063224854
72 specifications
- Weight1.35 kg
- ColourBlack
- Megapixel (approx.)8 MP
- Maximum video resolution3840 x 2160 pixels
- HDMI ports quantity1
- Power source typeDC
Overview
- Weight
- 1.35 kg
- Colour
- Black
- Megapixel (approx.)
- 8 MP
- Maximum video resolution
- 3840 x 2160 pixels
- HDMI ports quantity
- 1
- Power source type
- DC
- Brand
- MAXHUB
- Category
- Video Conferencing Camera
- Model
- P25
- Part number
- UC P25
- EAN / UPC
- 5715063224854, 6927433603377
- Also known as
- MAXHUB P25 8 MP Black 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.5 mm (1 / 2.5")
Specifications
72 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 16x |
| Field of view (FOV) angle | 82.8° |
| Focal length range | 4.4 - 52.8 mm |
| Horizontal field of view | 71° |
| Vertical field of view | 42.7° |
| Minimum illumination | 0.5 lx |
| Aperture range (F-F) | 1.8 - 2.6 |
| Wide Dynamic Range (WDR) | Yes |
| Number of camera presets | 255 |
| Gain control type | Auto/Manual |
| PTZ control | Yes |
| PTZ protocols | UVC, ONVIF, Pelco-P/D, VISCA |
| 3D NR (Noise Reduction) | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| HD type | 4K Ultra HD |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240, 480 x 320, 640 x 360, 640 x 480 (VGA), 720 x 480, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 30° |
| Pan range | -170 - 170° |
| Tilt speed (max) | 15 °/sec |
| Tilt speed (min) | 0.5 °/sec |
| Pan speed (max) | 76 °/sec |
| Pan speed (min) | 1.6 °/sec |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 1 |
| BNC output ports | 1 |
| RS-232 ports | 2 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| VISCA input ports | 1 |
| VISCA output ports | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Streaming capability | Yes |
| Bit rate range | 96 - 128 Kbit/s |
| Supported protocols | TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
Performance
| Specification | Value |
|---|---|
| Remote control function | Yes |
| Remote control type | IR |
| Plug and Play | Yes |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | USB |
| USB cable length | 2 m |
| Screws included | Yes |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 238 mm |
| Depth | 167 mm |
| Height | 149 mm |
| Weight | 1.35 kg |
