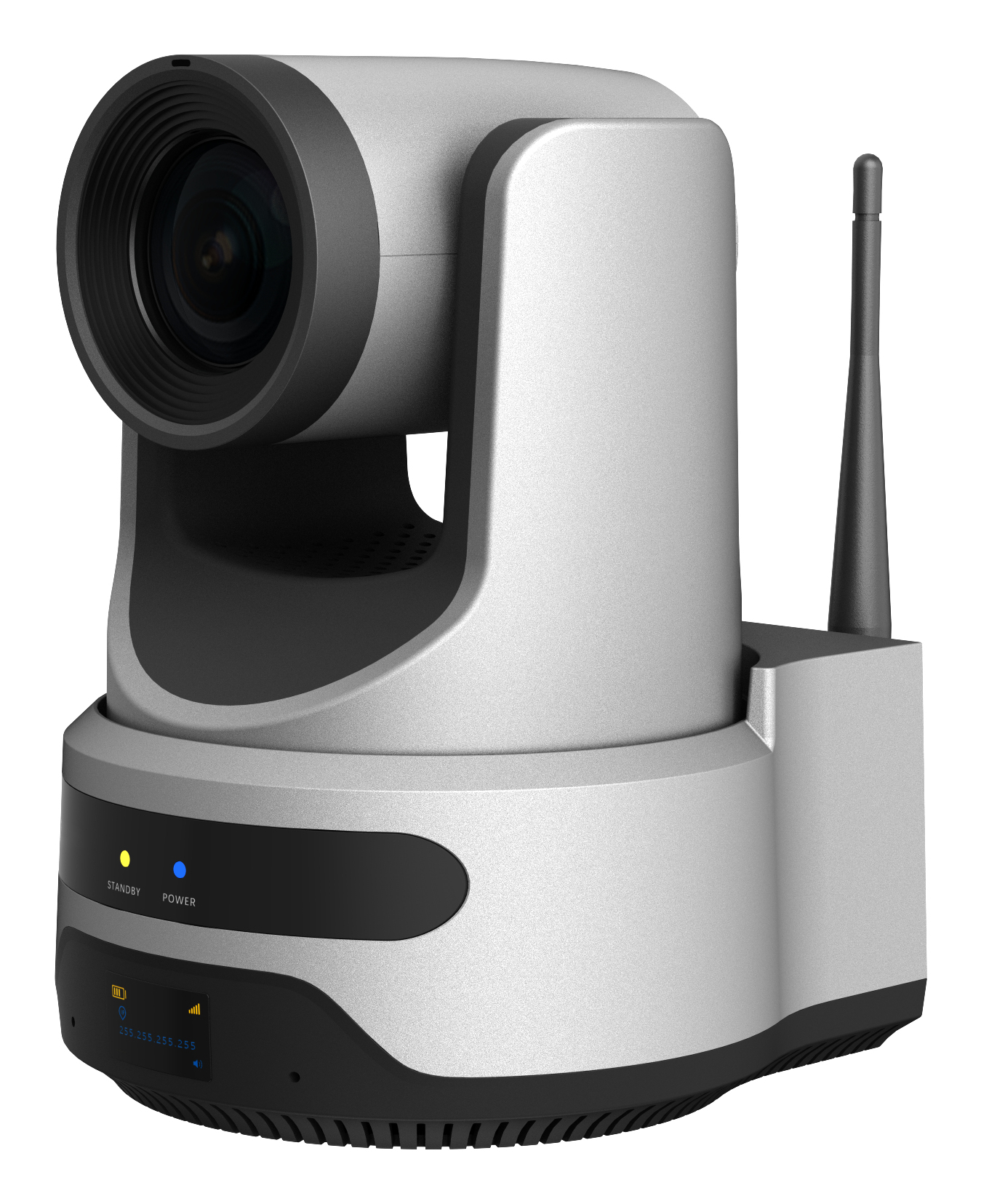

Wireless PTZ Camera EP50
Model EP50EAN 6927433610436
47 specifications
- Battery9480 mAh
- Weight1.9 kg
- ColourGrey
- Camera typeSingle camera
- Maximum video resolution3840 x 2160 pixels
- HDMI ports quantity1
Overview
- Battery
- 9480 mAh
- Weight
- 1.9 kg
- Colour
- Grey
- Camera type
- Single camera
- Maximum video resolution
- 3840 x 2160 pixels
- HDMI ports quantity
- 1
- Brand
- MAXHUB
- Category
- Video Conferencing Camera
- Model
- EP50
- Part number
- EP50
- EAN / UPC
- 6927433610436
- Also known as
- MAXHUB Wireless PTZ Camera EP50
Specifications
47 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 20x |
| Combined zoom | 40x |
| Focal length range | 6.25 - 125 mm |
| Horizontal field of view | 60° |
| Vertical field of view | 35.7° |
| Minimum illumination | 0.5 lx |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Progressive scan | Yes |
| White balance | Auto, Indoor, Manual, Outdoor |
| PTZ control | Yes |
| 3D NR (Noise Reduction) | Yes |
| Fastest camera shutter speed | 1/10000 s |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 2560x1440@30fps, 3840x2160@30fps |
| Video formats supported | H.264, MJPG, YUY2 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| USB Type-C connector | Yes |
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC input voltage | 12 V |
| Input current | 3 A |
| Power consumption (max) | 12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Linux operating systems supported | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| AC adapter included | Yes |
| Quick start guide | Yes |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 9480 mAh |
Network
| Specification | Value |
|---|---|
| Supported network protocols | TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, UDP, etc |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 295 mm |
| Depth | 245 mm |
| Height | 245 mm |
| Weight | 1.9 kg |
