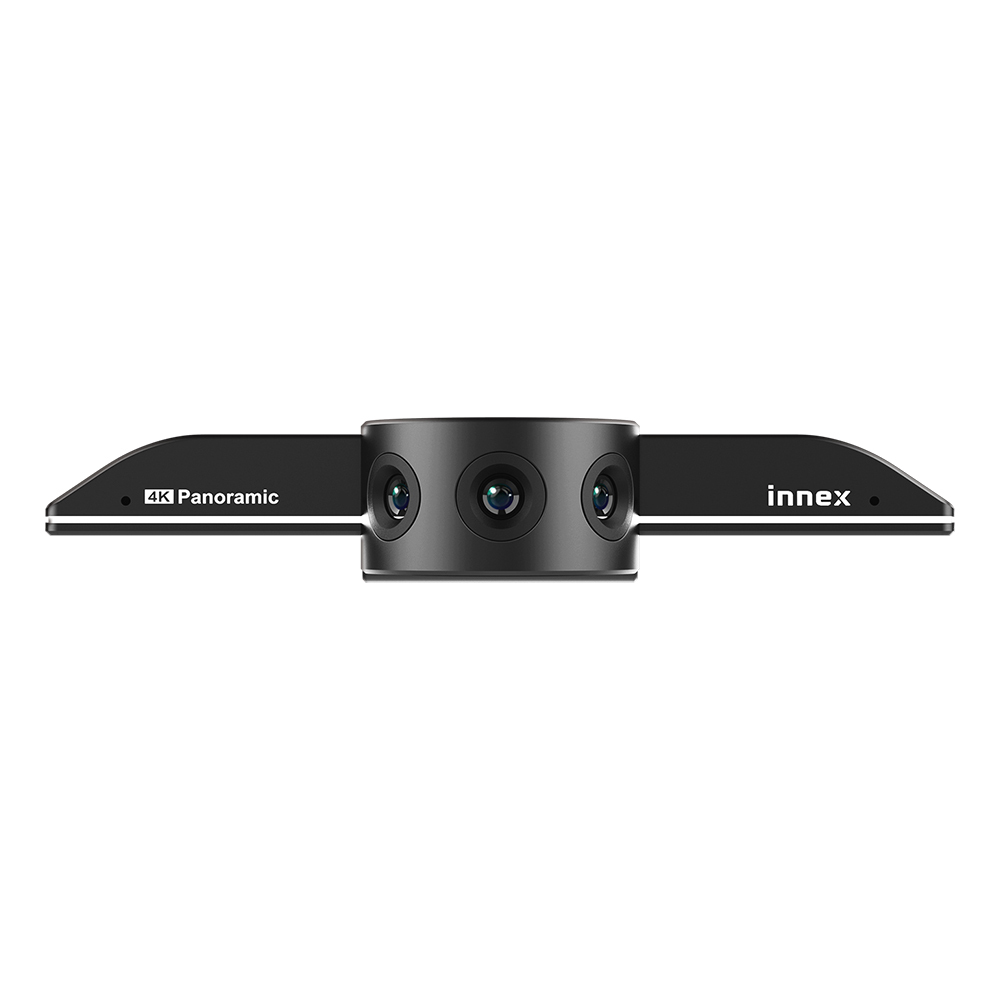

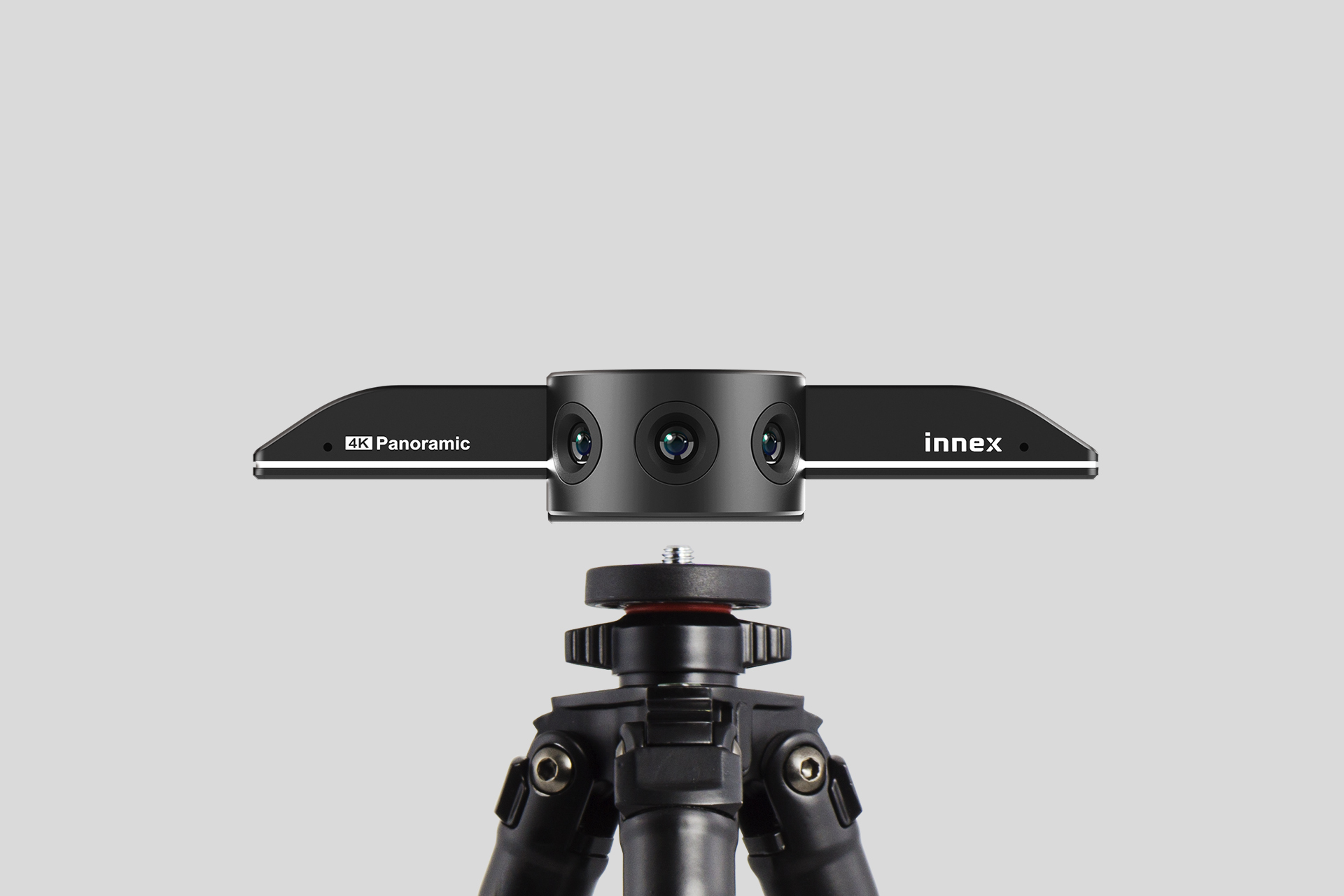

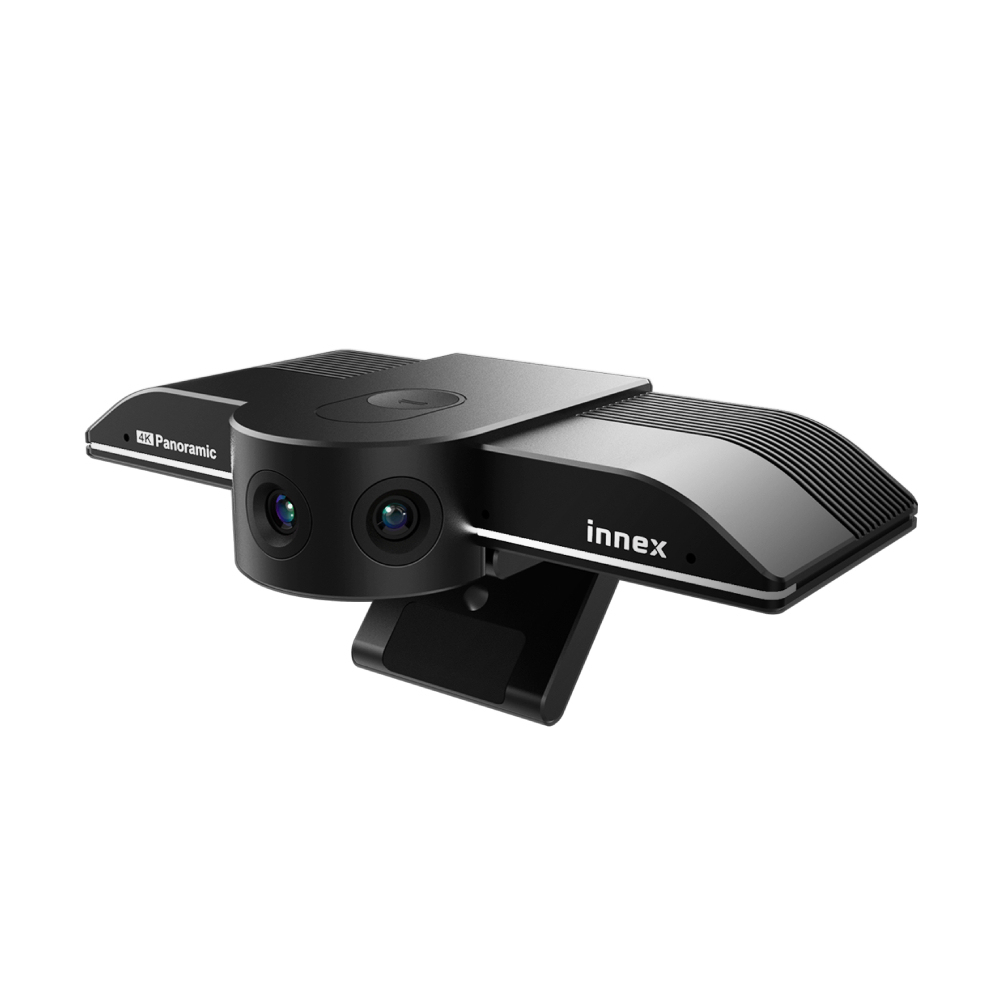

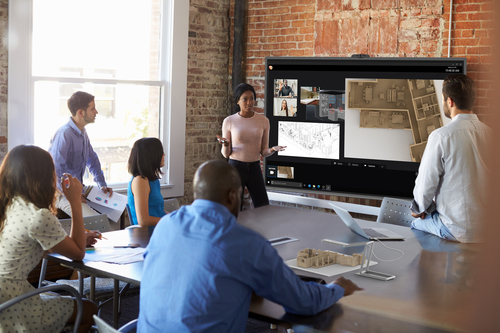

C830 video conferencing camera
12 MP Black 3840 x 2160 pixels 30 fps CMOS
Model C830EAN 4711203040071
41 specifications
- Weight209 g
- ColourBlack
- Megapixel (approx.)12 MP
- Maximum video resolution3840 x 2160 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
- Power source typeUSB
Overview
- Weight
- 209 g
- Colour
- Black
- Megapixel (approx.)
- 12 MP
- Maximum video resolution
- 3840 x 2160 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Power source type
- USB
- Brand
- Innex
- Category
- Video Conferencing Camera
- Model
- C830
- Part number
- C830
- EAN / UPC
- 4711203040071
- Also known as
- Innex C830 video conferencing camera 12 MP Black 3840 x 2160 pixels 30 fps CMOS
Specifications
41 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 12 MP |
| Camera type | Triple camera |
| Sensor type | CMOS |
| Field of view (FOV) angle | 180° |
| Horizontal field of view | 170° |
| Vertical field of view | 90° |
| Closest focusing distance | 1 m |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Supported video modes | 360p, 480p, 540p, 576p, 720p, 2160p |
| Video formats supported | H.264, MJPG, YUV2 |
| Supported graphics resolutions | 320 x 240, 352 x 288, 480 x 270, 640 x 360, 640 x 480 (VGA), 960 x 540, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

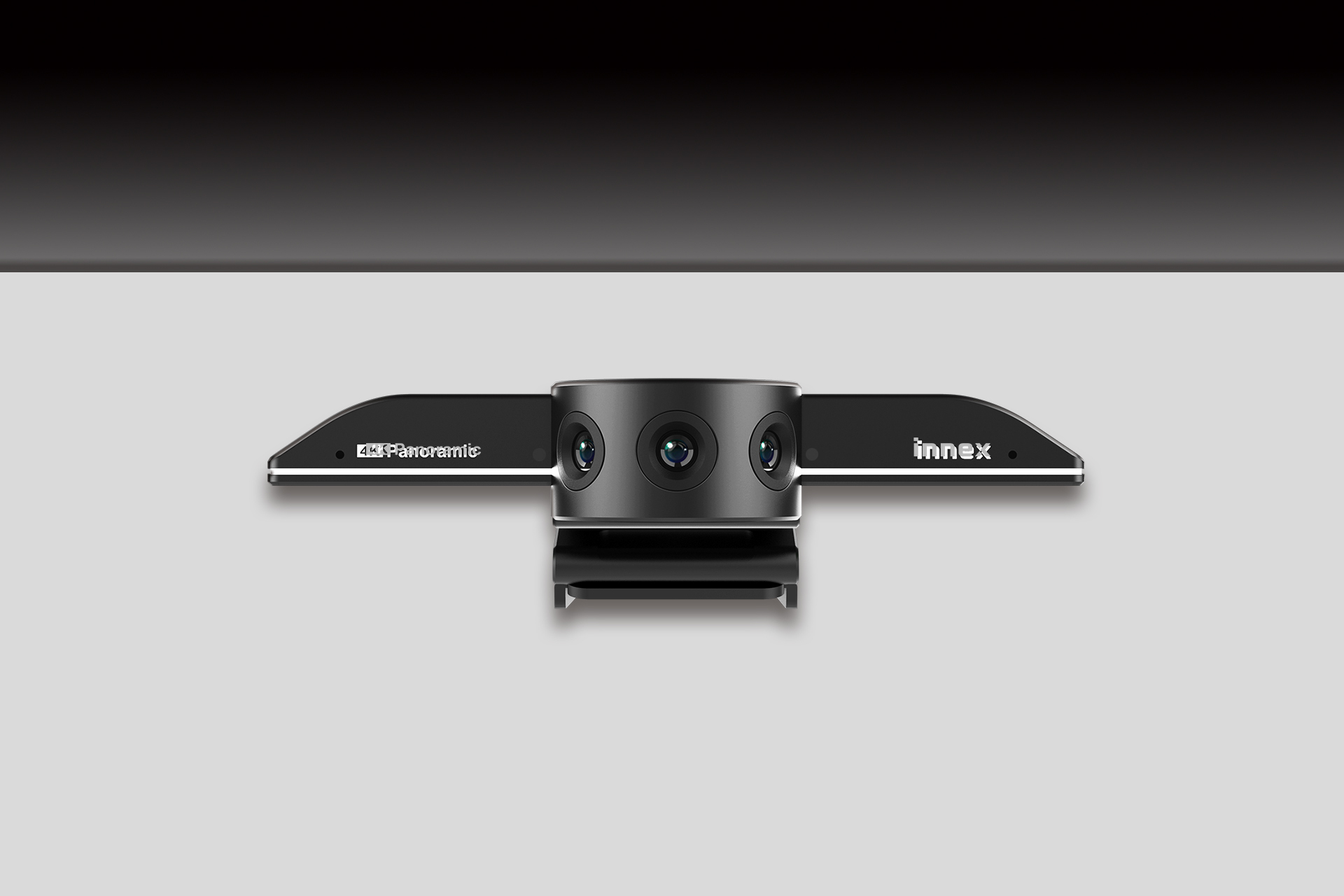

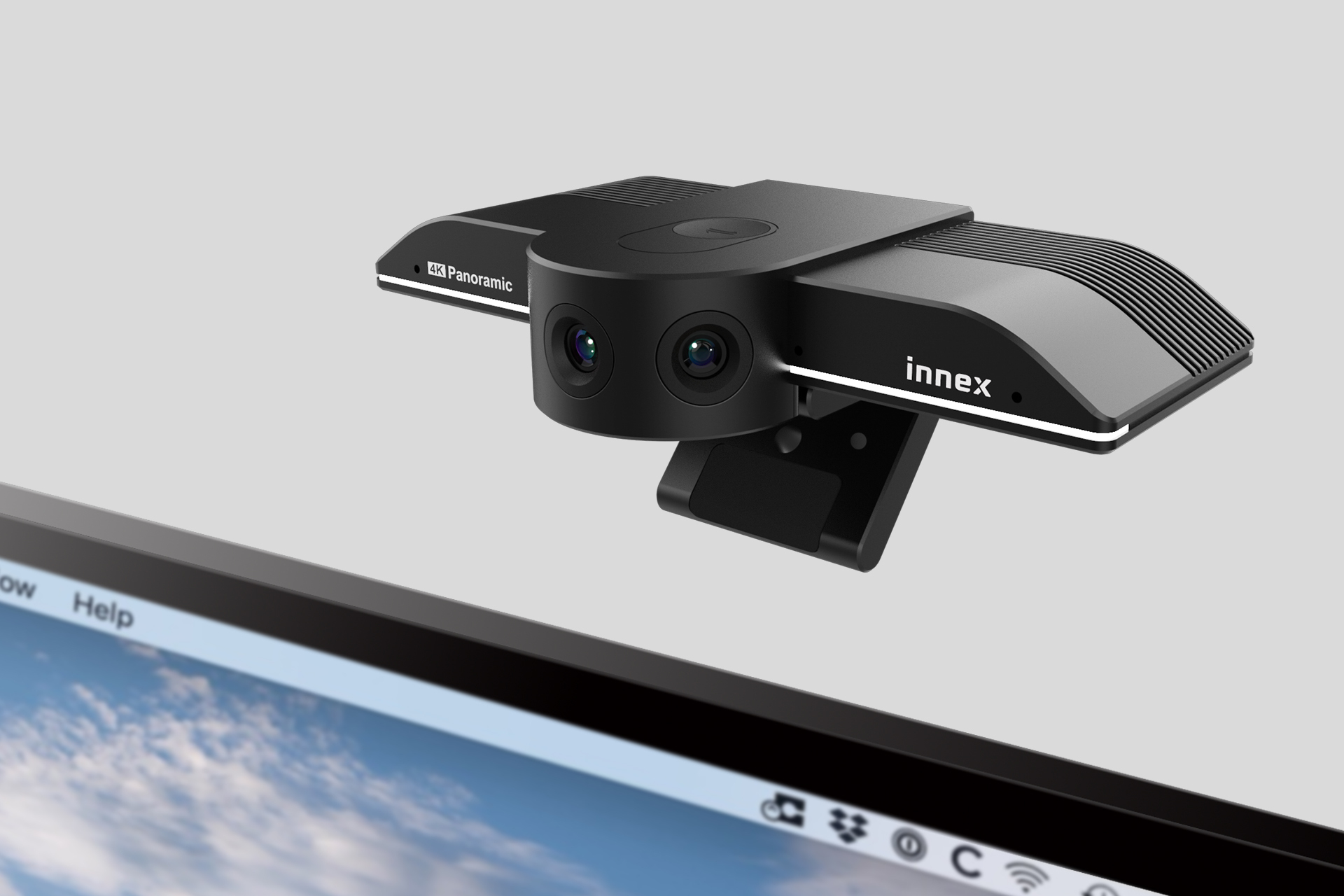

| Mounting type | Clip |

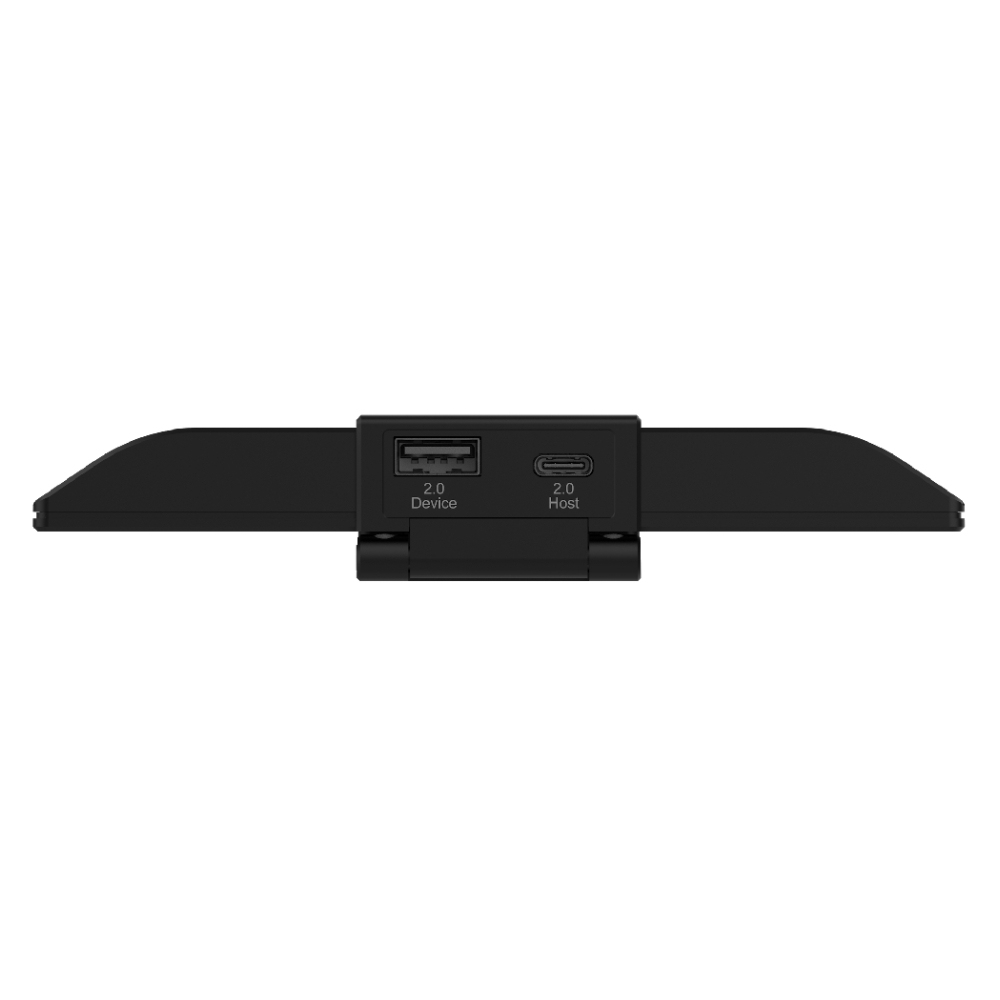

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Other operating systems supported | Android, ChromeOS |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Microphone frequency response | 100 - 13000 Hz |
| Microphone sensitivity | -26 dB |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Automatic gain control | Yes |
| Microphone pick-up range | 4 m |
Performance
| Specification | Value |
|---|---|
| Auto framing | Yes |
| Plug and Play | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| USB cable length | 1.5 m |
| Quick start guide | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144 mm |
| Depth | 26 mm |
| Height | 73 mm |
| Weight | 209 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 183 mm |
| Package depth | 116 mm |
| Package height | 75 mm |
| Package weight | 480 g |
