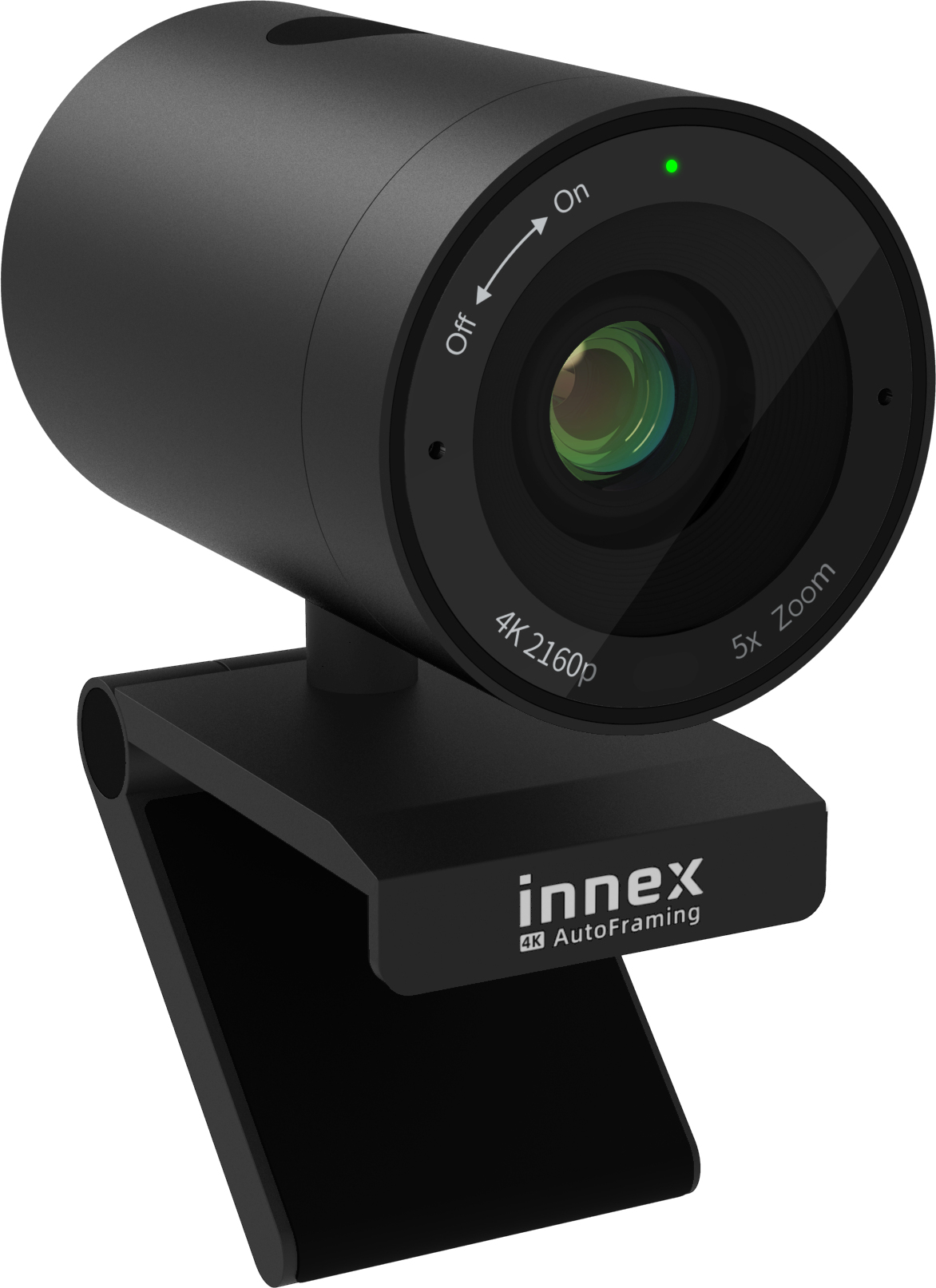

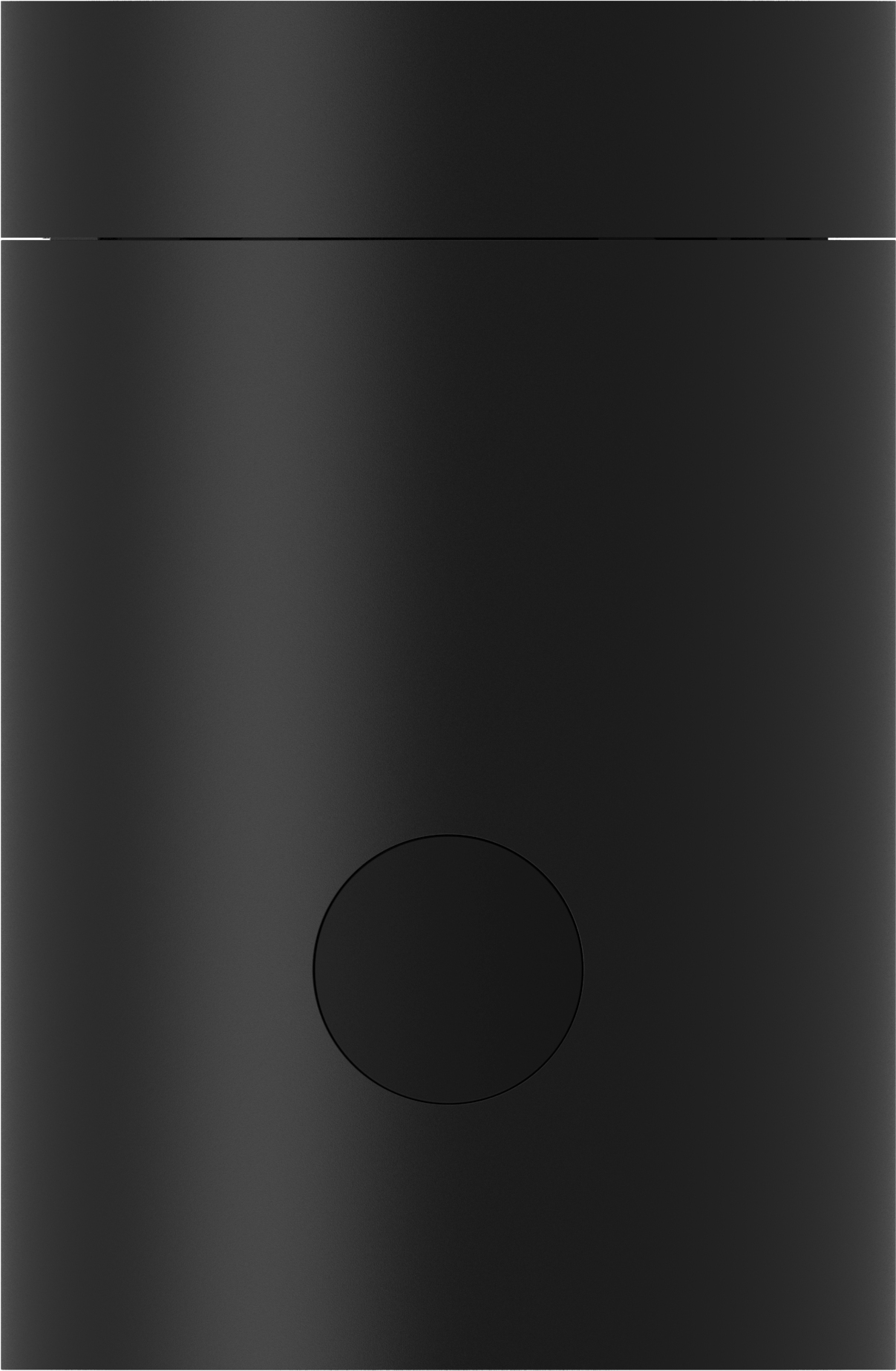

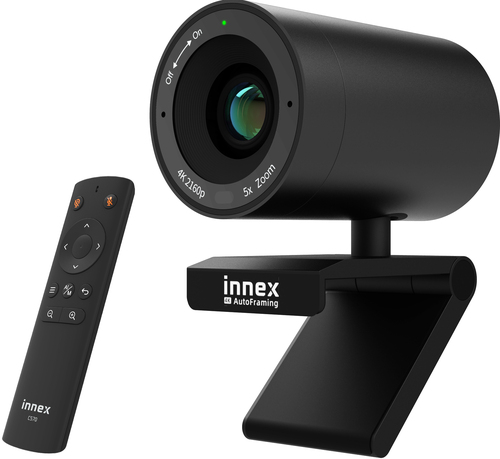

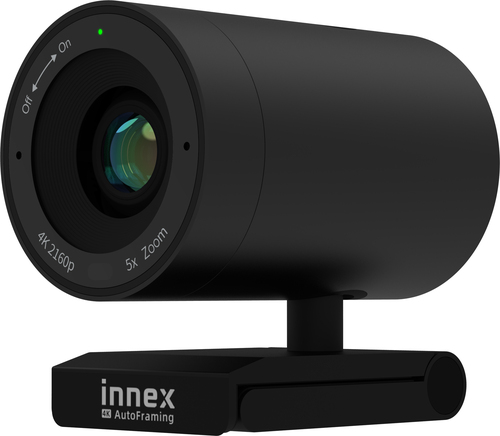

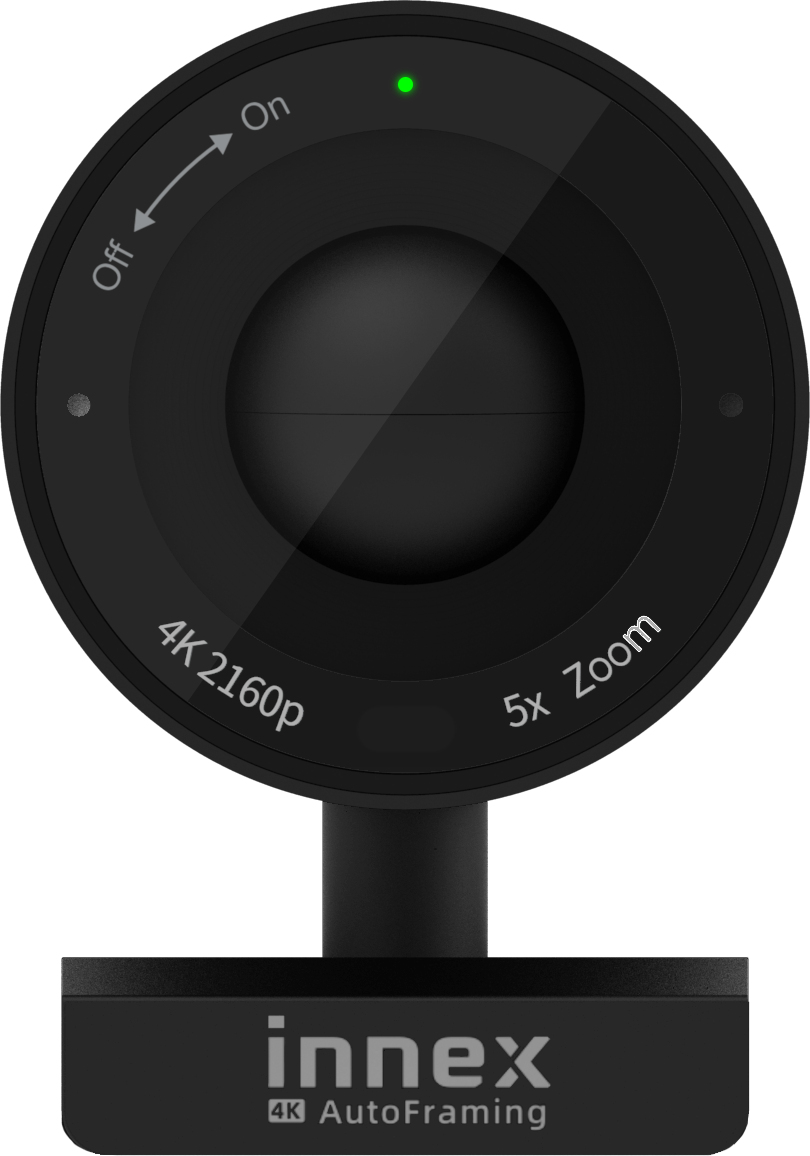

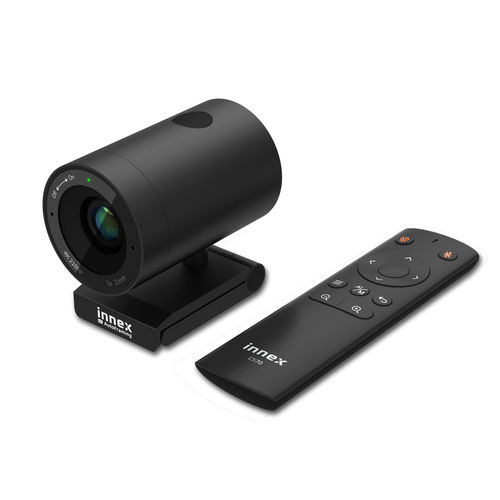

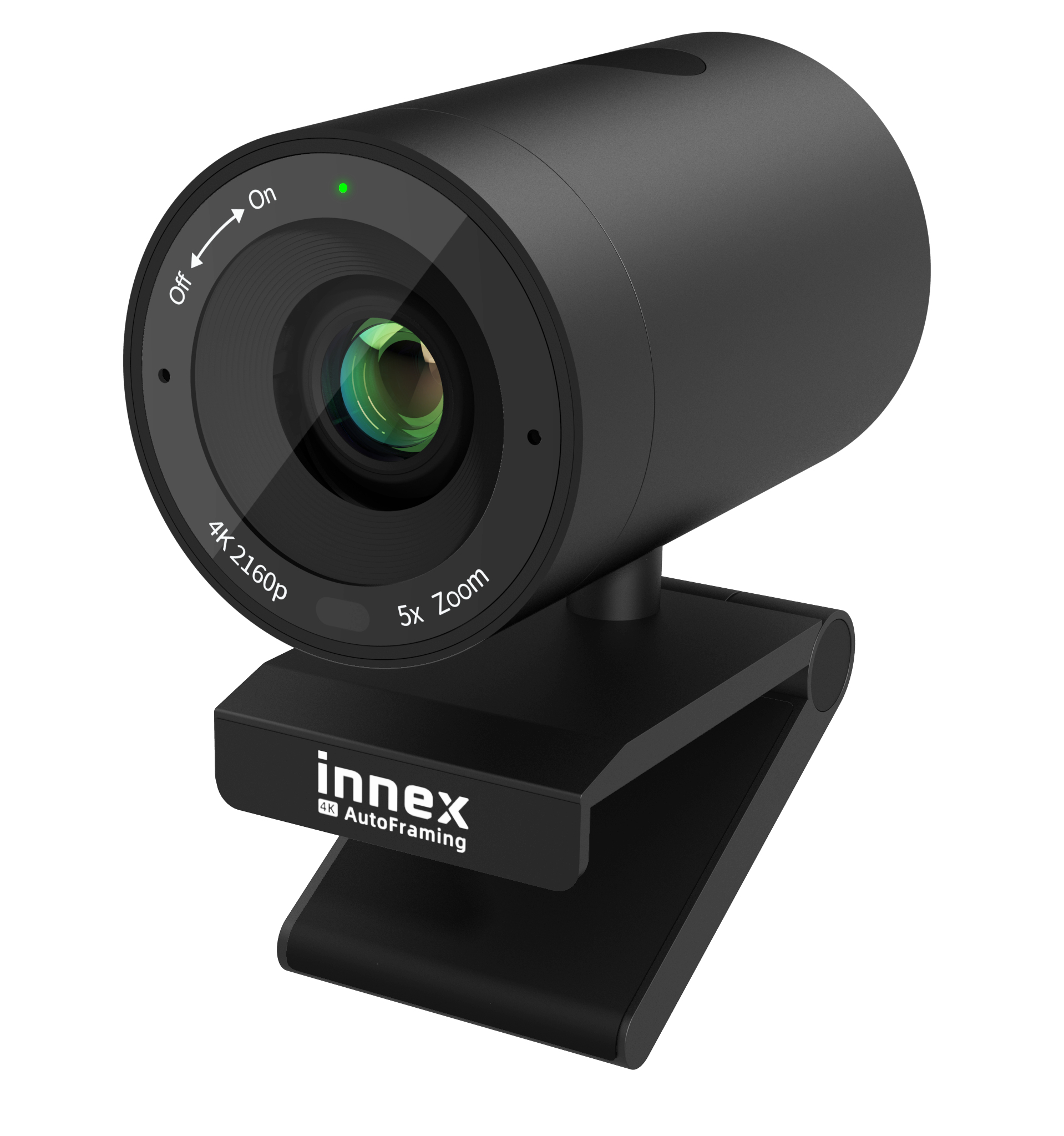

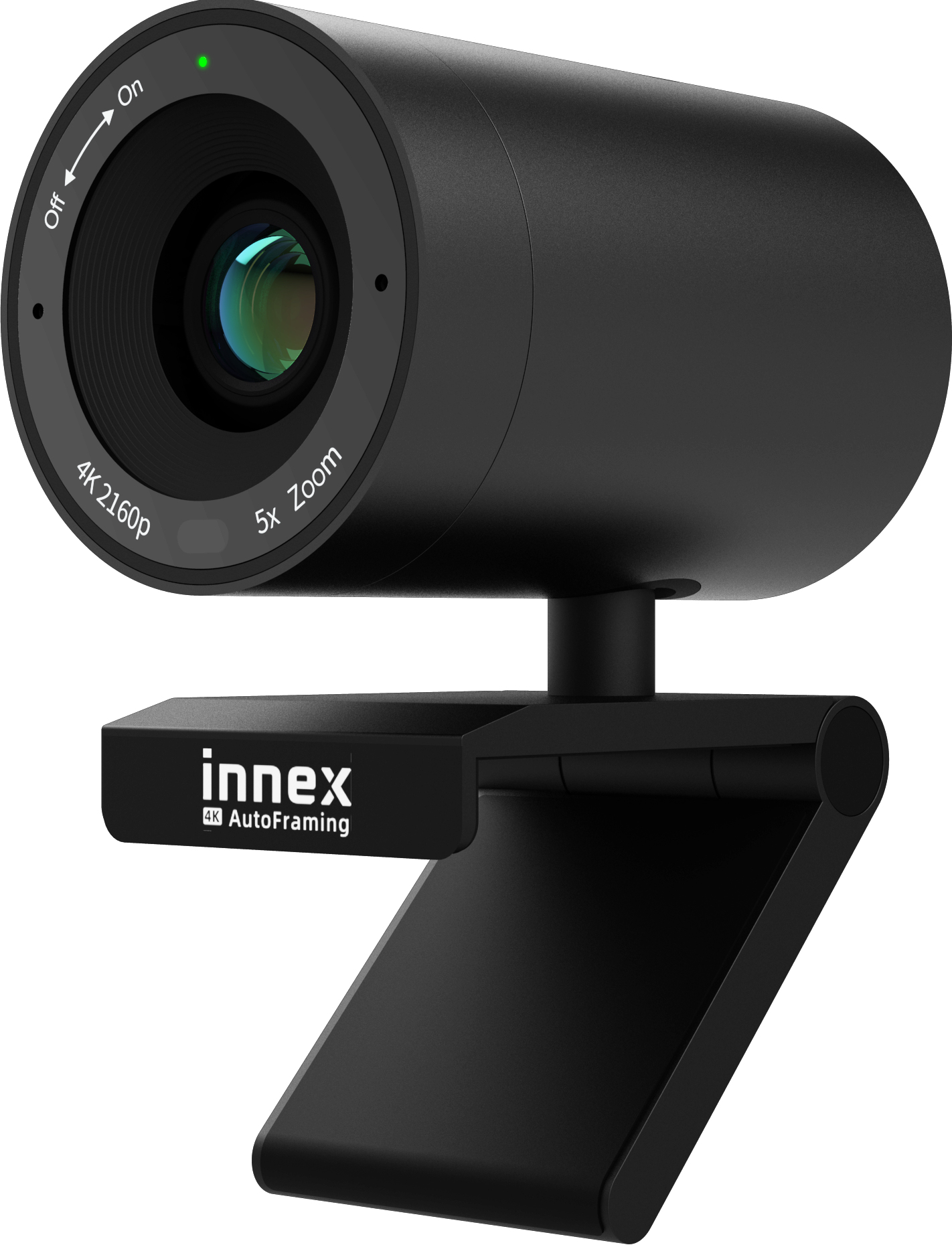

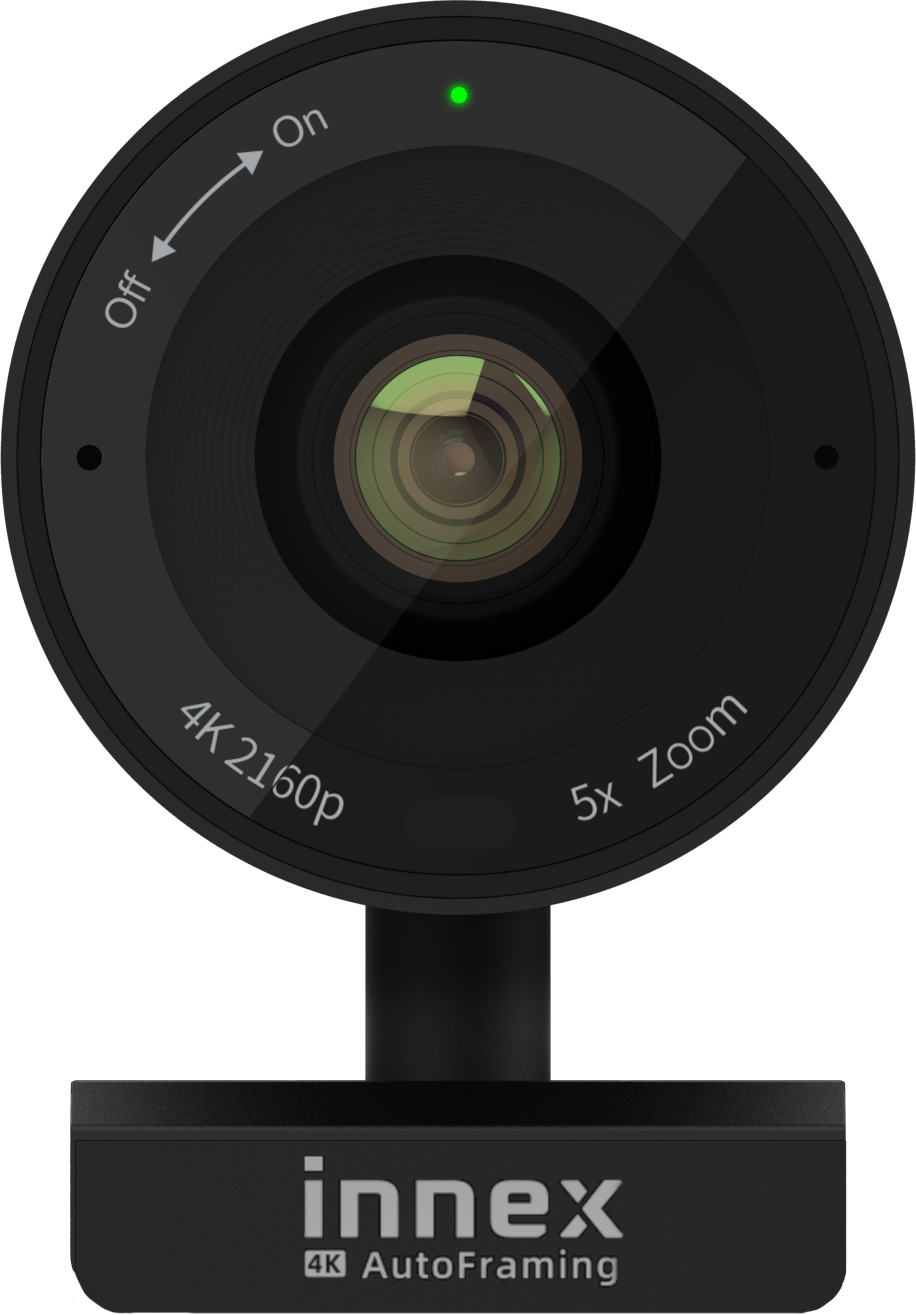

C570 8.46 MP Black 3840 x 2160 pixels 30 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Model C570Part no. 98100C570Z0000EAN 4711203040132
50 specifications
- Weight209 g
- ColourBlack
- Megapixel (approx.)8.46 MP
- Maximum video resolution3840 x 2160 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
- Power source typeUSB
Overview
- Weight
- 209 g
- Colour
- Black
- Megapixel (approx.)
- 8.46 MP
- Maximum video resolution
- 3840 x 2160 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Power source type
- USB
- Brand
- Innex
- Category
- Video Conferencing Camera
- Model
- C570
- Part number
- 98100C570Z0000
- EAN / UPC
- 4711203040132
- Also known as
- Innex C570 8.46 MP Black 3840 x 2160 pixels 30 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
50 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.46 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Zoom capability | Yes |
| Optical zoom | 5x |
| Field of view (FOV) angle | 120° |
| Flip & mirror | Yes |
| White balance | Auto |
| Auto exposure | Yes |
| Focus adjustment | Auto |
| Closest focusing distance | 0.5 m |
| PTZ control | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Video formats supported | H.264, H.265, MJPG, NV12, YUV |
| Supported graphics resolutions | 320 x 180, 320 x 240, 352 x 288, 480 x 270, 640 x 360, 640 x 480 (VGA), 800 x 448, 800 x 600 (SVGA), 960 x 540, 960 x 720, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2880 |
| High Dynamic Range (HDR) supported | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Clip |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Operating current | 0.9 A |
| Operating voltage | 5 V |
| Remote control battery type | AAA |
Performance
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Auto framing | Yes |
| Remote control function | Yes |
| Plug and Play | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Other operating systems supported | Android, ChromeOS |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Microphone sensitivity | -30 dB |
| Sound pressure level (max) | 100 dB |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Automatic gain control | Yes |
| Microphone pick-up range | 8 m |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control batteries included | Yes |
| USB cable length | 1.5 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144 mm |
| Depth | 26 mm |
| Height | 73 mm |
| Weight | 209 g |
