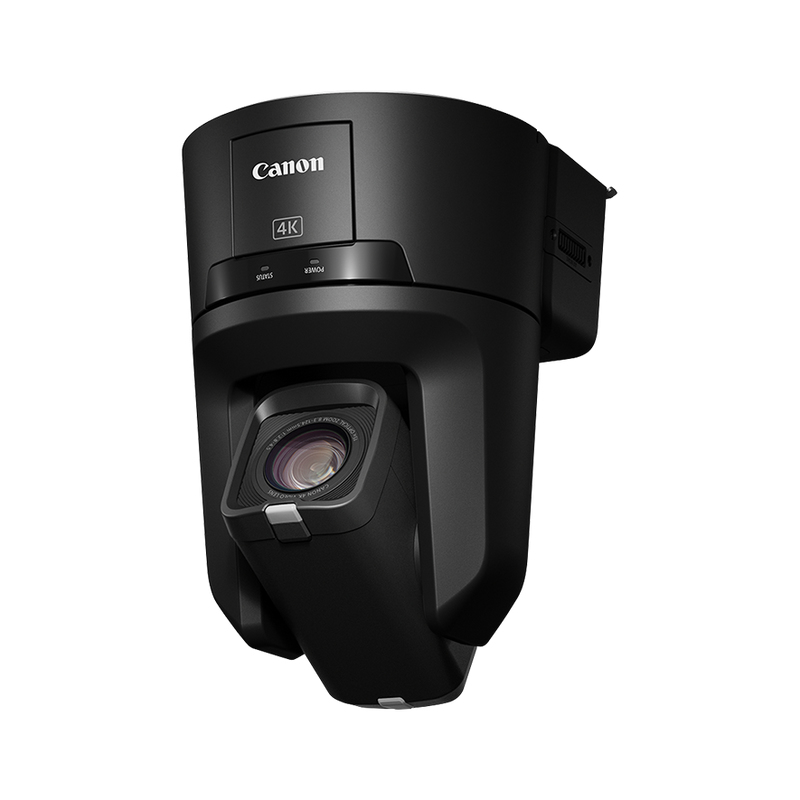

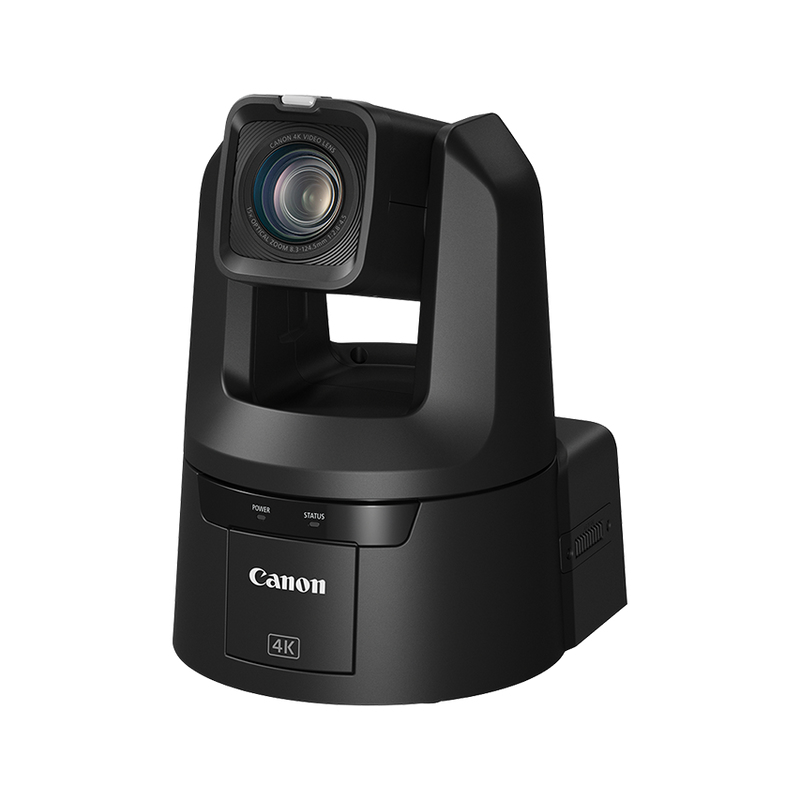

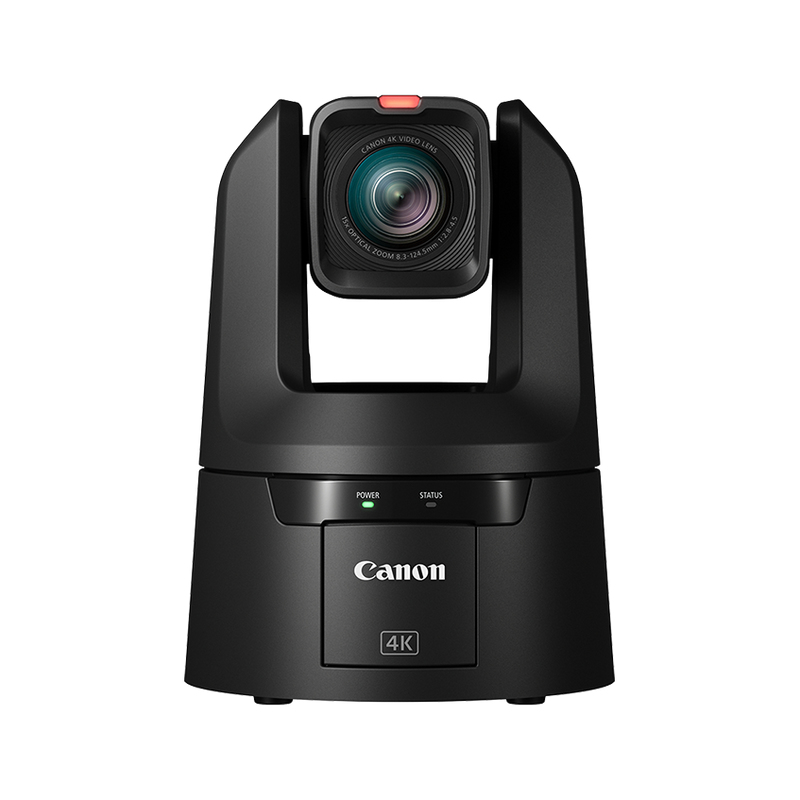

CR-N500 Black
3840 x 2160 pixels 59.94 fps CMOS
Model CR-N500Part no. 4839C003EAN 4549292182750
43 specifications
- Weight4.1 kg
- ColourBlack
- Camera typeSingle camera
- Maximum video resolution3840 x 2160 pixels
- HDMI ports quantity1
- Power source typeDC, PoE
Overview
- Weight
- 4.1 kg
- Colour
- Black
- Camera type
- Single camera
- Maximum video resolution
- 3840 x 2160 pixels
- HDMI ports quantity
- 1
- Power source type
- DC, PoE
- Brand
- Canon
- Category
- Video Conferencing Camera
- Model
- CR-N500
- Part number
- 4839C003
- EAN / UPC
- 4549292182750
- Also known as
- Canon CR-N500 Black 3840 x 2160 pixels 59.94 fps CMOS
Specifications
43 specifications in 8 groups

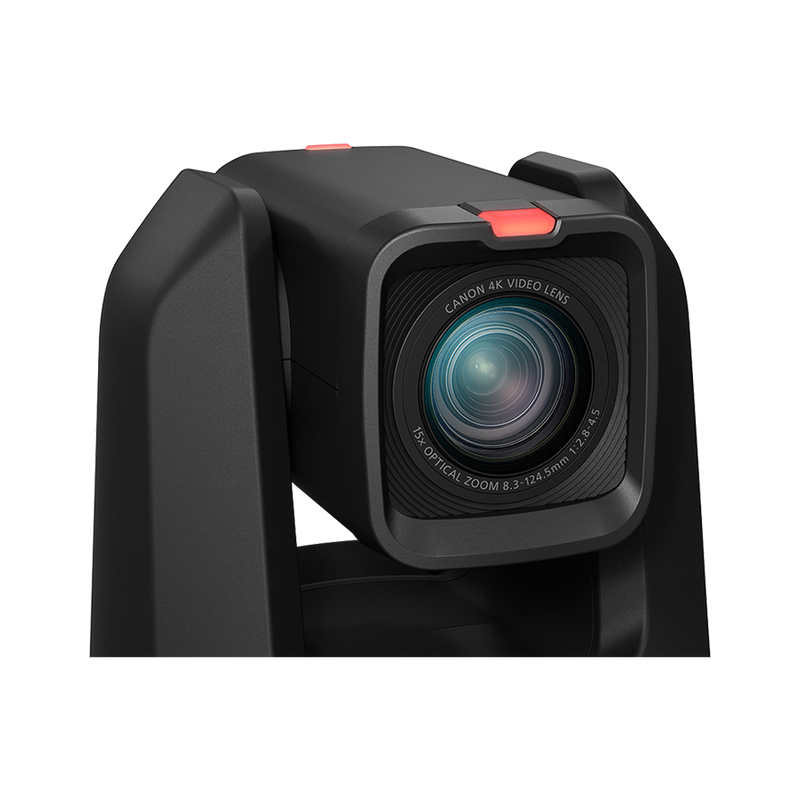

Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Sensor type | CMOS |
| Effective sensor resolution | 8.29 MP |
| Zoom capability | Yes |
| Optical zoom | 15x |
| Digital zoom | 20x |
| Focal length range | 8.3 – 124.5 |
| Horizontal field of view (tele) | 5.7° |
| Horizontal field of view (wide) | 73° |
| Vertical field of view (tele) | 3.2° |
| Vertical field of view (wide) | 45.2° |
| Minimum illumination | 1.5 lx |
| Aperture range (F-F) | 2.8 - 4.5 |
| White balance | Auto, Daylight, Manual, Tungsten |
| Focus adjustment | Auto/Manual |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 59.94 fps |
| HD type | 4K Ultra HD |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Image stabilizer | Yes |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| Tilt speed (max) | 100 °/sec |
| Tilt speed (min) | 0.1 °/sec |
| Pan speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |

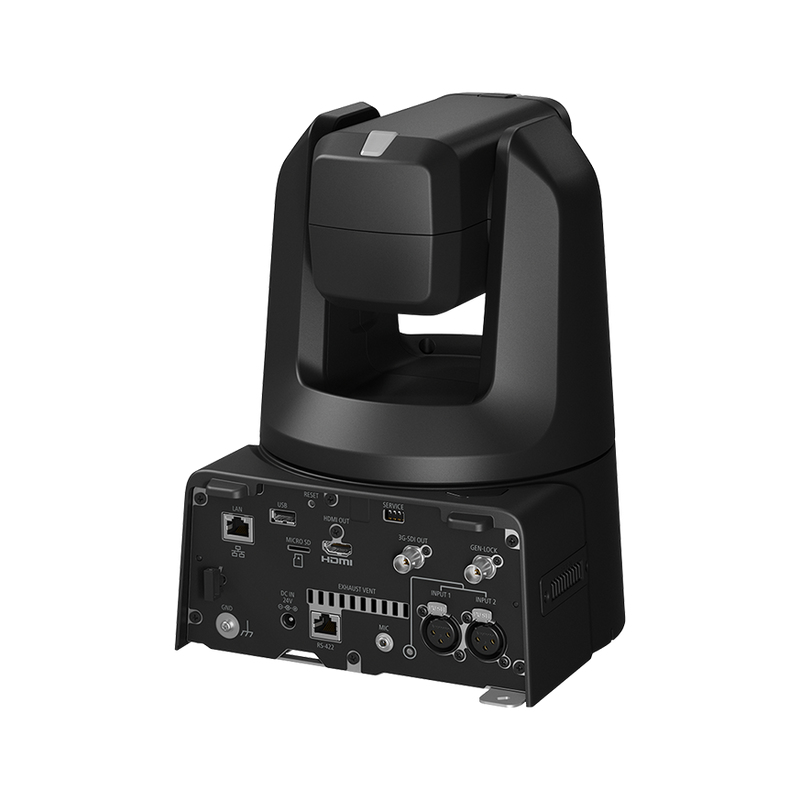

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| BNC output ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone out | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power over Ethernet (PoE) voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| Streaming capability | Yes |
| Network streaming | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 208 mm |
| Height | 269 mm |
| Weight | 4.1 kg |
