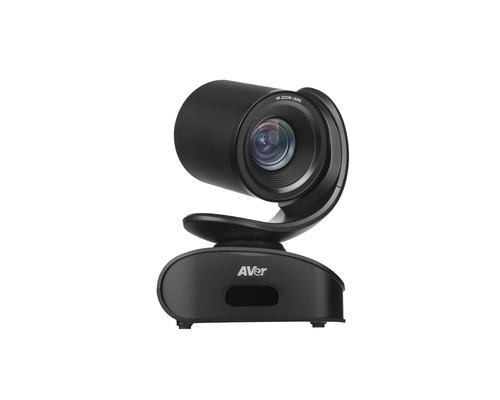

VC540 Black 60 fps
Model VC540Part no. 61U0200000ACEAN 4719552125869
51 specifications
- Weight2.38 kg
- ColourBlack
- Combined zoom16x
- Maximum frame rate60 fps
- USB Type-C connectorYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 2.38 kg
- Colour
- Black
- Combined zoom
- 16x
- Maximum frame rate
- 60 fps
- USB Type-C connector
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- VC540
- Part number
- 61U0200000AC
- EAN / UPC
- 4719552125869
- Also known as
- AVer VC540 Black 60 fps
Specifications
51 specifications in 12 groups
Camera
| Specification | Value |
|---|---|
| Combined zoom | 16x |
| Horizontal field of view | 86° |
| Focus adjustment | Auto |
| Back Light Compensation (BLC) | Yes |
| Number of camera presets | 10 |
Video
| Specification | Value |
|---|---|
| Maximum frame rate | 60 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 320x240@30fps, 320x240@60fps, 640x480@15fps, 640x480@30fps, 640x480@60fps, 1280x720@15fps, 1280x720@60fps, 1920x1080@15fps, 1920x1080@30fps, 1920x1080@60fps, 3840x2160@30fps |
| Supported video modes | 720p, 1080p, 2160p |
| Video formats supported | M-JPEG, YUV |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -160 - 160° |
| Country of origin | Taiwan |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-C connector | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Echo cancellation | Yes |
| Noise reduction | Yes |
Performance
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Remote control function | Yes |
| Tripod mounting supported | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, USB |
| Power cable length | 1.8 m |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 60 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Speaker dimensions (WxDxH) | 220 x 50 x 21 mm |
| Remote control dimensions (W x H x D) | 200 x 50 x 21 mm |
| Width | 181.4 mm |
| Depth | 171.1 mm |
| Height | 220 mm |
| Weight | 2.38 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 259 mm |
| Package depth | 349 mm |
| Package height | 259 mm |
| Package weight | 4.83 kg |
