VC520 Pro3
Model VC520 Pro3Part no. VC520PRO3
78 specifications
- Weight1.47 kg
- ColourBlack
- Megapixel (approx.)8 MP
- Maximum video resolution1920 x 1080 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
- Power source typeDC
Overview
- Weight
- 1.47 kg
- Colour
- Black
- Megapixel (approx.)
- 8 MP
- Maximum video resolution
- 1920 x 1080 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 1
- Power source type
- DC
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- VC520 Pro3
- Part number
- VC520PRO3
- Also known as
- AVer VC520 Pro3 8 MP Black 1920 x 1080 pixels 60 fps
Specifications
78 specifications in 14 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8 MP |
| Camera type | Single camera |
| Optical zoom | 12x |
| Combined zoom | 36x |
| Field of view (FOV) angle | 80.5° |
| Focal length range | 3.9 - 46.8 mm |
| Horizontal field of view | 72.8° |
| Vertical field of view | 44.1° |
| Flip & mirror | Yes |
| Aperture range (F-F) | 1.8 - 2.8 |
| White balance | Auto, Manual |
| Light exposure modes | Auto |
| Closest focusing distance | 1 m |
| Wide Dynamic Range (WDR) | Yes |
| Number of camera presets | 10 |
| PTZ protocols | UAC, Pelco-P/D, UVC, VISCA |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Video formats supported | H.264, M-JPEG, NV12, YUV, YUY2 |
| Supported graphics resolutions | 320 x 240, 424 x 240, 480 x 360, 640 x 360, 640 x 480 (VGA), 800 x 448, 848 x 480, 960 x 540, 1280 x 720 (HD 720), 1600 x 900, 1920 x 1080 (HD 1080) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Stand/Wall mounting |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| Web-based management | Yes |

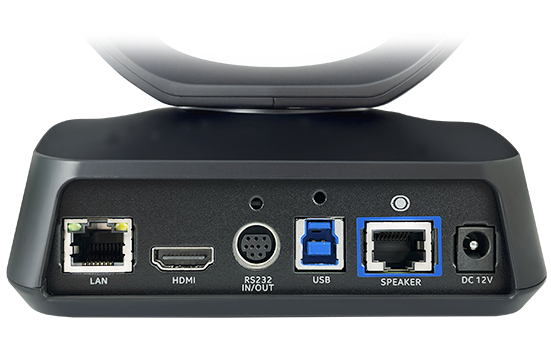

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| VISCA input ports | 1 |
| DIN connector | Yes |
| DIN connector type | 9-pin |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Input current | 5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7 |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Minimum processor family | Core i5 |
| Minimum processor speed | 3.2 GHz |
| Minimum processor | Intel Core i5-4460 |
| Minimum RAM | 4096 MB |
Performance
| Specification | Value |
|---|---|
| Auto framing | Yes |
| Remote control function | Yes |
| Remote control type | IR |
| Tripod mounting supported | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | Zoom, Skype for Business, Microsoft Teams, ClickShare, RingCentral |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
| Audio codecs | AAC-LC |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | Camera to speakerphone, AUX, AC, USB |
| USB cable length | 5 m |
| Power cable length | 1.8 m |
| Screws included | Yes |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
Network
| Specification | Value |
|---|---|
| Streaming capability | Yes |
| Network streaming | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Speaker dimensions (WxDxH) | 220 x 181.5 x 49.5 mm |
| Remote control dimensions (W x H x D) | 200 x 50 x 21 mm |
| Width | 182 mm |
| Depth | 142.7 mm |
| Height | 153 mm |
| Weight | 1.47 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 259 mm |
| Package depth | 259 mm |
| Package height | 349 mm |
| Package weight | 5.8 kg |
| Package type | Box |
