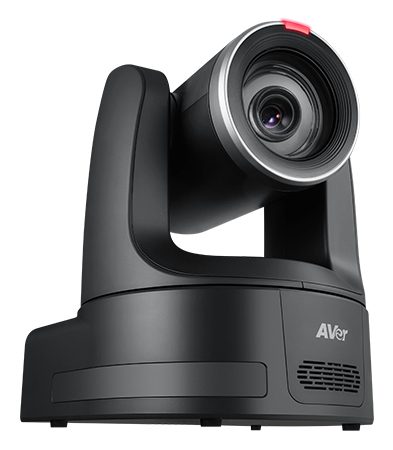

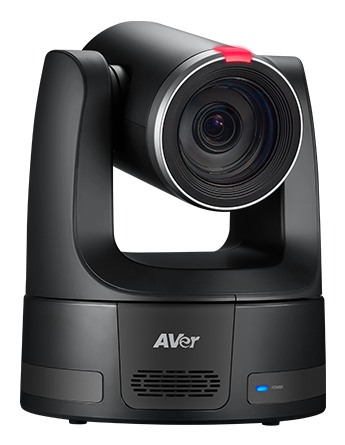

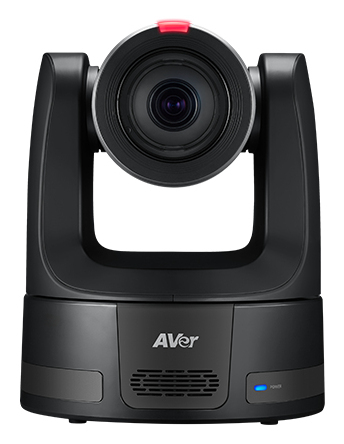

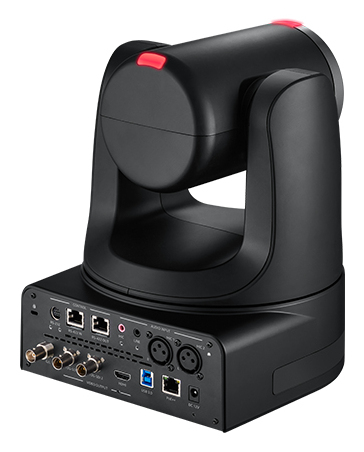

TR615 20.92 MP Black 3840 x 2160 pixels 30 fps Exmor CMOS 25.4 / 2.8 mm (1 / 2.8")
Model TR615Part no. 61S9350000ACEAN 4719552128273
63 specifications
- Weight4.3 kg
- ColourBlack
- Megapixel (approx.)20.92 MP
- Maximum video resolution3840 x 2160 pixels
- HDMI ports quantity1
- Power source typeAC, PoE
Overview
- Weight
- 4.3 kg
- Colour
- Black
- Megapixel (approx.)
- 20.92 MP
- Maximum video resolution
- 3840 x 2160 pixels
- HDMI ports quantity
- 1
- Power source type
- AC, PoE
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- TR615
- Part number
- 61S9350000AC
- EAN / UPC
- 4719552128273
- Also known as
- AVer TR615 20.92 MP Black 3840 x 2160 pixels 30 fps Exmor CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
63 specifications in 12 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 20.92 MP |
| Camera type | Single camera |
| Sensor type | Exmor CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 19x |
| Digital zoom | 12x |
| Field of view (FOV) angle | 69.2° |
| Field of view (tele) | 4.5° |
| Field of view (wide) | 77.8° |
| Focal length range | 9.79 - 186.39 mm |
| Minimum illumination | 1.4 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture range (F-F) | 2.8 - 4.5 |
| White balance | Auto, Manual |
| Closest focusing distance | 1.5 m |
| Gain control type | Auto/Manual |
| Fastest camera shutter speed | 1/10000 s |
| Slowest camera shutter speed | 1 s |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 3840x2160@60fps |
| Supported video modes | 720p, 1080p, 2160p |
| Video formats supported | H.264, H.265 |
| Number of TV lines | 1600 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| LED indicators | Power |
| Tilt preset speed | 100 °/sec |
| Tilt speed (max) | 100 °/sec |
| Tilt speed (min) | 0.05 °/sec |
| Pan preset speed | 100 °/sec |
| Pan speed (max) | 100 °/sec |
| Pan speed (min) | 0.05 °/sec |
| Country of origin | Taiwan |

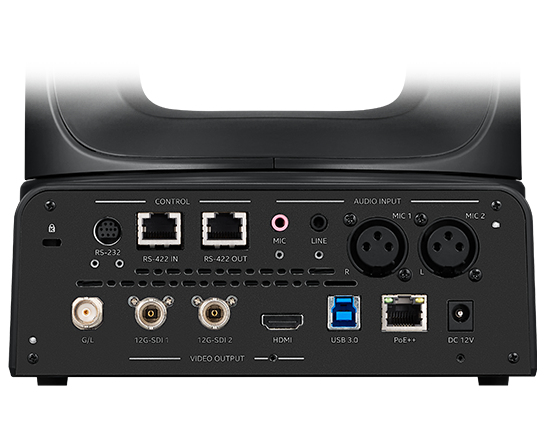

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| RS-232 ports | 1 |
| RS-422 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC, PoE |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Operating current | 5 A |
| Operating voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7 |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Performance
| Specification | Value |
|---|---|
| Auto-tracking | Yes |
| Tracking modes | Presenter mode, Zone mode |
| Remote control type | IR |
Audio
| Specification | Value |
|---|---|
| Supported sample rates | 48 kHz |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 1 pc(s) |
Network
| Specification | Value |
|---|---|
| Supported protocols | VISCA (RS-232 / RS-422 / IP), PELCO-D и PELCO-P (RS-232 / RS-422), CGI (IP), USB, ONVIF |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 202.5 mm |
| Depth | 231.5 mm |
| Height | 304.5 mm |
| Weight | 4.3 kg |
