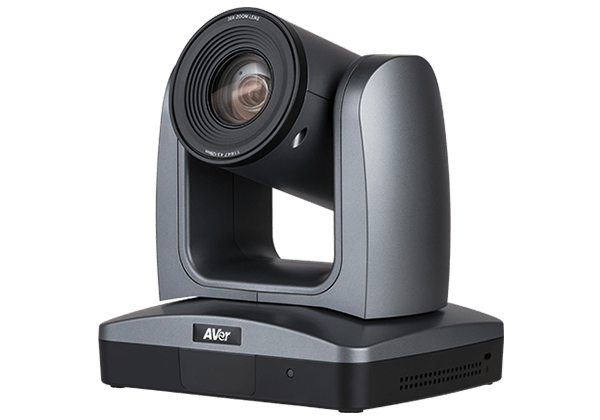

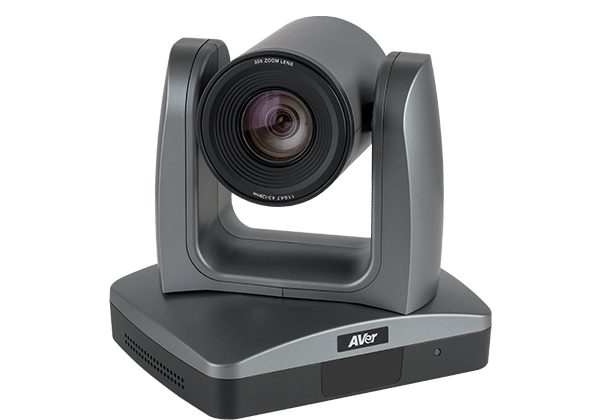

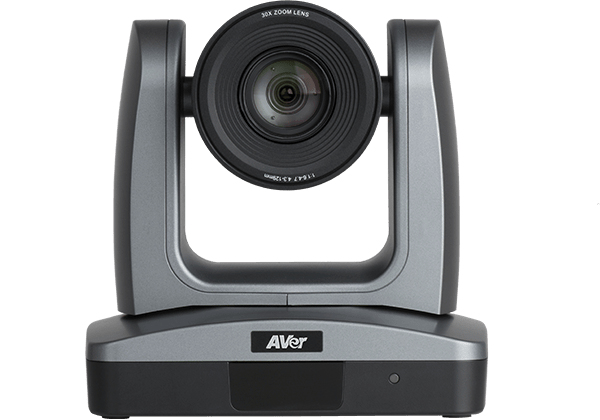

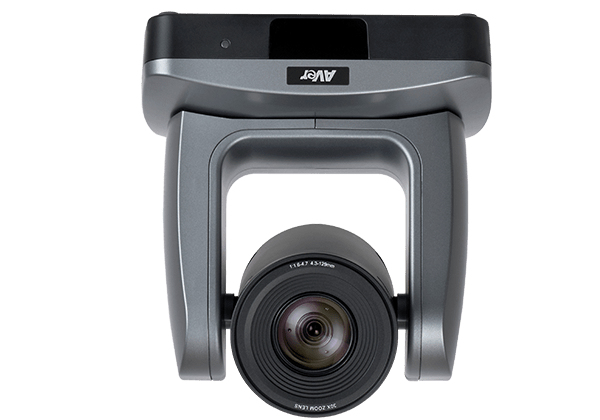

PTZ330N 2.1 MP Grey 1920 x 1080 pixels 60 fps Exmor 25.4 / 2.8 mm (1 / 2.8")
Model PTZ330NPart no. 61S3300000AREAN 4719552125906
62 specifications
- Weight7.26 kg
- ColourGrey
- Megapixel (approx.)2.1 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- Power source typeAC, PoE
Overview
- Weight
- 7.26 kg
- Colour
- Grey
- Megapixel (approx.)
- 2.1 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- Power source type
- AC, PoE
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- PTZ330N
- Part number
- 61S3300000AR
- EAN / UPC
- 4719552125906
- Also known as
- AVer PTZ330N 2.1 MP Grey 1920 x 1080 pixels 60 fps Exmor 25.4 / 2.8 mm (1 / 2.8")
Specifications
62 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.1 MP |
| Sensor type | Exmor |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 129 mm |
| Minimum illumination | 0.3 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture range (F-F) | 1.6 - 4.7 |
| White balance | Auto, Indoor, Manual, One push, Outdoor |
| Auto exposure | Yes |
| Number of camera presets | 10 |
| Gain control type | Auto/Manual |
| PTZ control | Yes |
| 3D NR (Noise Reduction) | Yes |
| Fastest camera shutter speed | 1/32000 s |
| Maximum working distance (tele) | 120 cm |
| Minimum working distance (wide) | 1 cm |
| Slowest camera shutter speed | 1 s |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Resolution at capture speed | 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps |
| Supported video modes | 720p, 1080i, 1080p |
| Video formats supported | H.264, M-JPEG, YUV |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| Web-based management | Yes |
| Tilt speed (max) | 100 °/sec |
| Tilt speed (min) | 0.1 °/sec |
| Pan speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |
| Country of origin | Taiwan |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| RS-422 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| 3G-SDI output | Yes |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, PoE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network streaming | Yes |
| Supported network protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA IP |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8525890000 |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 72 pc(s) |
Performance
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 253 mm |
| Depth | 2530 mm |
| Height | 271 mm |
| Weight | 7.26 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 275 mm |
| Package depth | 293 mm |
| Package height | 525 mm |
| Package weight | 8 kg |
