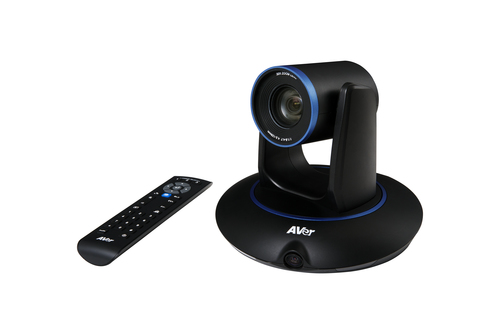

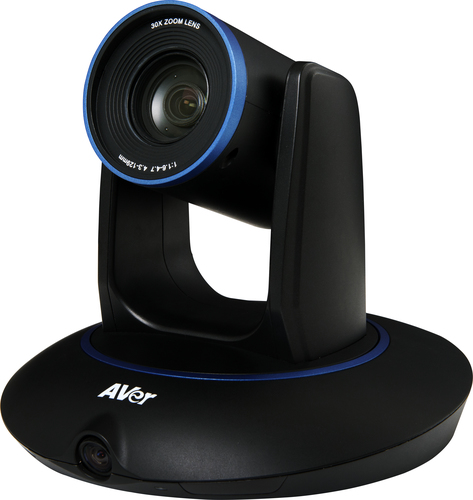

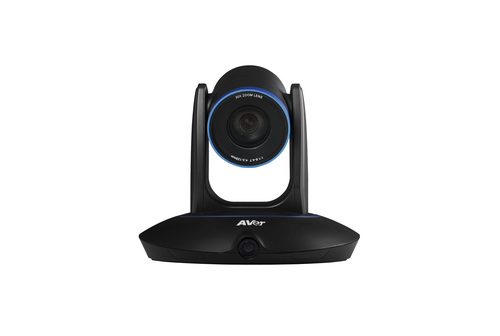

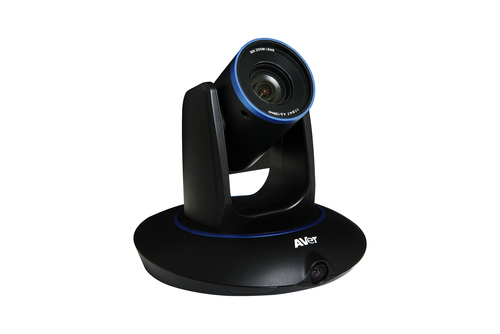

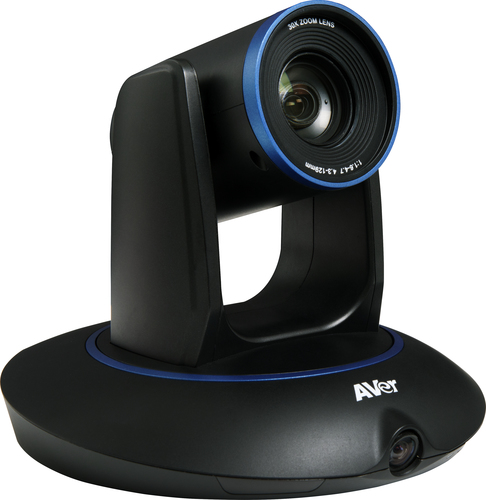

PTC500S 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Model PTC500SPart no. 61U9P10000AJEAN 4719552125005
64 specifications
- Weight7.17 kg
- ColourBlack
- Megapixel (approx.)2 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- Power source typeDC
Overview
- Weight
- 7.17 kg
- Colour
- Black
- Megapixel (approx.)
- 2 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- Power source type
- DC
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- PTC500S
- Part number
- 61U9P10000AJ
- EAN / UPC
- 4719552125005
- Also known as
- AVer PTC500S 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
64 specifications in 13 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Field of view (FOV) angle | 76° |
| Focal length range | 4.3 - 129 mm |
| Minimum illumination | 0.23 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture range (F-F) | 1.6 - 4.7 |
| White balance | Auto, Manual |
| Auto exposure | Yes |
| Back Light Compensation (BLC) | Yes |
| Number of camera presets | 10 |
| Gain control type | Auto/Manual |
| Fastest camera shutter speed | 1/32000 s |
| Maximum working distance (tele) | 1.2 mm |
| Minimum working distance (wide) | 0.1 mm |
| Slowest camera shutter speed | 0.2 s |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Resolution at capture speed | 1280x720@60fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps |
| Supported video modes | 720p, 1080i, 1080p |
| Video formats supported | H.264 |
| Baud rate | 115.2 Kbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -175 - 175° |
| LED indicators | Power |
| Tilt speed (max) | 50 °/sec |
| Tilt speed (min) | 2 °/sec |
| Pan speed (max) | 50 °/sec |
| Pan speed (min) | 2 °/sec |
| Country of origin | Taiwan |

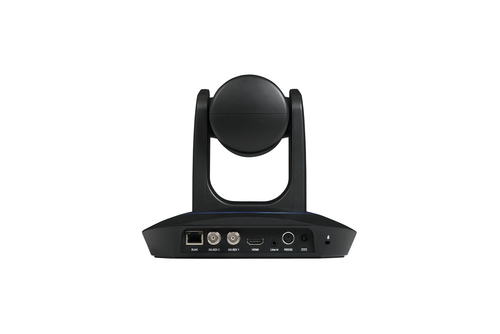

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| 3G-SDI output | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC input voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Performance
| Specification | Value |
|---|---|

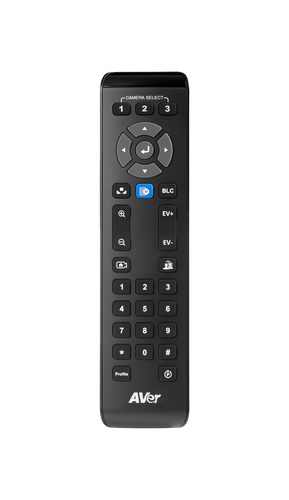

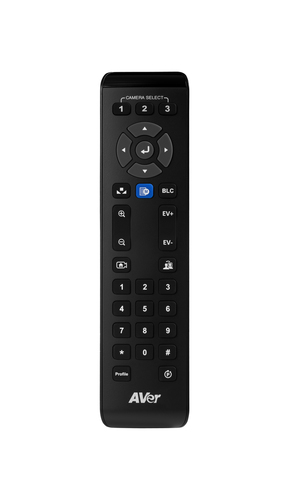

| Remote control function | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Packaging content
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Remote control included | Yes |
| Quick start guide | Yes |
Network
| Specification | Value |
|---|---|
| Network streaming | Yes |
| Supported network protocols | RTSP, RTMP, ONVIF |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8525890000 |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 48 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 250 mm |
| Height | 256 mm |
| Weight | 7.17 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 312 mm |
| Package depth | 286 mm |
| Package height | 520 mm |
| Package weight | 8 kg |
