PTC310UV2 Black
3840 x 2160 pixels 60 fps Exmor 25.4 / 2.8 mm (1 / 2.8")
Model PTC310UV2Part no. 61S9130000ALEAN 4719552126750
67 specifications
- Weight2 kg
- ColourBlack
- Camera typeSingle camera
- Maximum video resolution3840 x 2160 pixels
- HDMI ports quantity1
- Power source typeDC, PoE
Overview
- Weight
- 2 kg
- Colour
- Black
- Camera type
- Single camera
- Maximum video resolution
- 3840 x 2160 pixels
- HDMI ports quantity
- 1
- Power source type
- DC, PoE
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- PTC310UV2
- Part number
- 61S9130000AL
- EAN / UPC
- 4719552126750
- Also known as
- AVer PTC310UV2 Black 3840 x 2160 pixels 60 fps Exmor 25.4 / 2.8 mm (1 / 2.8")
Specifications
67 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Sensor type | Exmor |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 8 MP |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 12x |
| Field of view (tele) | 7° |
| Field of view (wide) | 78° |
| Focal length range | 3.9 - 46.8 mm |
| Horizontal field of view (tele) | 6° |
| Horizontal field of view (wide) | 70° |
| Vertical field of view (tele) | 3° |
| Vertical field of view (wide) | 42° |
| Aperture range (F-F) | 1.6 - 2.8 |
| Closest focusing distance | 0.3 m |
| PTZ control | Yes |
| Privacy camera | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 1280x720@50fps, 1280x720@59.94fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps, 3840x2160@25fps, 3840x2160@29.97fps, 3840x2160@30fps |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| Video formats supported | H.264, H.265 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Number of TV lines | 1400 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Table/Ceiling |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| Tilt preset speed | 200 °/sec |
| Tilt speed (max) | 200 °/sec |
| Tilt speed (min) | 0.1 °/sec |
| Pan preset speed | 200 °/sec |
| Pan speed (max) | 200 °/sec |
| Pan speed (min) | 0.1 °/sec |
| Country of origin | Taiwan |

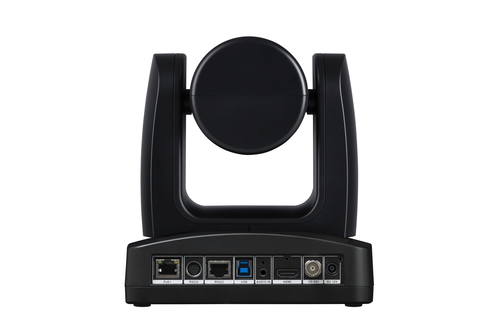

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| RS-232 ports | 1 |
| RS-422 ports | 1 |
| DC-in jack | Yes |
| 3G-SDI output | Yes |
| Line-in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Power consumption (typical) | 19 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8525890000 |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet | 72 pc(s) |
Performance
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 160 mm |
| Height | 192 mm |
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 292 mm |
| Package depth | 245 mm |
| Package height | 303 mm |
| Package weight | 4.99 kg |
