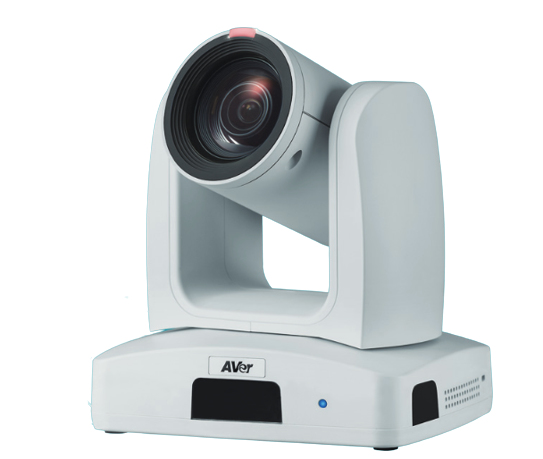

PTC310HWV2 video conferencing camera
2 MP White 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Model PTC310HWV2
79 specifications
- Weight2 kg
- ColourWhite
- Megapixel (approx.)2 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- Power source typeAC, DC, PoE
Overview
- Weight
- 2 kg
- Colour
- White
- Megapixel (approx.)
- 2 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- Power source type
- AC, DC, PoE
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- PTC310HWV2
- Part number
- PTC310HWV2
- Also known as
- AVer PTC310HWV2 video conferencing camera 2 MP White 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
79 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 12x |
| Field of view (tele) | 46.8° |
| Field of view (wide) | 3.9° |
| Focal length range | 3.9 - 46.8 mm |
| Minimum illumination | 0.5 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture range (F-F) | 1.6 - 2.8 |
| White balance | ATW, Auto, Manual, One push |
| Auto exposure | Yes |
| Light exposure modes | Auto, Manual, Shutter priority AE |
| Wide Dynamic Range (WDR) | Yes |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
| 3D NR (Noise Reduction) | Yes |
| Fastest camera shutter speed | 1/32000 s |
| Minimum working distance (wide) | 0.3 mm |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Resolution at capture speed | 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps |
| Supported video modes | 720p, 1080i, 1080p |
| Video formats supported | H.264, H.265, MJPG, YUY2 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Number of TV lines | 900 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Tilt angle range | -30 - 90° |
| Pan range | 0 - 170° |
| Tilt preset speed | 200 °/sec |
| Tilt speed (max) | 100 °/sec |
| Tilt speed (min) | 0.1 °/sec |
| Pan preset speed | 200 °/sec |
| Pan speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| RS-232 ports | 1 |
| RS-422 ports | 1 |
| DC-in jack | Yes |
| Line-in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC, PoE |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100/240 V |
| DC input voltage | 12 V |
| Input current | 5 A |
| Power consumption (max) | 19 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Performance
| Specification | Value |
|---|---|
| Live video preview | Yes |
| Tracking modes | Presenter mode, Zone mode |
| Remote control type | IR |
| Certification | RoHS |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate range | 512 - 32000 Kbit/s |
| Multi-stream capability | 2 (RTSP / Web Page), 1080p 60fps (max.) |
| Supported network protocols | IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
| Audio channels | 2 |
| Audio codecs | AAC-LC, PCM |
Packaging content
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Remote control included | Yes |
| Cables included | AC, RS-232 |
| Screws included | Yes |
| Quick start guide | Yes |
| Packaging content | Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 145 mm |
| Height | 192 mm |
| Weight | 2 kg |
