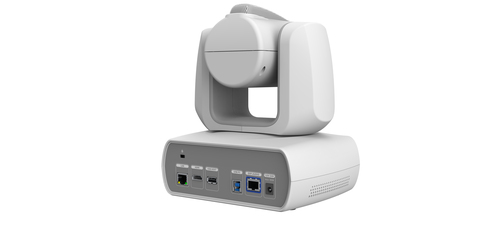

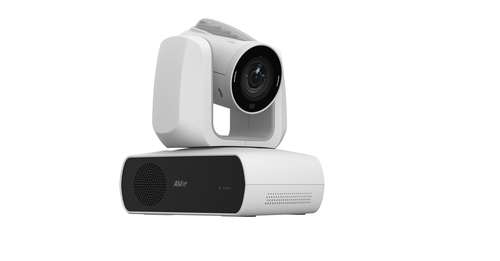

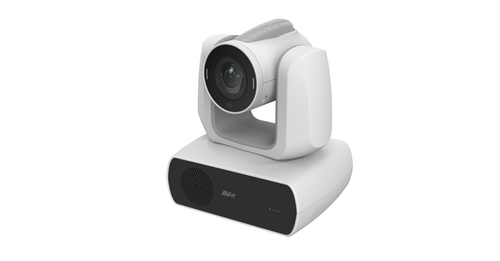

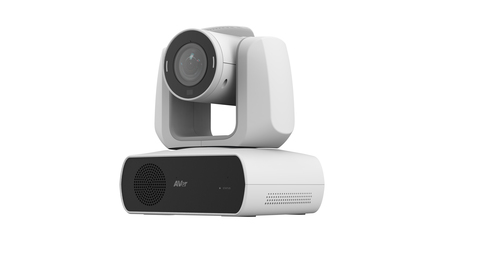

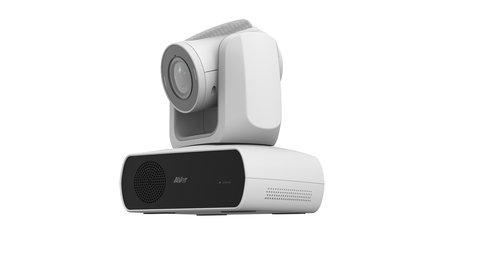

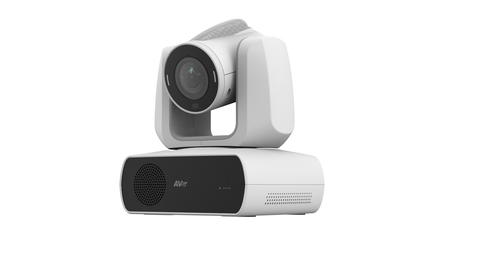

MD331UI Black, White
3840 x 2160 pixels 60 fps Exmor CMOS 25.4 / 2.8 mm (1 / 2.8")
Model MD331UIPart no. 61GP300000ACEAN 4719552128822
62 specifications
- Weight2.56 kg
- ColourBlack, White
- Camera typeSingle camera
- Maximum video resolution3840 x 2160 pixels
- HDMI ports quantity1
- Power source typeDC
Overview
- Weight
- 2.56 kg
- Colour
- Black, White
- Camera type
- Single camera
- Maximum video resolution
- 3840 x 2160 pixels
- HDMI ports quantity
- 1
- Power source type
- DC
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- MD331UI
- Part number
- 61GP300000AC
- EAN / UPC
- 4719552128822
- Also known as
- AVer MD331UI Black, White 3840 x 2160 pixels 60 fps Exmor CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
62 specifications in 12 groups
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Sensor type | Exmor CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 8 MP |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Field of view (tele) | 3.1° |
| Field of view (wide) | 75.5° |
| Focal length range | 4.3 - 129 mm |
| Horizontal field of view (tele) | 2.7° |
| Horizontal field of view (wide) | 68° |
| Vertical field of view (tele) | 1.5° |
| Vertical field of view (wide) | 41.7° |
| Minimum illumination | 0.7 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Aperture range (F-F) | 1.6 - 4.7 |
| Auto exposure | Yes |
| Light exposure modes | Aperture priority AE, Auto, Manual |
| Closest focusing distance | 0.1 m |
| Gain control type | Auto/Manual |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 3840x2160@30fps |
| Supported video modes | 720p, 1080p, 2160p |
| Video formats supported | H.264, H.265 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Tilt angle range | -90 - 90° |
| Pan range | -170 - 170° |
| Country of origin | Taiwan |

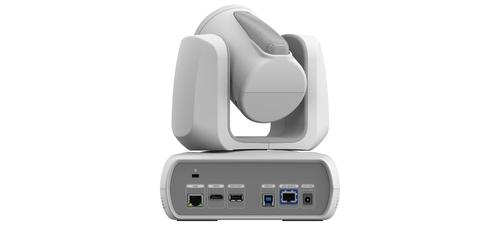

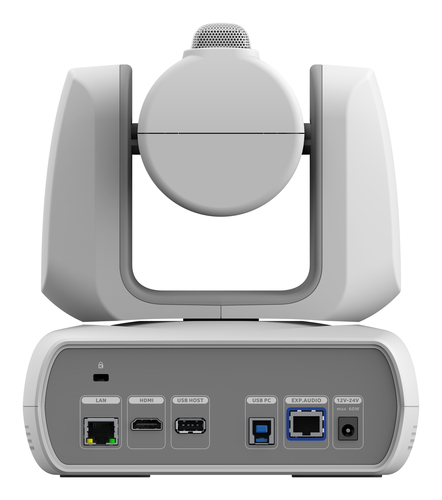

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Power consumption (typical) | 36 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network streaming | Yes |
| Multi-stream capability | 2 (RTSP / Web Page), 4K 30fps (max.) |
| Supported protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet | 77 pc(s) |
Performance
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 195 mm |
| Height | 222.4 mm |
| Weight | 2.56 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 228 mm |
| Package depth | 262 mm |
| Package height | 335 mm |
| Package weight | 4.82 kg |
