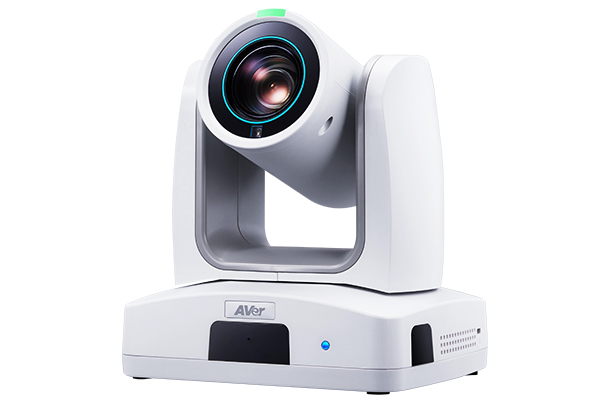

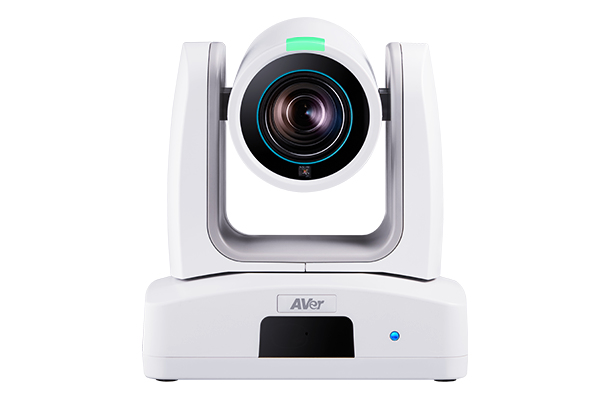

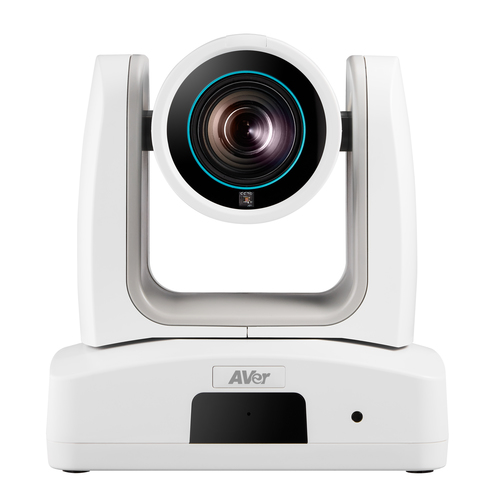

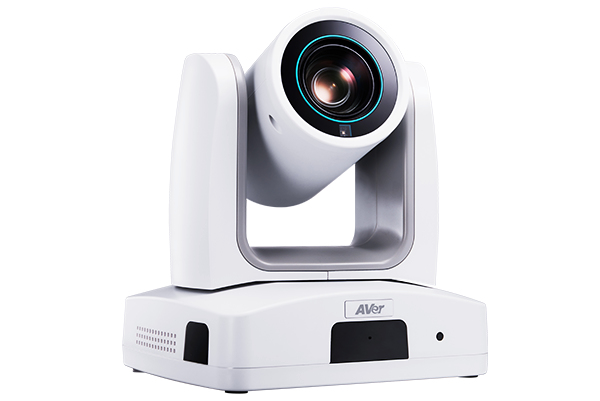

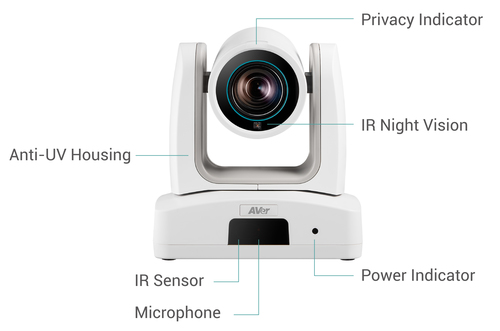

MD120UI White
3840 x 2160 pixels 60 fps
Model MD120UIPart no. 61GP200000ACEAN 4719552127757
57 specifications
- Weight800 g
- ColourWhite
- Camera typeSingle camera
- Maximum video resolution3840 x 2160 pixels
- HDMI ports quantity1
- Power source typeDC, PoE
Overview
- Weight
- 800 g
- Colour
- White
- Camera type
- Single camera
- Maximum video resolution
- 3840 x 2160 pixels
- HDMI ports quantity
- 1
- Power source type
- DC, PoE
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- MD120UI
- Part number
- 61GP200000AC
- EAN / UPC
- 4719552127757, 4719552127825
- Also known as
- AVer MD120UI White 3840 x 2160 pixels 60 fps
Specifications
57 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Effective sensor resolution | 8 MP |
| Optical zoom | 20x |
| Digital zoom | 1x |
| Combined zoom | 20x |
| Field of view (tele) | 4.1° |
| Field of view (wide) | 69.2° |
| Horizontal field of view (tele) | 3.6° |
| Horizontal field of view (wide) | 62.3° |
| Vertical field of view (tele) | 2.1° |
| Vertical field of view (wide) | 37.7° |
| Closest focusing distance | 0.1 m |
| PTZ control | Yes |
| Privacy camera | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| HD type | 4K Ultra HD |
| Resolution at capture speed | 3840x2160@60fps |
| Supported video modes | 720p, 1080p |
| Video formats supported | H.264, H.265 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Product colour | White |

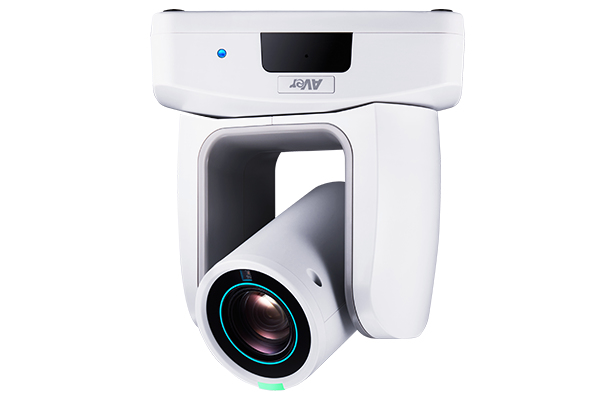

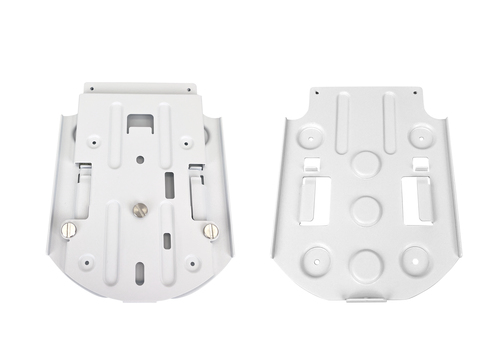

| Mounting type | Table/Ceiling |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| Tilt speed (max) | 100 °/sec |
| Tilt speed (min) | 0.1 °/sec |
| Pan speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |
| Country of origin | Taiwan |

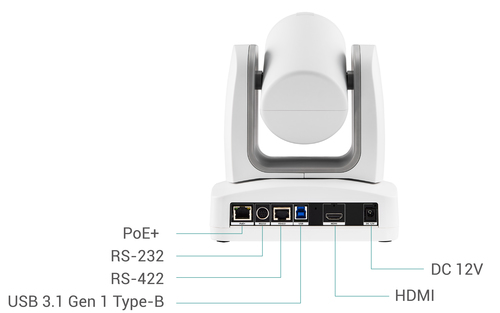

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| RS-232 ports | 1 |
| RS-422 ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC input voltage | 12 V |
| Power consumption (typical) | 24 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Built-in speaker(s) | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet | 72 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 192 mm |
| Height | 180 mm |
| Weight | 800 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 248 mm |
| Package depth | 309 mm |
| Package height | 295 mm |
| Package weight | 2 kg |
