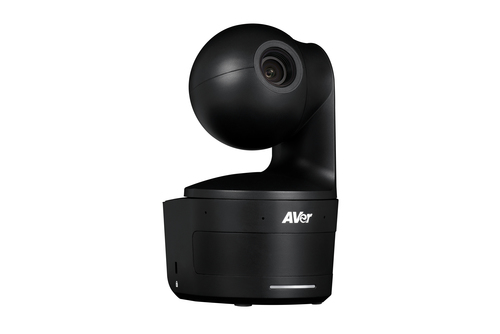

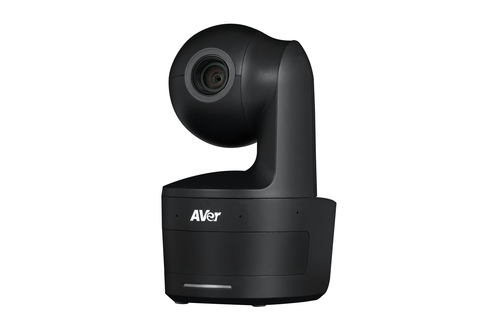

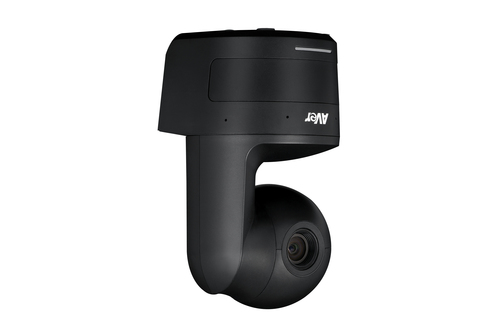

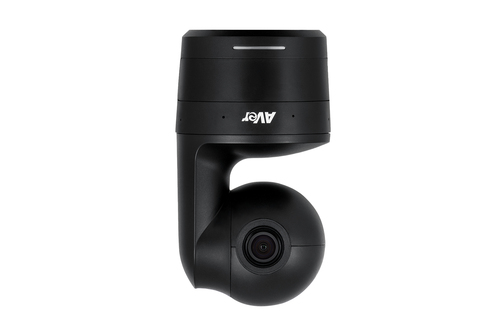

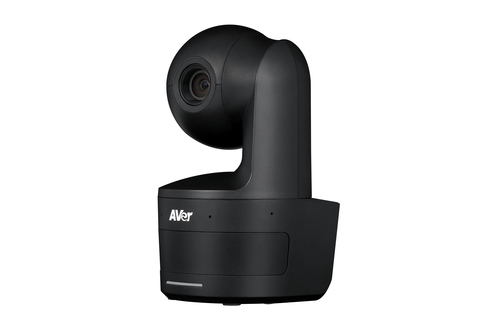

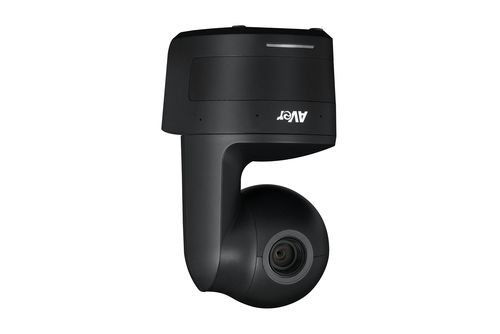

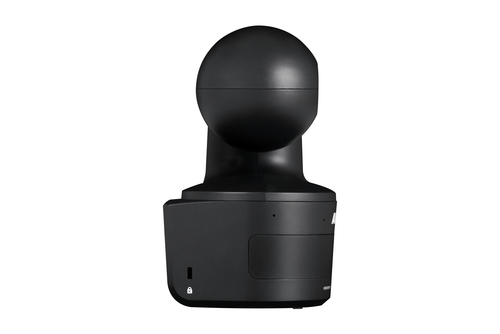

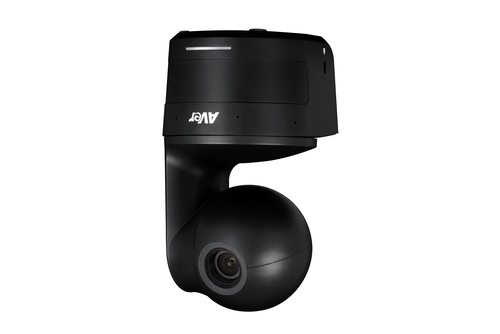

DL10 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Model DL10Part no. 61S9000000ADEAN 4719552127016
70 specifications
- Weight745 g
- ColourBlack
- Megapixel (approx.)2 MP
- Maximum video resolution1920 x 1080 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
- Power source typeDC
Overview
- Weight
- 745 g
- Colour
- Black
- Megapixel (approx.)
- 2 MP
- Maximum video resolution
- 1920 x 1080 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 1
- Power source type
- DC
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- DL10
- Part numbers
- 61S9000000AD, AS35E3RF1AUG1
- EAN / UPC
- 4719552127016
- Also known as
- AVer DL10 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
70 specifications in 12 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 3x |
| Digital zoom | 2x |
| Combined zoom | 6x |
| Field of view (FOV) angle | 90° |
| Field of view (tele) | 51° |
| Field of view (wide) | 82° |
| Focal length range | 3.3 - 9.7 mm |
| Minimum illumination | 0.5 lx |
| Aperture range (F-F) | 2 - 3.7 |
| Closest focusing distance | 0.5 m |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Resolution at capture speed | 1920x1080@60fps |
| Supported video modes | 1080p |
| Video formats supported | H.264, M-JPEG |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Stand |
| Tilt angle range | -90 - 90° |
| Pan range | -170 - 170° |
| Tilt preset speed | 200 °/sec |
| Pan preset speed | 200 °/sec |
| Country of origin | Taiwan |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Line-in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input frequency | 100 - 240 Hz |
| DC input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 11 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Microphone sensitivity | -33 dB |
| Microphone pick-up range | 5 m |
| Audio channels | 2 |
| Audio codecs | AAC-LC (48, 32, 16, 8K), PCM (48K) |
| Supported sample rates | 48 kHz |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | USB |
| Number of screws | 3 |
| Screws included | Yes |
| AC adapter included | Yes |
| Cable ties included | Yes |
| Mounting kit | Yes |
| Number of cable ties | 4 |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 84 pc(s) |
Network
| Specification | Value |
|---|---|
| Network configuration | DHCP, IP Address, Gateway, Subnet Mask, DNS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 238 mm |
| Depth | 231 mm |
| Height | 241 mm |
| Weight | 745 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 485 mm |
| Package depth | 263 mm |
| Package height | 280 mm |
| Package weight | 2.57 kg |
