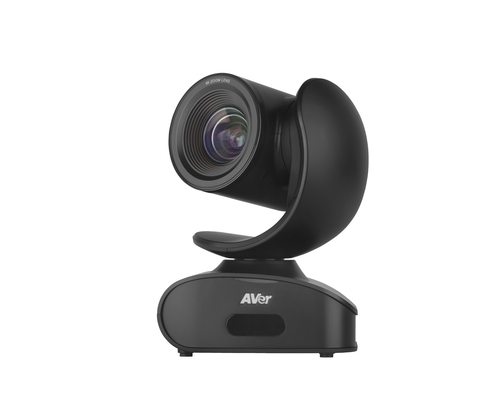

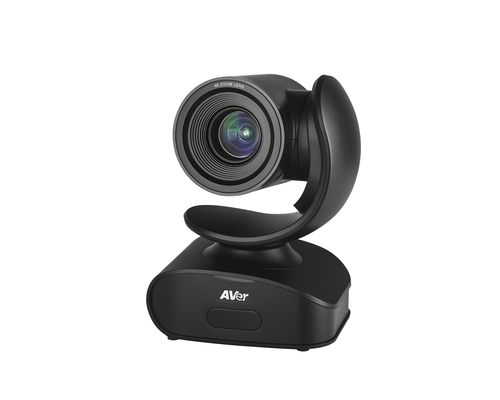

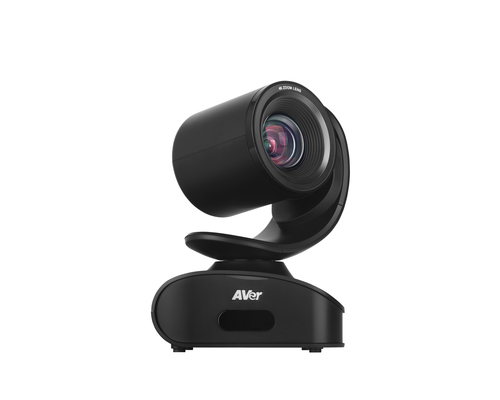

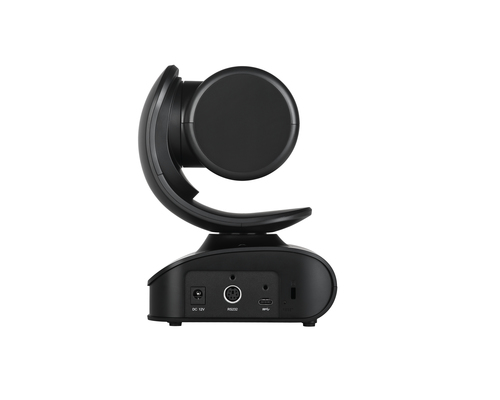

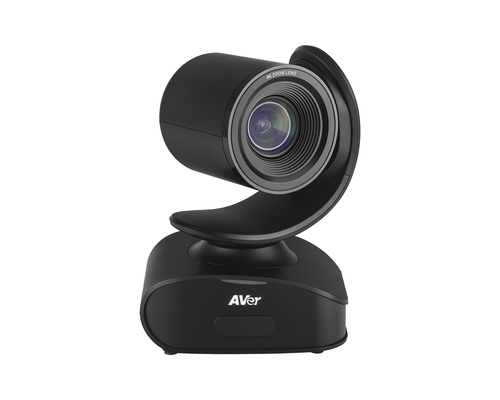

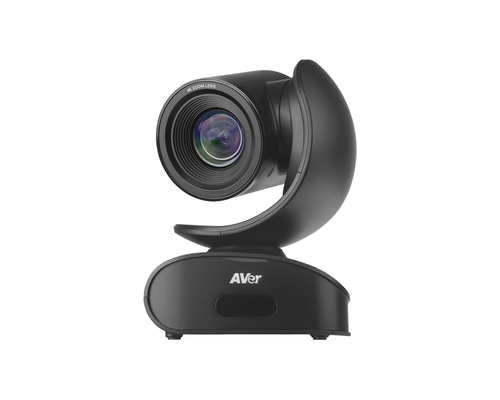

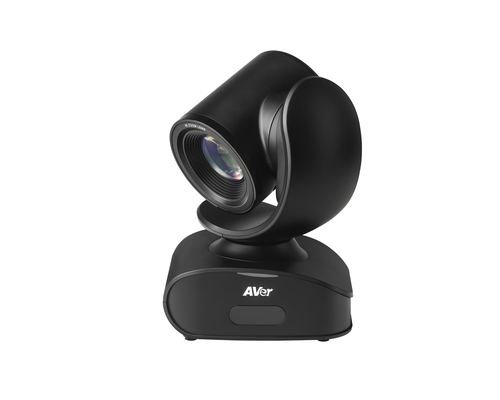

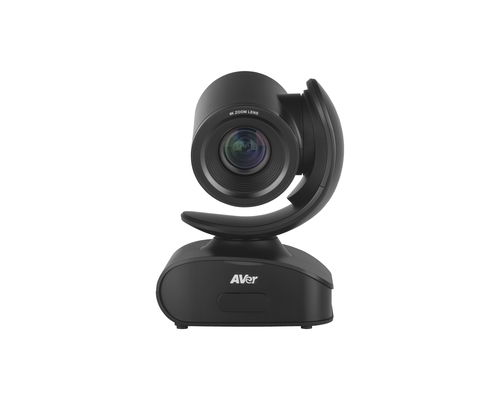

CAM540 Black 60 fps CMOS
Model CAM540Part no. 61U3000000AMEAN 4719552125265
48 specifications
- Weight4.71 kg
- ColourBlack
- Sensor typeCMOS
- Maximum frame rate60 fps
- USB Type-C connectorYes
- Power source typeAC
Overview
- Weight
- 4.71 kg
- Colour
- Black
- Sensor type
- CMOS
- Maximum frame rate
- 60 fps
- USB Type-C connector
- Yes
- Power source type
- AC
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- CAM540
- Part numbers
- 61U3000000AM, CAM540
- EAN / UPC
- 4719552125265, 848090006270
- Also known as
- AVer CAM540 Black 60 fps CMOS
Specifications
48 specifications in 12 groups
Camera
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Combined zoom | 16x |
| Field of view (FOV) angle | 86° |
| Focus adjustment | Auto |
| Back Light Compensation (BLC) | Yes |
| Number of camera presets | 10 |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| Maximum frame rate | 60 fps |
| HD type | 4K Ultra HD |
| Supported video modes | 720p, 1080p, 2160p |
| Video formats supported | M-JPEG, YUV |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -160 - 160° |
| Country of origin | Taiwan |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-C connector | Yes |
| RS-232 input ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| DC input voltage | 12 V |
| Input current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control batteries included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
Performance
| Specification | Value |
|---|---|
| Tripod mounting supported | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 96 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Remote control dimensions (W x H x D) | 200 x 50 x 21 mm |
| Width | 189 mm |
| Depth | 227 mm |
| Height | 261 mm |
| Weight | 4.71 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 240 mm |
| Package depth | 281 mm |
| Package height | 394 mm |
| Package weight | 5.26 kg |
