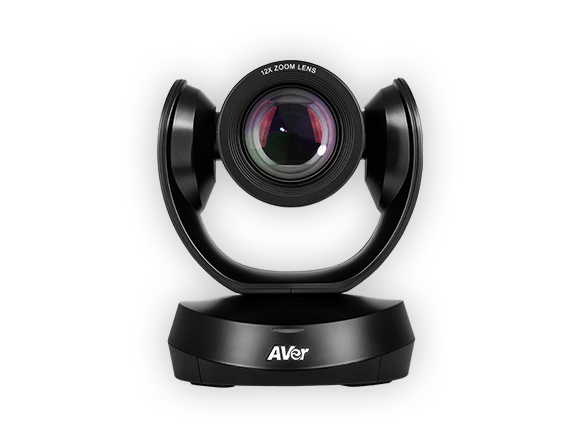

CAM520 Pro2
Model CAM520 Pro2Part no. 61U3410000AFEAN 4719552126613
74 specifications
- Weight1.48 kg
- ColourBlack
- Megapixel (approx.)2 MP
- Maximum video resolution1920 x 1080 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
- Power source typeAC
Overview
- Weight
- 1.48 kg
- Colour
- Black
- Megapixel (approx.)
- 2 MP
- Maximum video resolution
- 1920 x 1080 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 1
- Power source type
- AC
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- CAM520 Pro2
- Part number
- 61U3410000AF
- EAN / UPC
- 4719552126613
- Also known as
- AVer CAM520 Pro2 2 MP Black 1920 x 1080 pixels 60 fps
Specifications
74 specifications in 14 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Optical zoom | 12x |
| Combined zoom | 24x |
| Field of view (FOV) angle | 84.5° |
| Focal length range | 3.9 - 47.3 mm |
| Horizontal field of view | 76° |
| Vertical field of view | 48° |
| Flip & mirror | Yes |
| Aperture range (F-F) | 1.8 - 2.8 |
| White balance | Auto, Manual |
| Closest focusing distance | 1.5 m |
| Wide Dynamic Range (WDR) | Yes |
| Number of camera presets | 10 |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Supported video modes | 240p, 360p, 480p, 720p, 900p, 1080p |
| Video formats supported | M-JPEG, NV12, YUV, YUY2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Stand |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| LED indicators | Status |
| Web-based management | Yes |
| Country of origin | Taiwan |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Input current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Minimum processor family | Core i5 |
| Minimum processor speed | 3.2 GHz |
| Minimum processor | Intel Core i5-4460 |
| Minimum RAM | 4096 MB |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | RTSP, RTMP |
Performance
| Specification | Value |
|---|---|
| Remote control function | Yes |
| Remote control type | IR |
| Plug and Play | Yes |
Packaging content
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Remote control included | Yes |
| Cables included | AC, USB |
| Warranty card | Yes |
| Screws included | Yes |
| Cable ties included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 72 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Remote control dimensions (W x H x D) | 200 x 50 x 21 mm |
| Width | 150 mm |
| Depth | 153 mm |
| Height | 182 mm |
| Weight | 1.48 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 285 mm |
| Package depth | 535 mm |
| Package height | 308 mm |
| Package weight | 7.45 kg |
| Package type | Box |
