CAM520 Pro
Model CAM520 ProPart no. 61U3400000ADEAN 4719552125722
78 specifications
- Weight1.47 kg
- ColourBlack
- Megapixel (approx.)2 MP
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity0
- Power source typeAC
Overview
- Weight
- 1.47 kg
- Colour
- Black
- Megapixel (approx.)
- 2 MP
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 0
- Power source type
- AC
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- CAM520 Pro
- Part number
- 61U3400000AD
- EAN / UPC
- 4719552125722
- Also known as
- AVer CAM520 Pro 2 MP Black 1920 x 1080 pixels 60 fps
Specifications
78 specifications in 14 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Optical zoom | 12x |
| Combined zoom | 18x |
| Field of view (wide) | 82° |
| Focal length range | 3.9 - 47.3 mm |
| Signal-to-Noise Ratio (SNR) | 120 dB |
| Flip & mirror | Yes |
| Aperture range (F-F) | 1.8 - 2.8 |
| White balance | Auto, Manual |
| Closest focusing distance | 1.5 m |
| Wide Dynamic Range (WDR) | Yes |
| Number of camera presets | 10 |
| PTZ control | Yes |
| Aspect ratio | 4:3, 16:9 |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Supported video modes | 240p, 360p, 480p, 720p, 900p, 1080p |
| Video formats supported | H.264, M-JPEG, YUV |
| Supported graphics resolutions | 320 x 240, 480 x 360, 640 x 360, 640 x 480 (VGA), 800 x 448, 848 x 480, 960 x 540, 1280 x 720 (HD 720), 1600 x 900, 1920 x 1080 (HD 1080) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Stand |
| Tilt angle range | -30 - 90° |

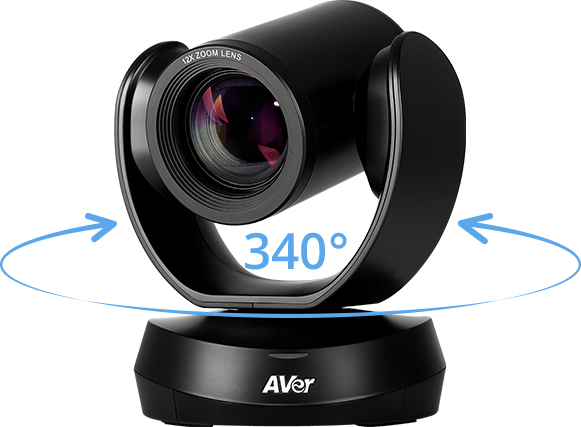

| Pan range | -170 - 170° |
| LED indicators | Status |
| Web-based management | Yes |
| Country of origin | Taiwan |

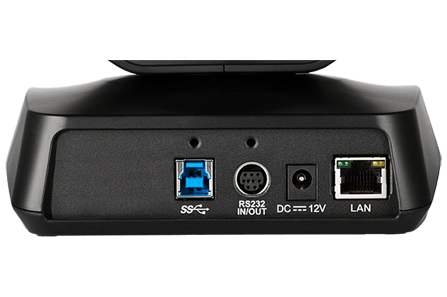

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Input current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home B |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0 |
| Minimum processor family | Core i5 |
| Minimum processor speed | 3.2 GHz |
| Minimum processor | Intel Core i5-4460 |
| Minimum RAM | 4096 MB |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | RTSP, RTMP |
Performance
| Specification | Value |
|---|---|
| Remote control function | Yes |
| Remote control type | IR |
| Plug and Play | Yes |
Packaging content
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Remote control included | Yes |
| Cables included | AC, USB |
| Warranty card | Yes |
| Screws included | Yes |
| Cable ties included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 72 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Remote control dimensions (W x H x D) | 200 x 50 x 21 mm |
| Remote control weight | 90 g |
| Width | 256 mm |
| Depth | 256 mm |
| Height | 274 mm |
| Weight | 1.47 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 275 mm |
| Package depth | 525 mm |
| Package height | 293 mm |
| Package weight | 3.33 kg |
| Package type | Box |
