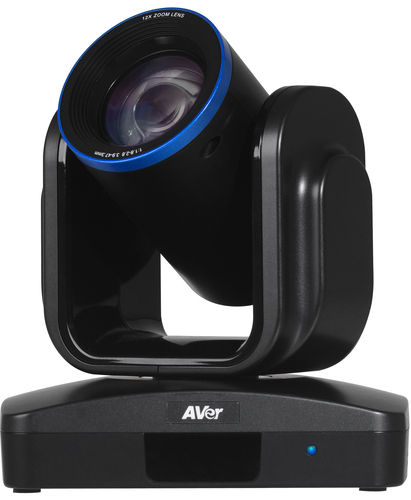

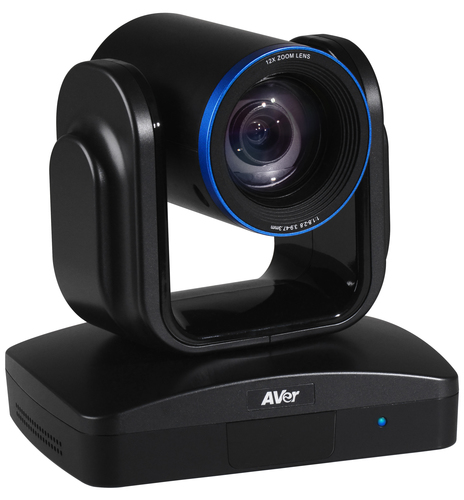

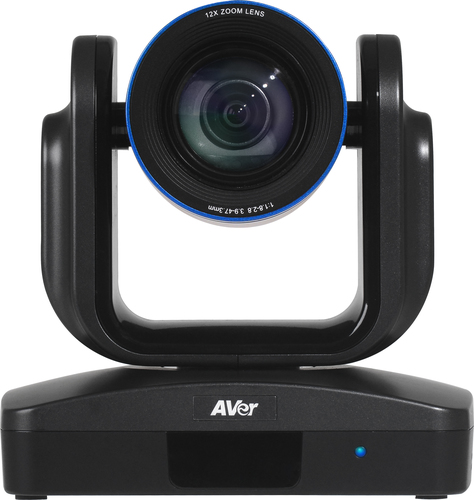

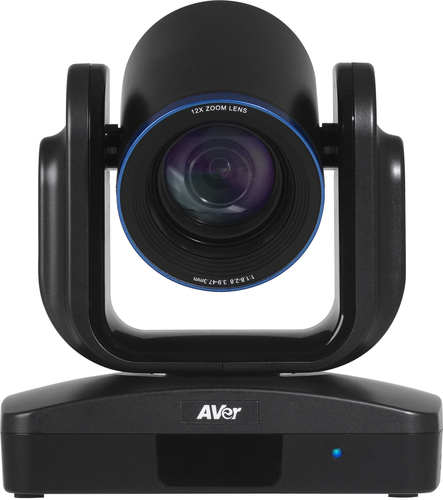

Cam520 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Model Cam520Part no. 61V8U00000B4EAN 4719552123735
71 specifications
- Weight7.76 kg
- ColourBlack
- Megapixel (approx.)2 MP
- Maximum video resolution1920 x 1080 pixels
- USB 2.0 ports quantity1
- AC input voltage100 - 240 V
Overview
- Weight
- 7.76 kg
- Colour
- Black
- Megapixel (approx.)
- 2 MP
- Maximum video resolution
- 1920 x 1080 pixels
- USB 2.0 ports quantity
- 1
- AC input voltage
- 100 - 240 V
- Brand
- AVer
- Category
- Video Conferencing Camera
- Model
- Cam520
- Part number
- 61V8U00000B4
- EAN / UPC
- 4719552123735
- Also known as
- AVer Cam520 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
Specifications
71 specifications in 13 groups
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 12x |
| Digital zoom | 6x |
| Combined zoom | 18x |
| Field of view (tele) | 6.3° |
| Field of view (wide) | 72.5° |
| Focal length range | 3.9 - 47.3 mm |
| Minimum illumination | 1 lx |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Flip & mirror | Yes |
| Progressive scan | Yes |
| Aperture range (F-F) | 1.8 - 2.8 |
| Closest focusing distance | 1.5 m |
| Back Light Compensation (BLC) | Yes |
| Number of camera presets | 10 |
| PTZ control | Yes |
| 3D NR (Noise Reduction) | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Supported video modes | 720p, 1080p |
| Video formats supported | YUV, AVC, H.264, M-JPEG |
| Supported graphics resolutions | 160 x 120, 320 x 240, 640 x 480 (VGA), 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Tilt angle range | -25 - 90° |
| Pan range | -130 - 130° |
| LED indicators | Power |
| Country of origin | Taiwan |

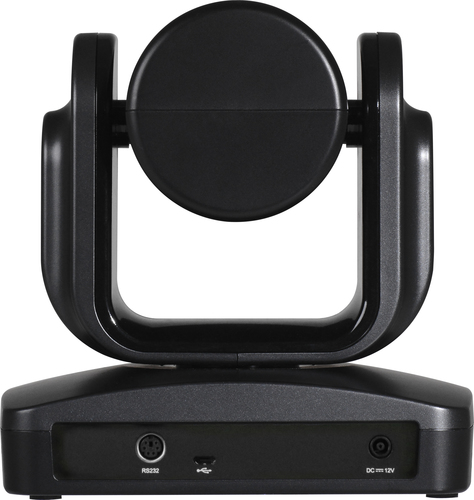

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Input current | 4 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Other operating systems supported | ChromeOS |
| Minimum processor family | Core 2 Duo |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM | 2048 MB |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | USB |
| Number of screws | 1 |
| Screws included | Yes |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Velcro cable strap | Yes |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 72 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Remote control dimensions (W x H x D) | 200 x 50 x 20 mm |
| Remote control weight | 91 g |
| Width | 180 mm |
| Depth | 140 mm |
| Height | 182 mm |
| Weight | 7.76 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 275 mm |
| Package depth | 293 mm |
| Package height | 525 mm |
| Package weight | 8.5 kg |
