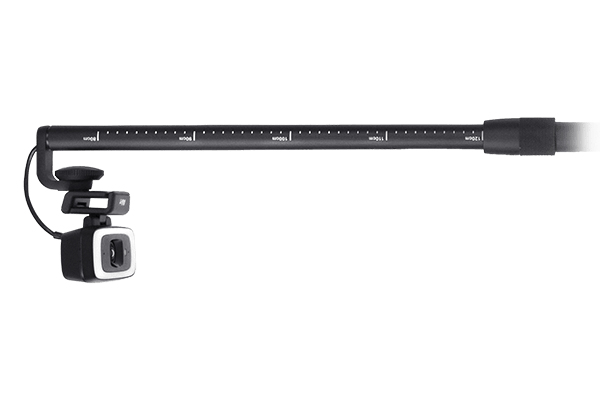

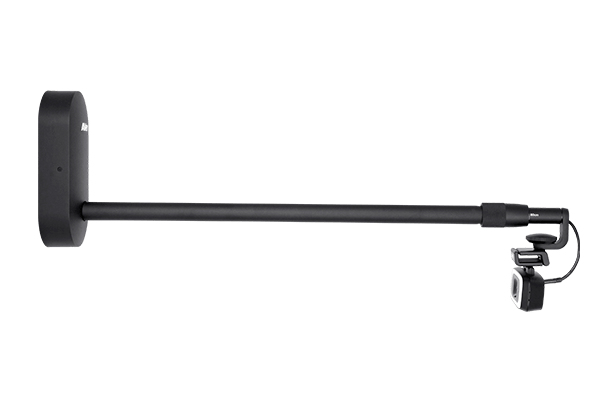

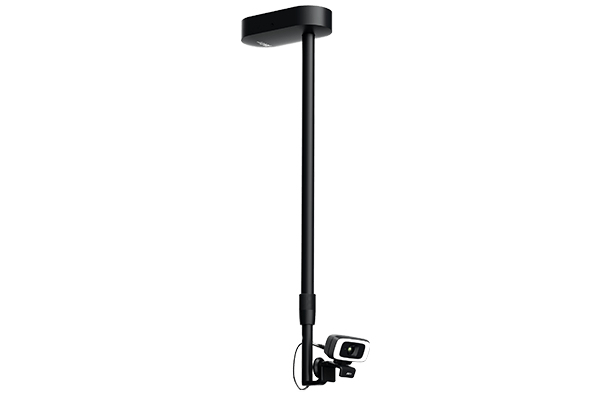

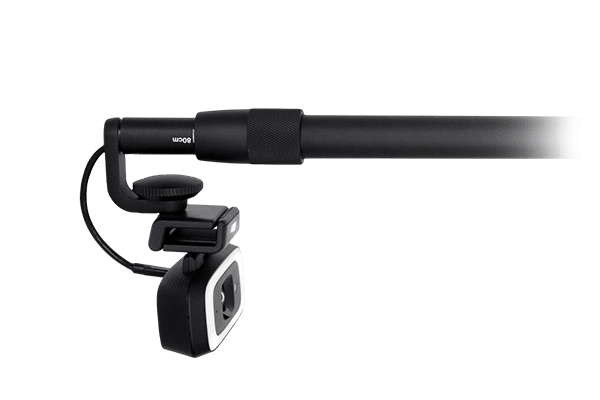

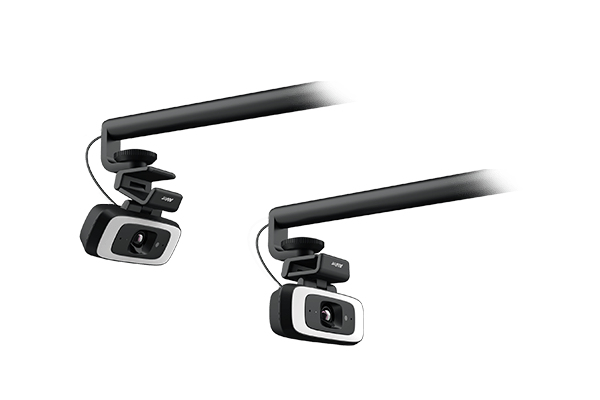

AVer CAM130 Content Camera: Full Specifications

Overview

Weight: 2.67 kg
Colour: Black
Camera type: Single camera
Maximum video resolution: 3840 x 2160 pixels
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Power source type: AC

Brand: AVer
Category: Video Conferencing Camera
Model: CAM130 Content Camera
Part number: 61U3700000AS
EAN / UPC: 4719552127375
Also known as: AVer CAM130 Content Camera Black 3840 x 2160 pixels 30 fps

Specifications

45 specifications in 11 groups

Camera

Specification	Value
Camera type	Single camera
Zoom capability	Yes
Optical zoom	5x
Field of view (FOV) angle	120°
Closest focusing distance	0.6 m

Video

Specification	Value
Maximum video resolution	3840 x 2160 pixels
Maximum frame rate	30 fps
HD type	4K Ultra HD
Resolution at capture speed	3840x2160@30fps
Supported video modes	240p, 360p, 480p, 720p, 900p, 1080p, 2160p
Video formats supported	YUV, YUY2
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 848 x 480, 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1600 x 900, 1920 x 1080 (HD 1080), 3840 x 2160

Design

Specification	Value
Product colour	Black
Country of origin	Taiwan

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Type-C connector	Yes
DC-in jack	Yes

Power

Specification	Value
Power source type	AC
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Operating current	2 A
Operating voltage	5 V

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

Audio

Specification	Value
Built-in microphone	Yes
Number of microphones	2
Microphone frequency response	100 - 12000 Hz
Microphone sensitivity	-39 dB

Performance

Specification	Value
Remote control type	IR
Tripod mounting supported	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington

Logistics data

Specification	Value
Harmonized System (HS) code	8517691000
Products per master (outer) case	1 pc(s)
Products per pallet	56 pc(s)

Weight & dimensions

Specification	Value
Width	170 mm
Depth	860 mm
Height	240 mm
Weight	2.67 kg

Packaging data

Specification	Value
Package width	170 mm
Package depth	860 mm
Package height	240 mm
Package weight	4.67 kg
