TVM 1649
Model TVM 1649Part no. 1816490EAN 8712285356629
18 specifications
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Compliance certificatesTÜV mark
Overview
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Compliance certificates
- TÜV mark
- Brand
- Vogel's
- Category
- TV Mounts & Stands
- Model
- TVM 1649
- Part number
- 1816490
- EAN / UPC
- 8712285356629
- Also known as
- Vogel's TVM 1649 195.6 cm (77") Black
Specifications
18 specifications in 4 groups
Mounting

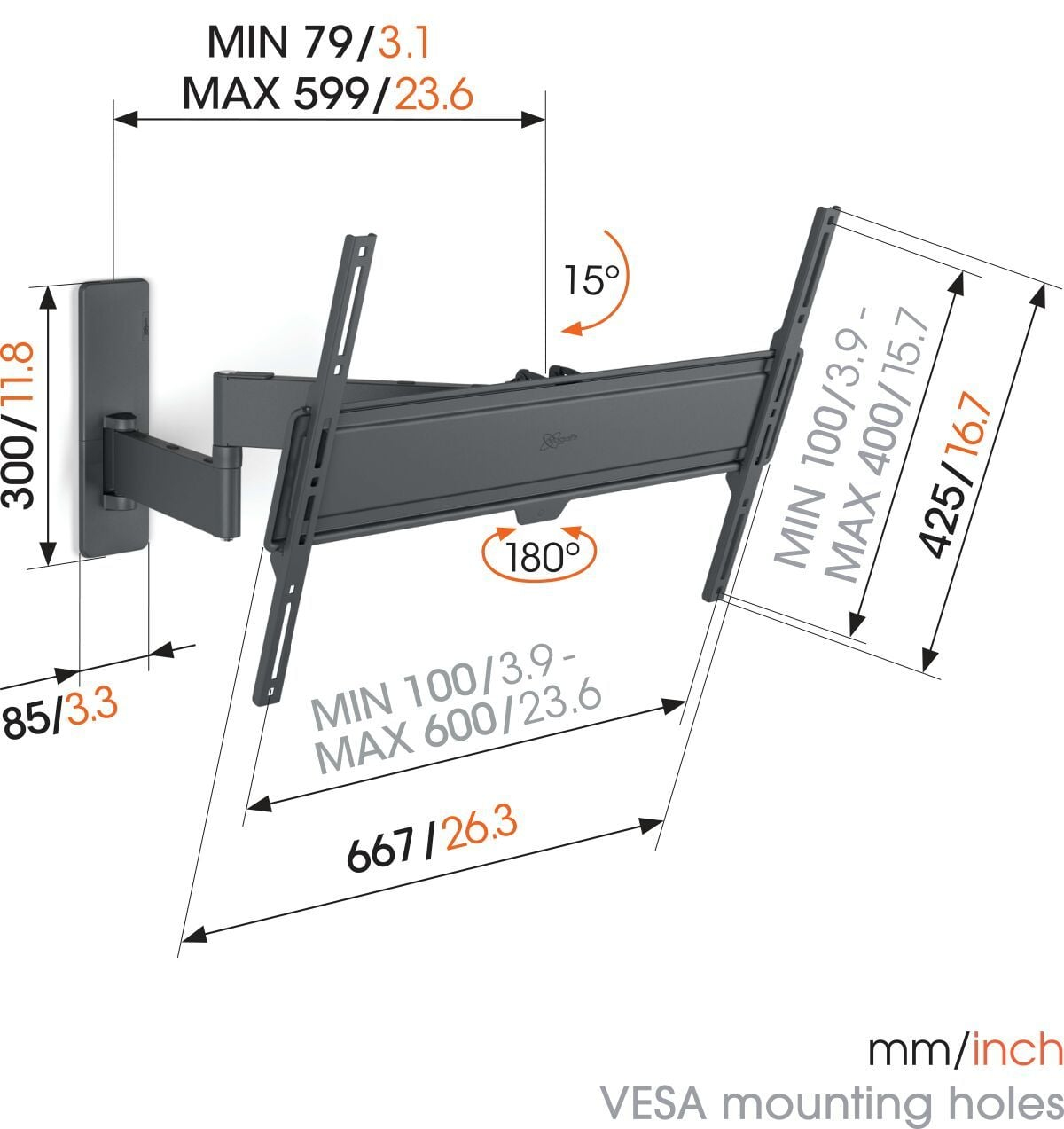

| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 35 kg |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 101.6 cm (40") |
| Maximum screen size | 195.6 cm (77") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,500 x 400,500 x 200,500 x 300,600 x 200,600 x 300,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|

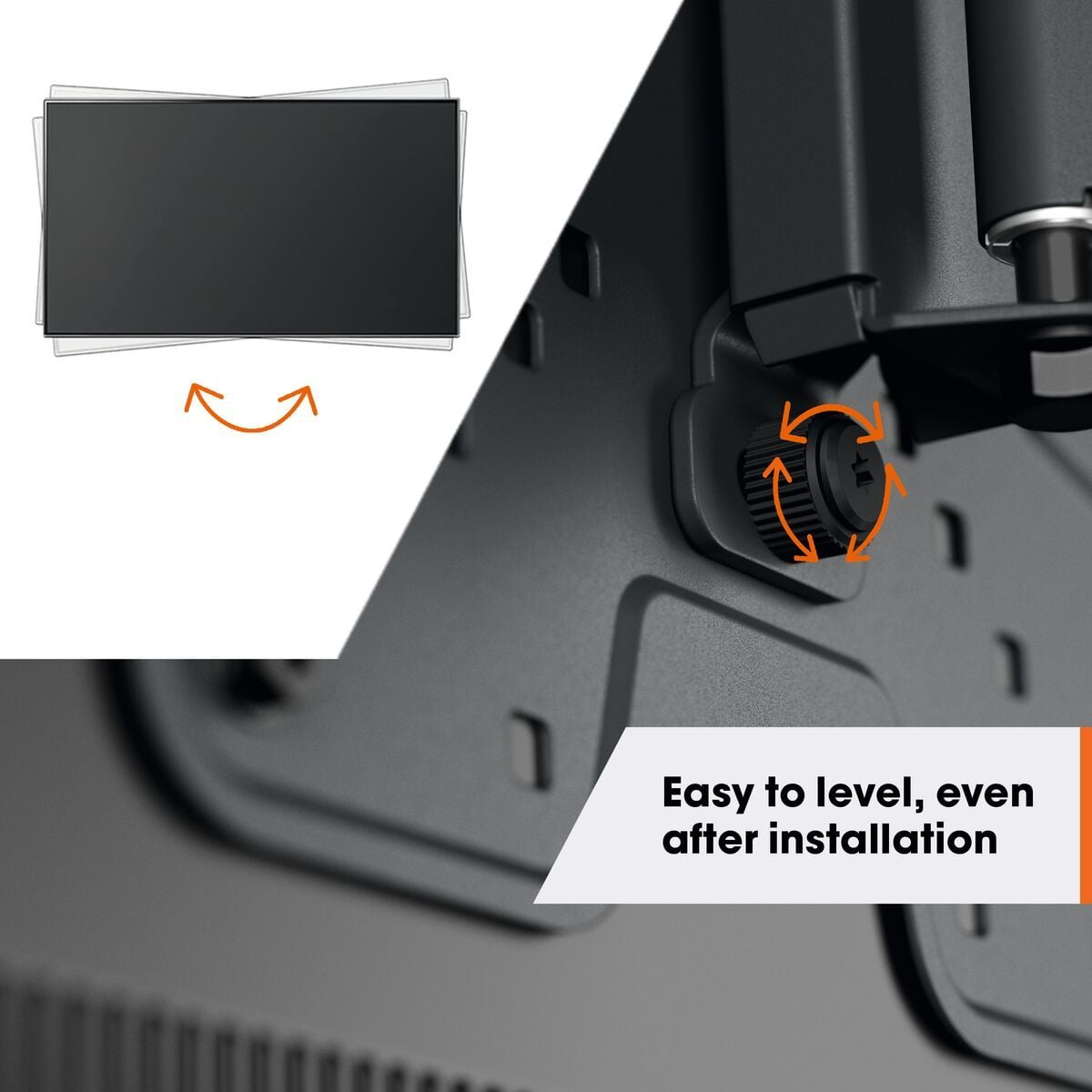

| Tilt adjustment | Yes |
| Rotating | Yes |
| Angle of rotation | 180° |
| Number of pivot points | 3 |
| Tilt angle | 15° |

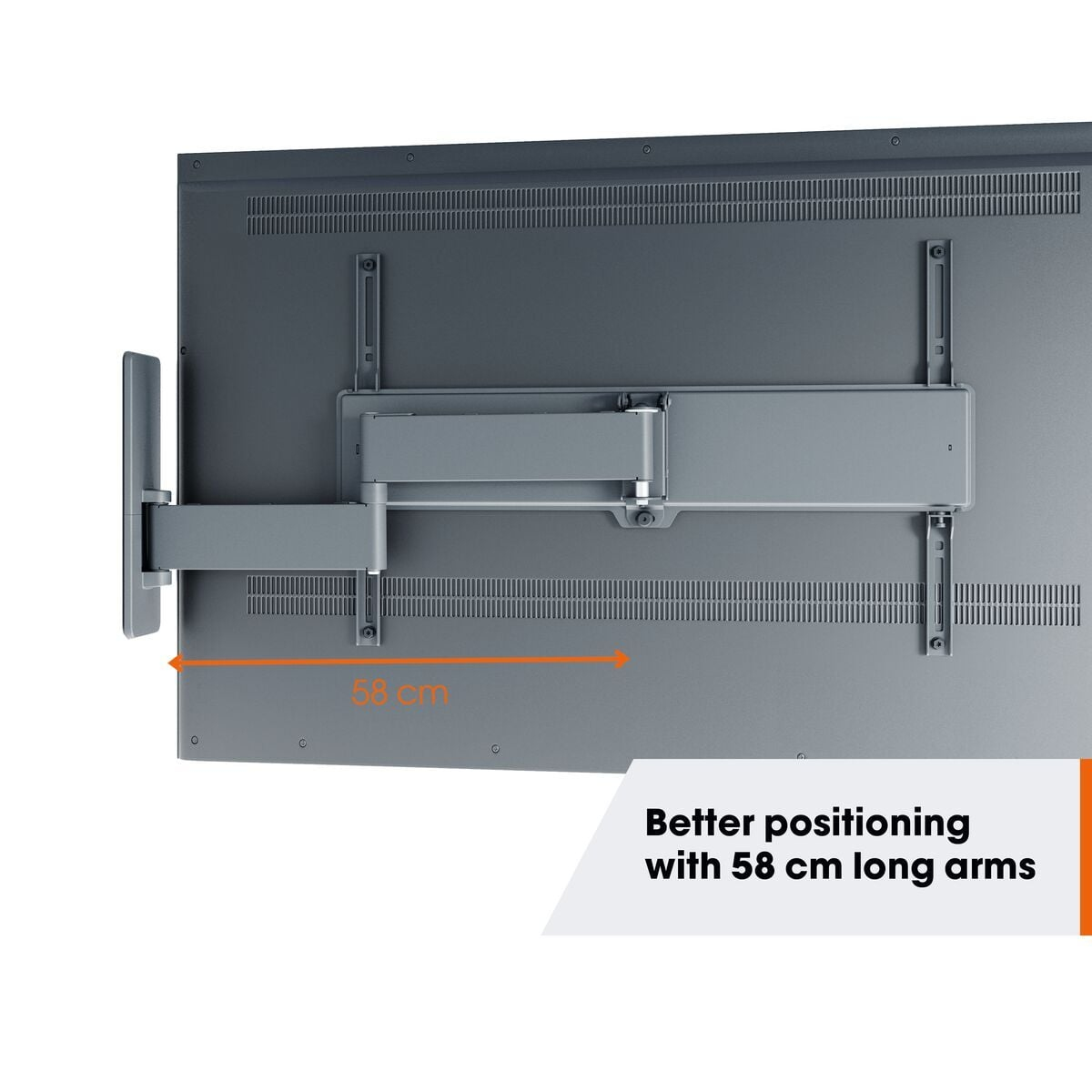

| Distance to the wall (max) | 59.9 cm |
| Distance to the wall (min) | 7.9 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
