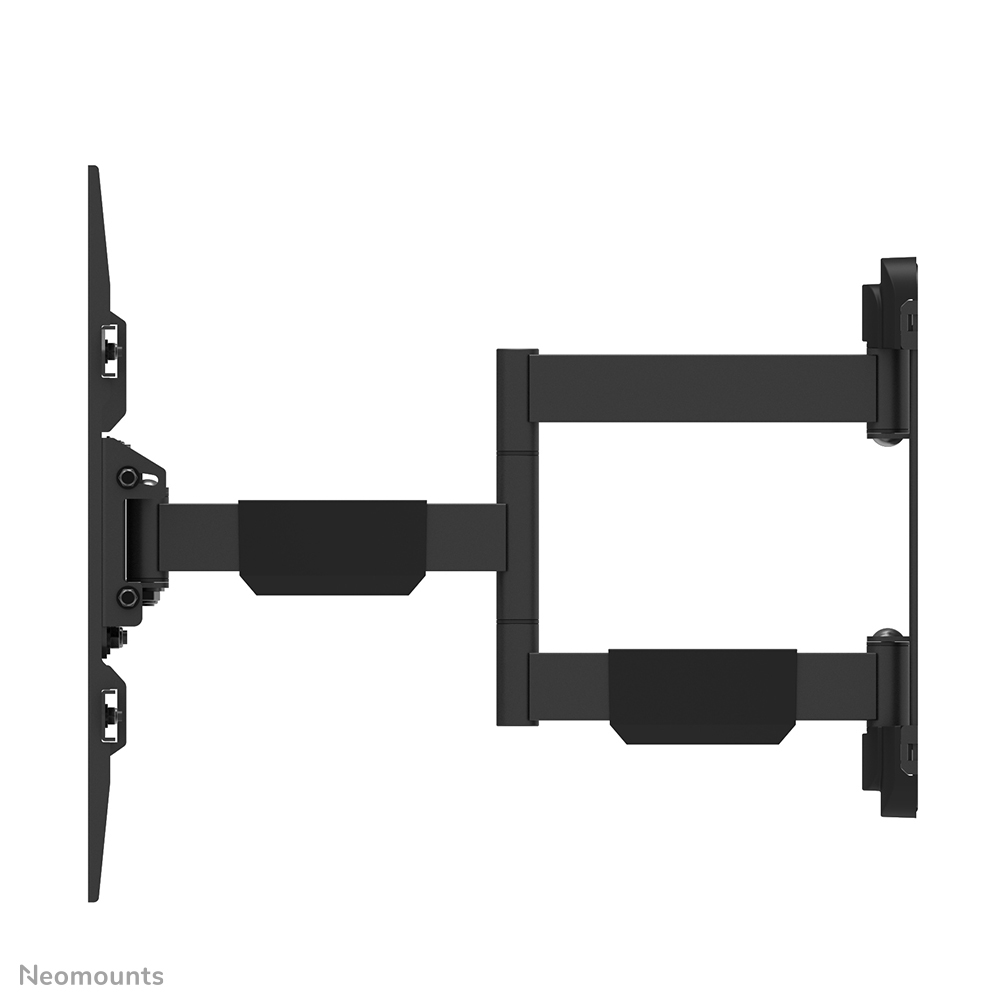

Neomounts WL40-550BL16 TV mount wall 40-65" - full motion - easy install

WL40-550BL16 TV mount wall 40-65" - full motion - easy install

Model WL40-550BL16EAN 8717371448745

46 specifications

TypeFull motion
Weight5 kg
ColourBlack
Number of displays supported1
Height adjustmentNo
Country of originChina

See all specifications

Overview

Type: Full motion
Weight: 5 kg
Colour: Black
Number of displays supported: 1
Height adjustment: No
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: WL40-550BL16
Part number: WL40-550BL16
EAN / UPC: 8717371448745
Also known as: Neomounts WL40-550BL16 TV mount wall 40-65" - full motion - easy install

Specifications

46 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	40 kg
Maximum weight capacity	40 kg
Minimum screen size	101.6 cm (40")
Maximum screen size	165.1 cm (65")
Mounting type	Wall
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,600 x 300,600 x 200,600 x 400

Ergonomics

Specification	Value
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-2 - 12°
Swivelling	Yes
Swivel angle	40°
Swivel angle range	-45 - 45°
Rotating	Yes
Angle of rotation	6°
Pivot angle	-3 - 3°
Cable management	Yes
Type	Full motion
Distance to the wall (max)	49 cm
Distance to the wall (min)	5.3 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Packaging content

Specification	Value
Mounting kit	Yes

Technical details

Specification	Value
Country of origin	China
Quantity per pack	1 pc(s)
Lockable	Not lockable
Package net weight	6.6 kg

Weight & dimensions

Specification	Value
Width	660 mm
Depth	53 mm
Depth (max)	5.3 cm
Height	436 mm
Weight	5 kg

Packaging data

Specification	Value
Package width	684 mm
Package depth	323 mm
Package height	56 mm
Package weight	6.6 kg

Logistics data

Specification	Value
Master (outer) case width	704 mm
Master (outer) case length	185 mm
Master (outer) case height	343 mm
Master (outer) case gross weight	20.4 kg
Master (outer) case net weight	18 kg
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	72 pc(s)
