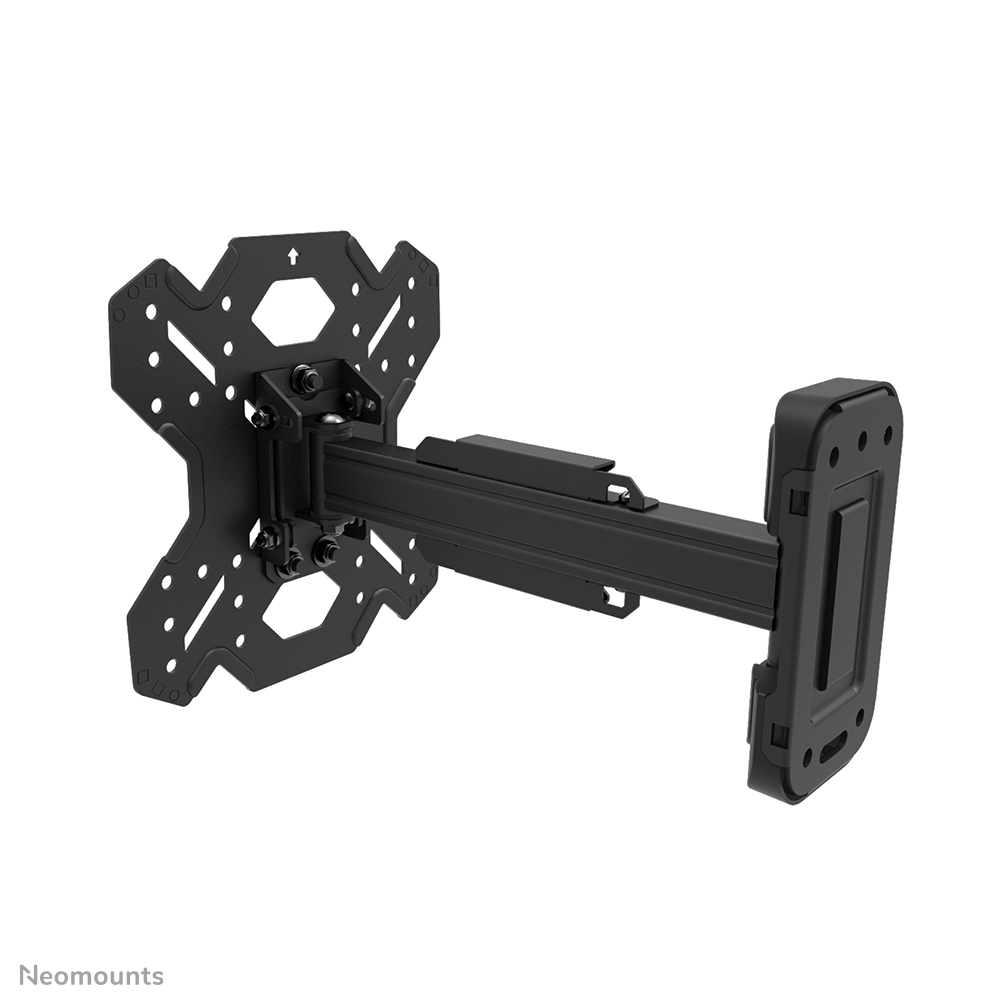

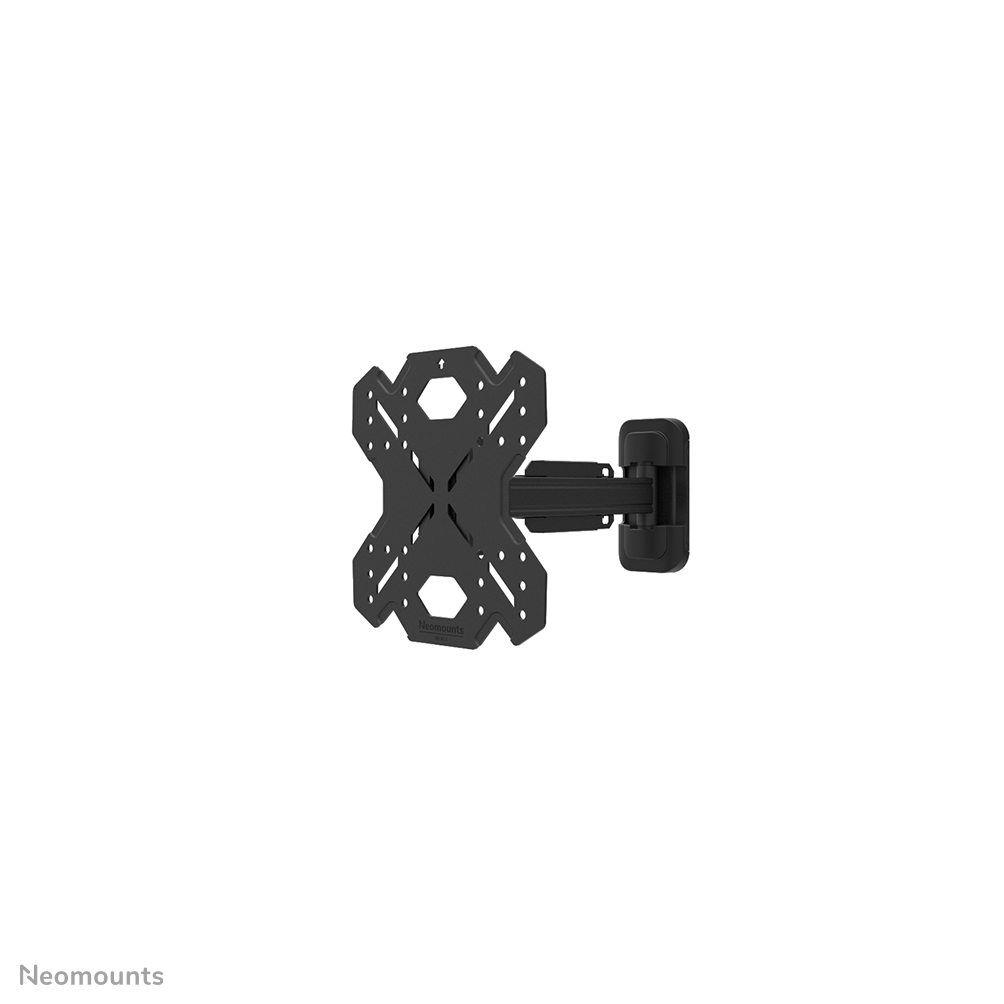

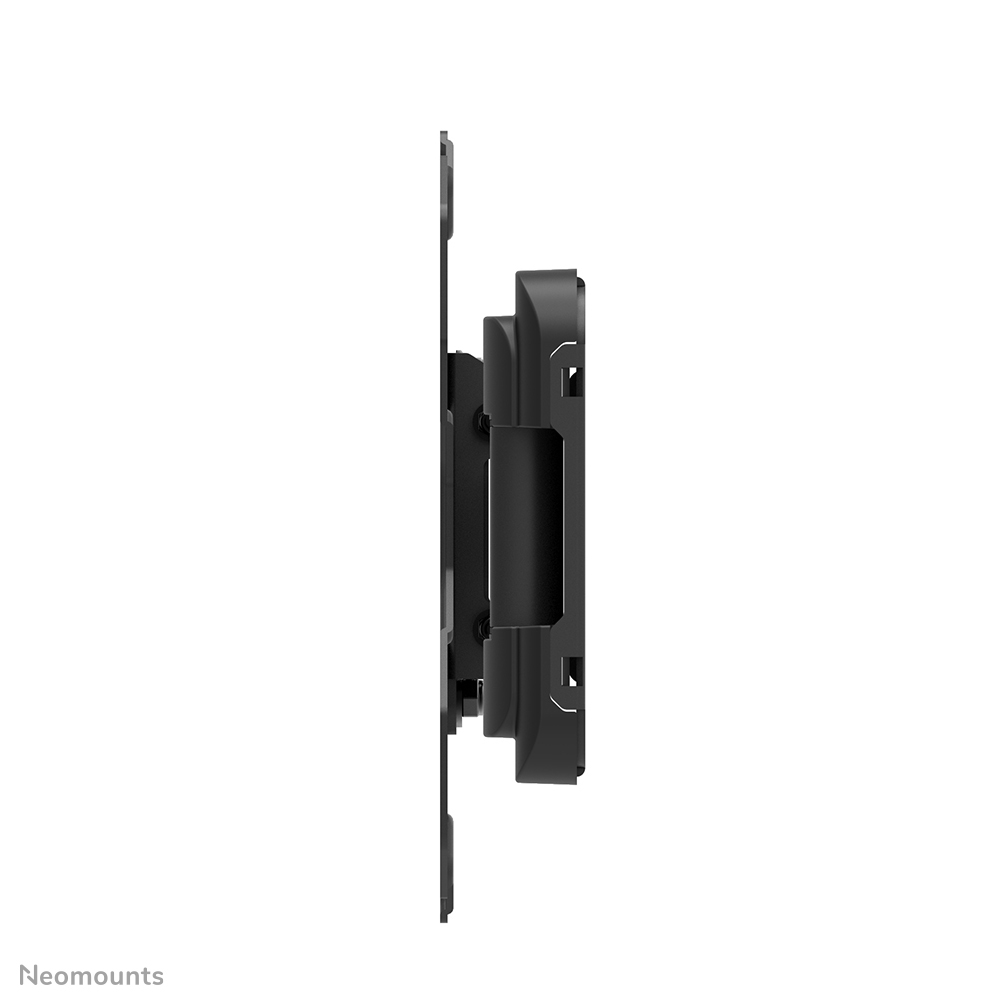

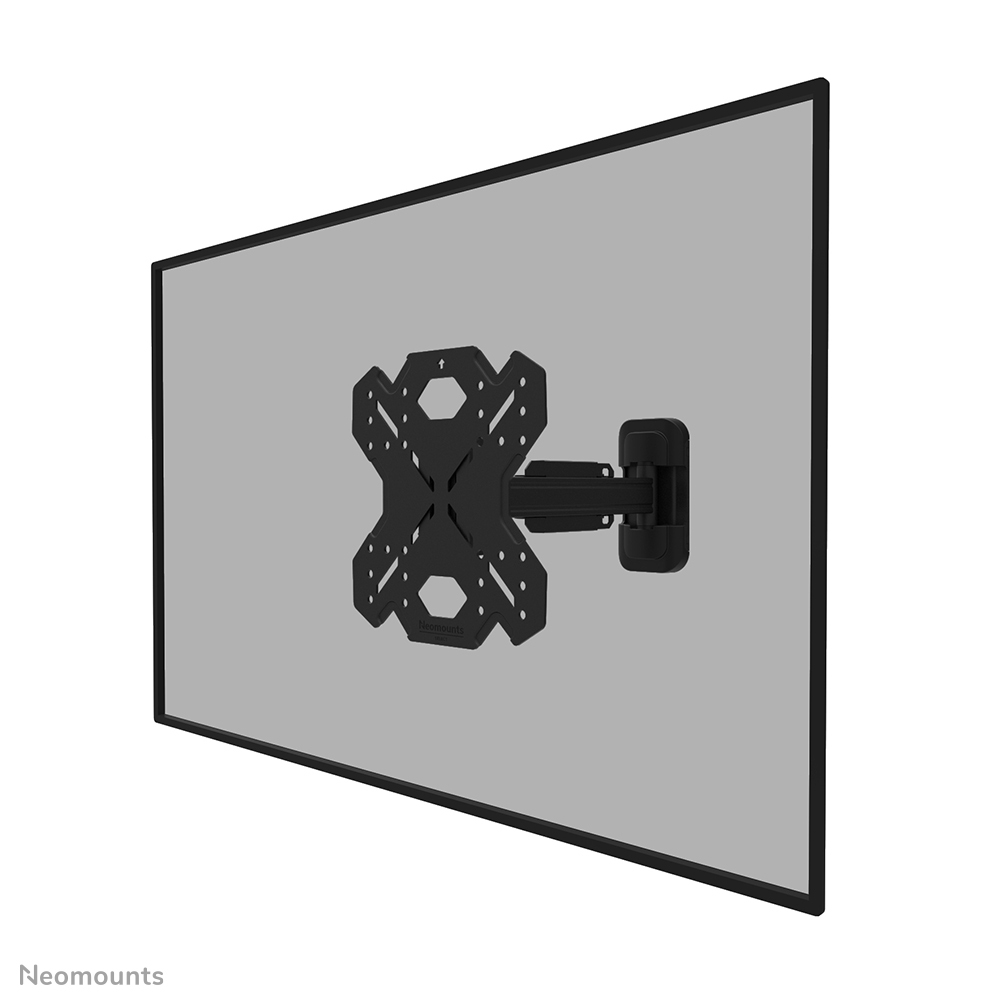

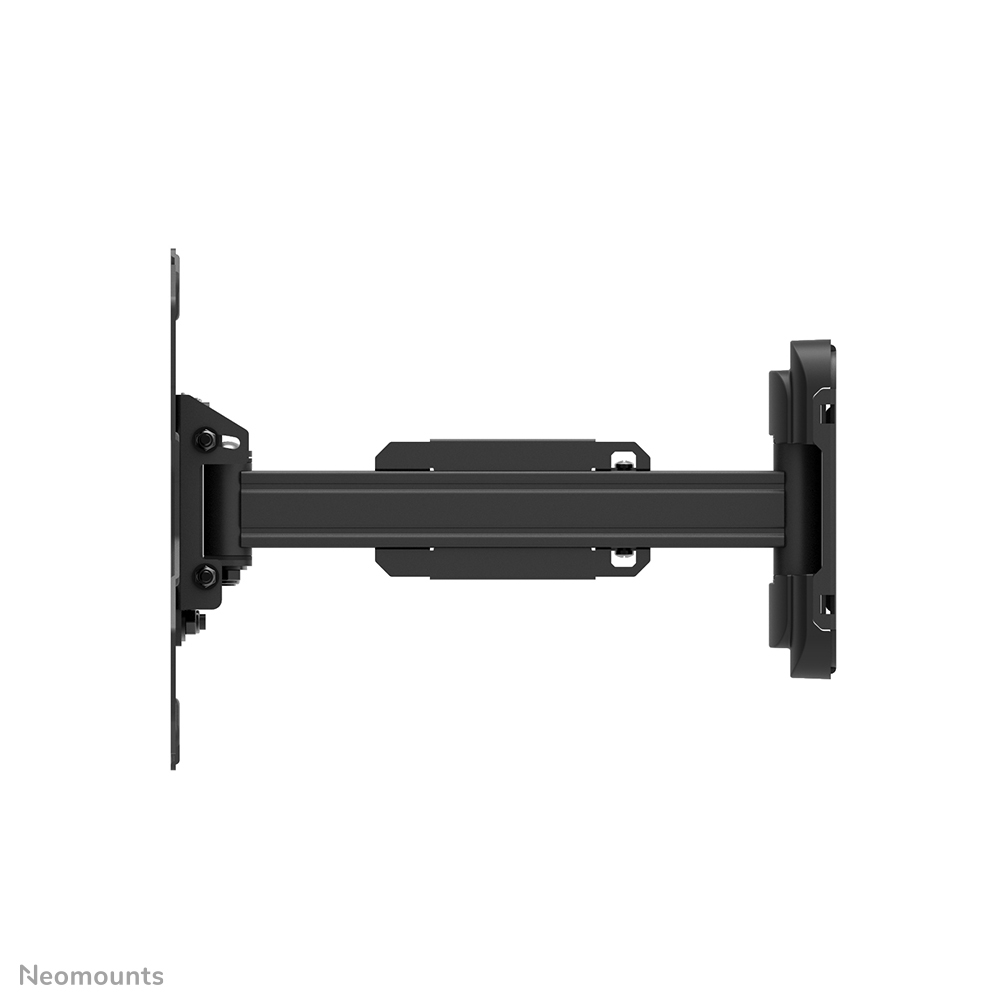

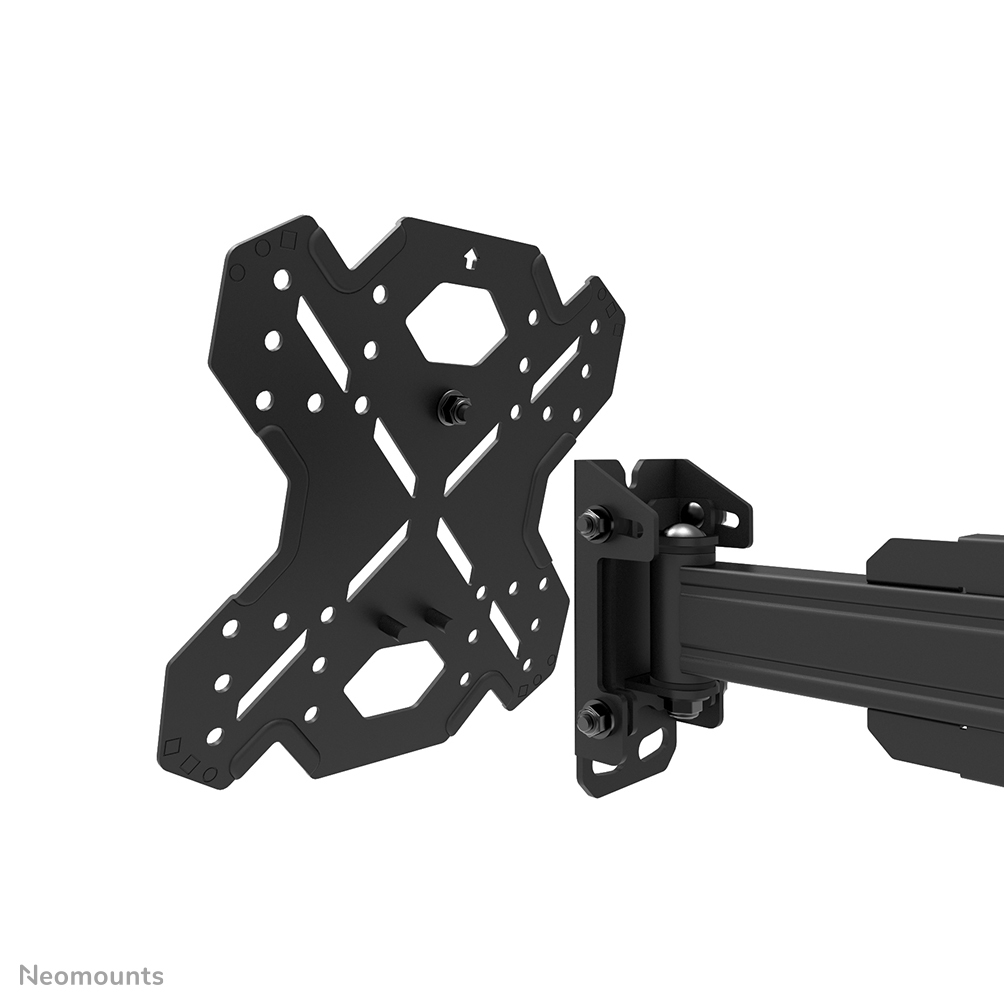

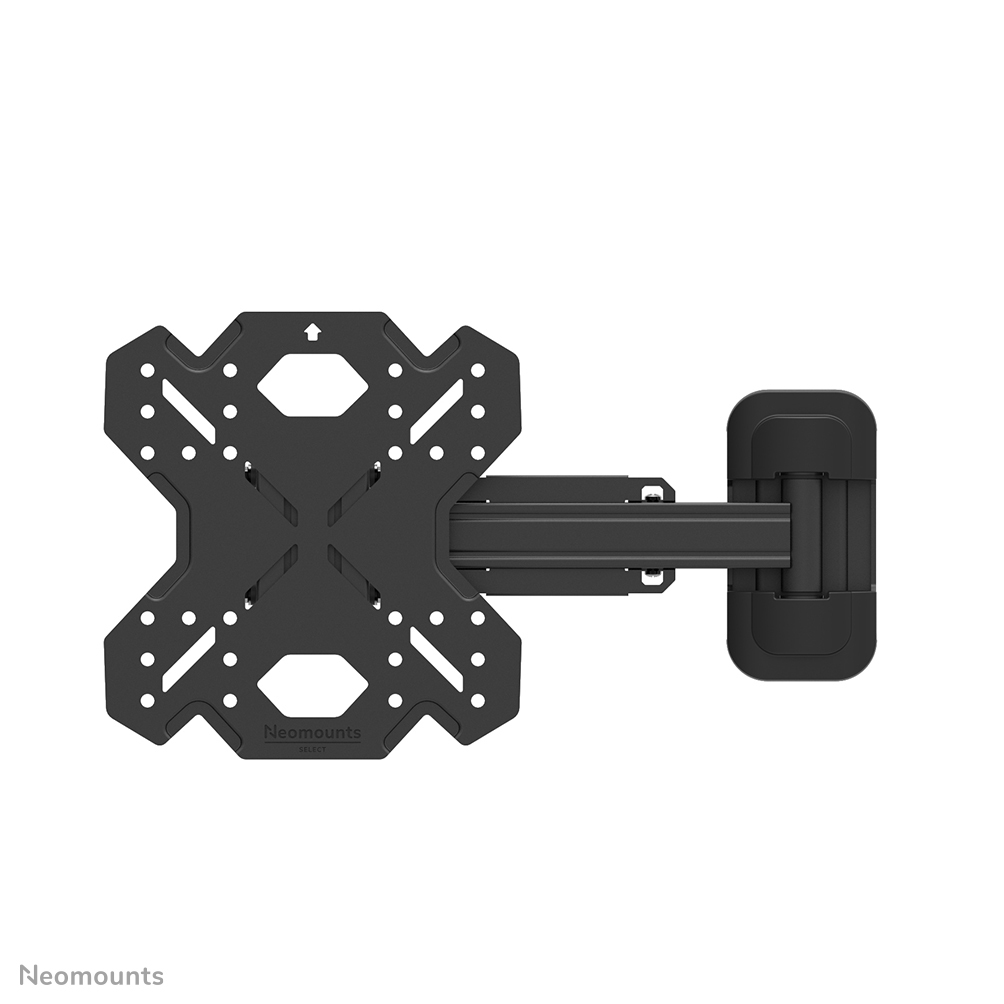

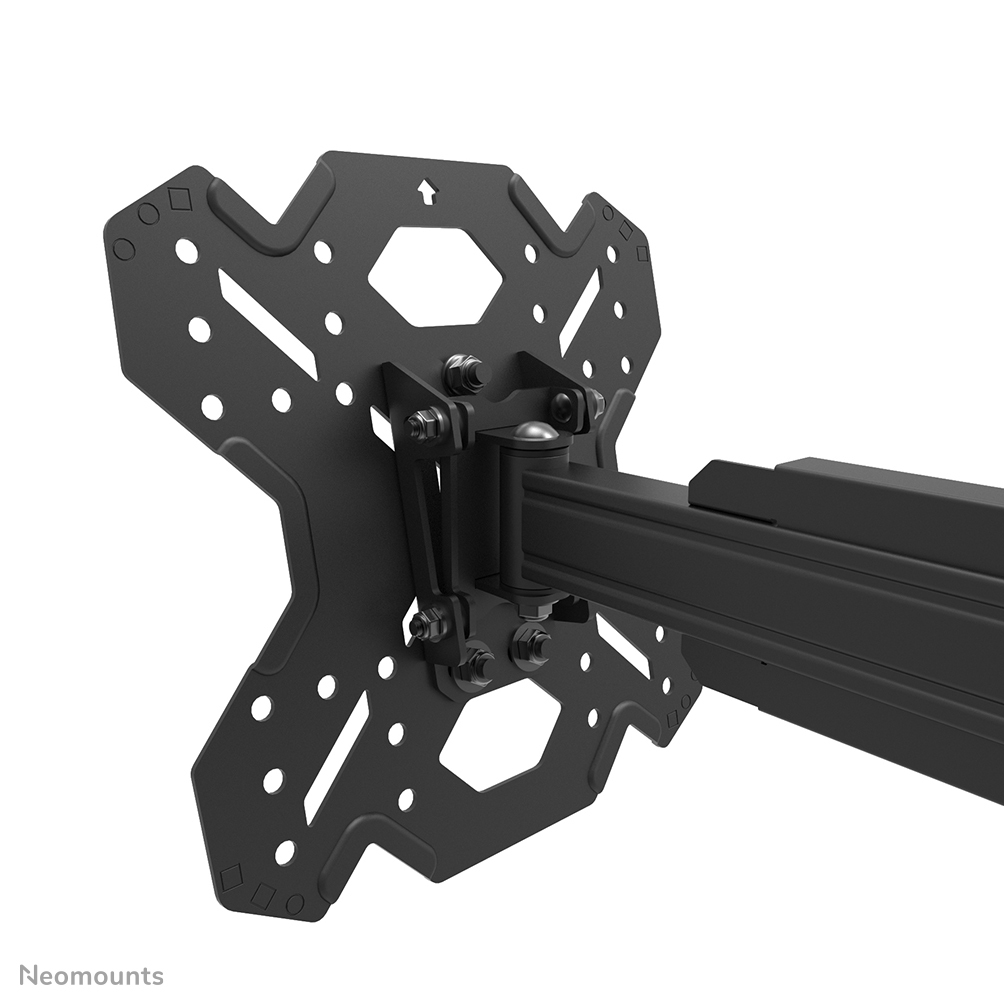

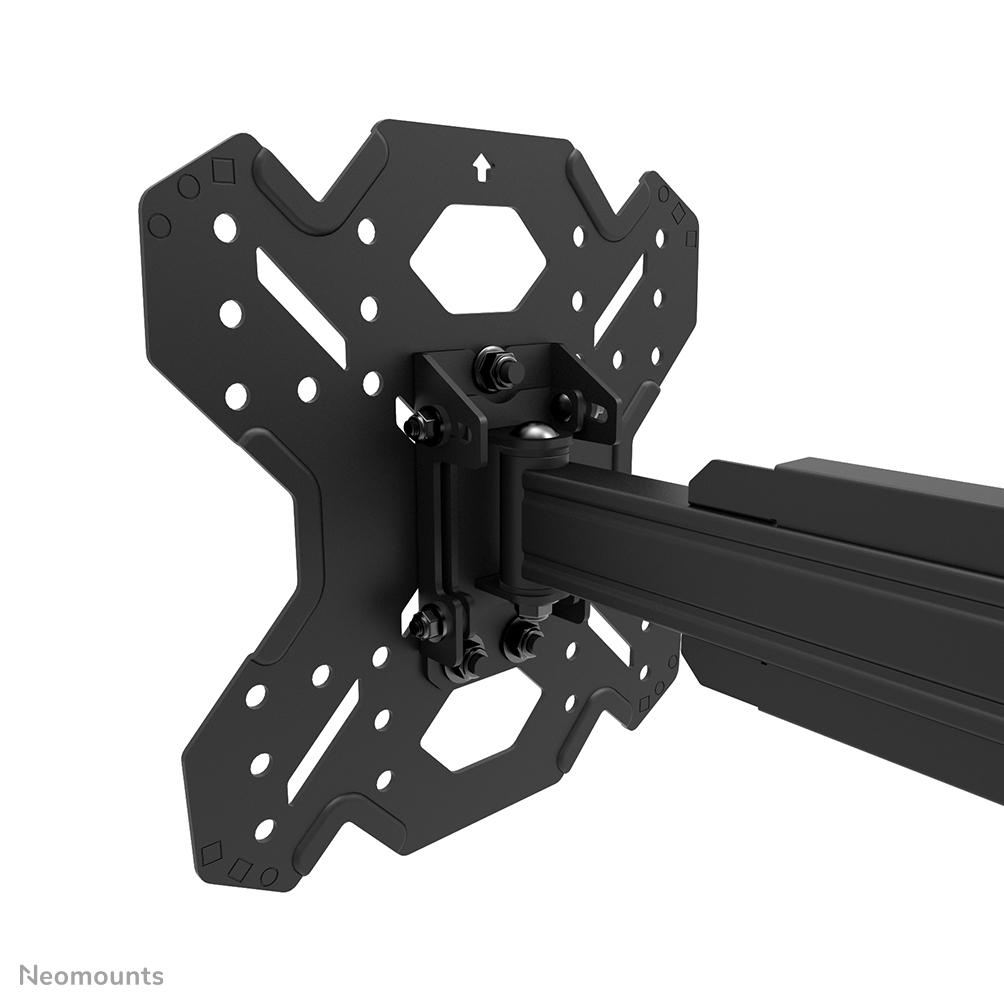

WL40S-840BL12 TV mount wall 32-55" - full motion - fast installation
Model WL40S-840BL12EAN 8717371448806
48 specifications
- TypeFull motion
- Weight2.95 kg
- ColourBlack
- Number of displays supported1
- Height adjustmentNo
- Country of originChina
Overview
- Type
- Full motion
- Weight
- 2.95 kg
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- No
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- WL40S-840BL12
- Part number
- WL40S-840BL12
- EAN / UPC
- 8717371448806
- Also known as
- Neomounts WL40S-840BL12 TV mount wall 32-55" - full motion - fast installation
Specifications
48 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 40 kg |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 200,100 x 100,100 x 150,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Swivelling | Yes |
| Swivel angle | 30° |
| Swivel angle range | 0 - 30° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Cable management | Yes |
| Type | Full motion |
| Distance to the wall (max) | 34.5 cm |
| Distance to the wall (min) | 4.9 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Packaging content
| Specification | Value |
|---|---|
| Hex key included | Yes |
| Mounting kit | Yes |
| Number of wrenches included | 1 |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Package net weight | 4.1 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 252 mm |
| Depth | 49 mm |
| Depth (max) | 4.9 cm |
| Height | 271 mm |
| Weight | 2.95 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 511 mm |
| Package depth | 332 mm |
| Package height | 62 mm |
| Package weight | 4.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 530 mm |
| Master (outer) case length | 267 mm |
| Master (outer) case height | 352 mm |
| Master (outer) case gross weight | 16.9 kg |
| Master (outer) case net weight | 13 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 96 pc(s) |
