TVM 1249
Model TVM 1249Part no. 1812490EAN 8712285348860
20 specifications
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Compliance certificatesTÜV mark
- Width241 mm
Overview
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Compliance certificates
- TÜV mark
- Width
- 241 mm
- Brand
- Vogel's
- Category
- TV Mounts & Stands
- Model
- TVM 1249
- Part number
- 1812490
- EAN / UPC
- 8712285348860
- Also known as
- Vogel's TVM 1249 109.2 cm (43") Black
Specifications
20 specifications in 5 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 15 kg |
| Maximum weight capacity | 15 kg |
| Minimum screen size | 48.3 cm (19") |
| Maximum screen size | 109.2 cm (43") |
| Mounting type | Wall |

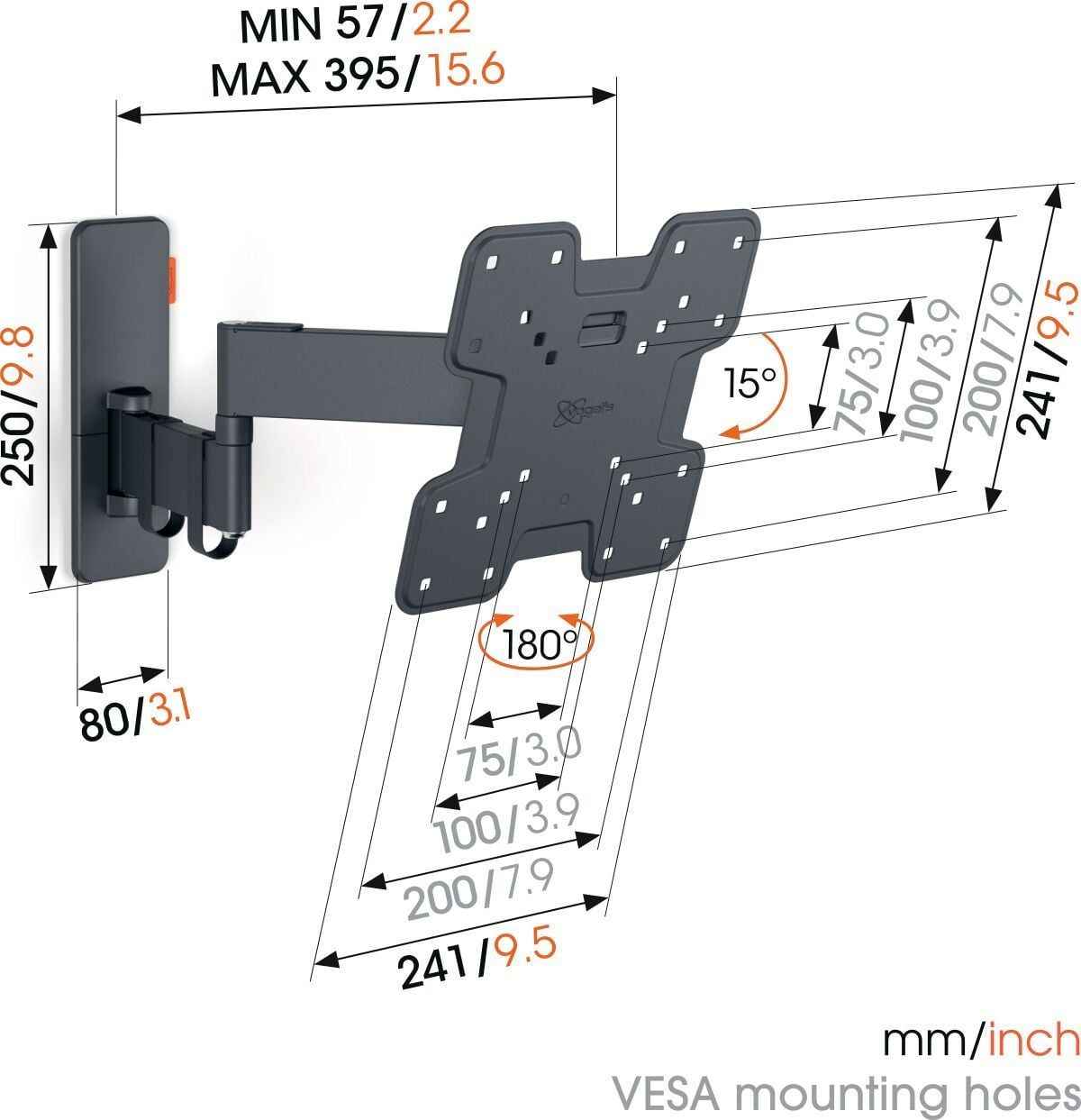

| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,100 x 200,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Rotating | Yes |
| Angle of rotation | 180° |
| Number of pivot points | 3 |
| Tilt angle | 15° |

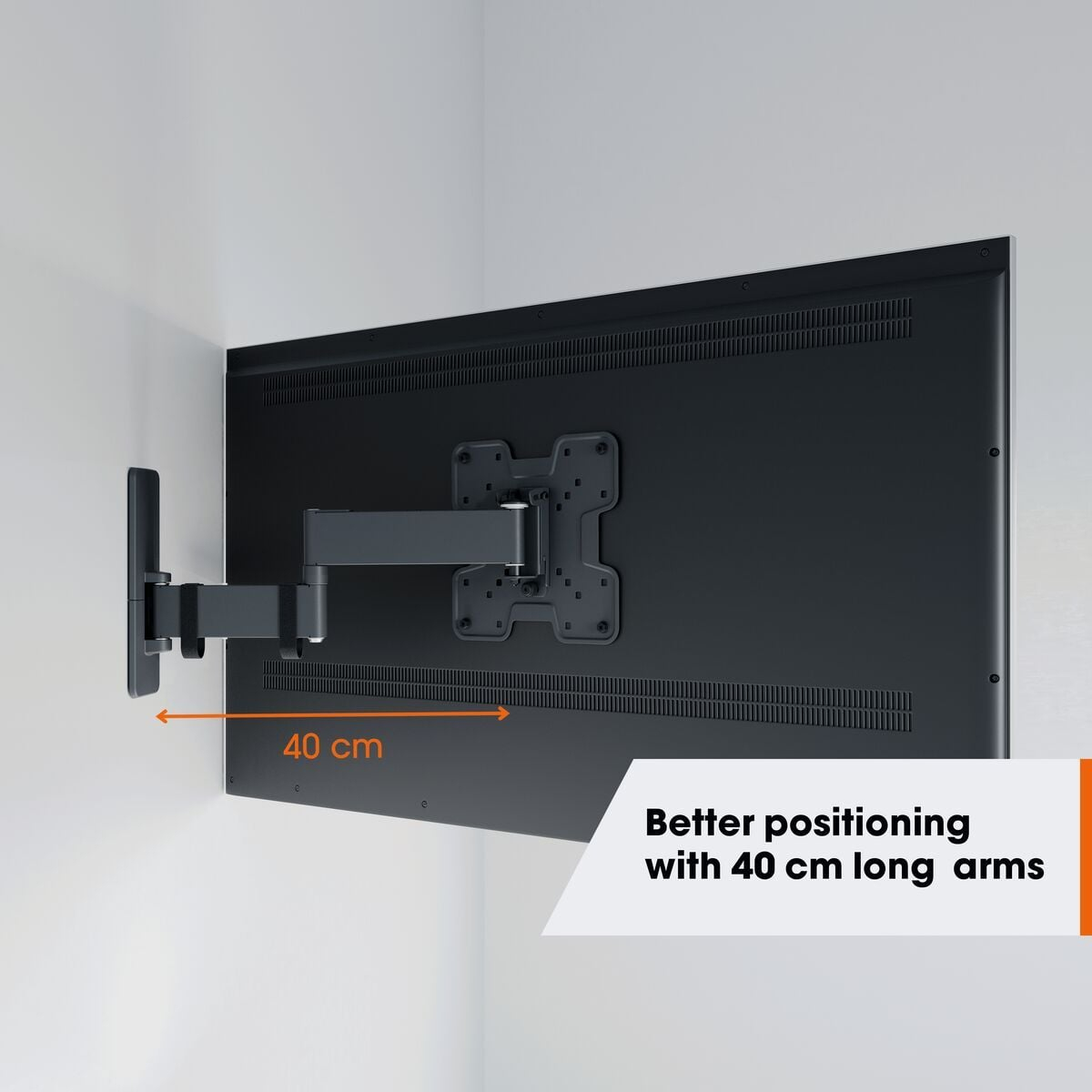

| Distance to the wall (max) | 39.5 cm |
| Distance to the wall (min) | 5.7 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 241 mm |
| Height | 241 mm |
