TVM 1209
Model TVM 1209Part no. 1812090EAN 8712285348204
15 specifications
- ColourBlack
- Number of displays supported1
- Built-in spirit levelYes
- Compliance certificatesTÜV mark
- Width293 mm
Overview
- Colour
- Black
- Number of displays supported
- 1
- Built-in spirit level
- Yes
- Compliance certificates
- TÜV mark
- Width
- 293 mm
- Brand
- Vogel's
- Category
- TV Mounts & Stands
- Model
- TVM 1209
- Part number
- 1812090
- EAN / UPC
- 8712285348204
- Also known as
- Vogel's TVM 1209 127 cm (50") Black
Specifications
15 specifications in 5 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 30 kg |
| Maximum weight capacity | 30 kg |
| Minimum screen size | 48.3 cm (19") |
| Maximum screen size | 127 cm (50") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,100 x 200,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Built-in spirit level | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |

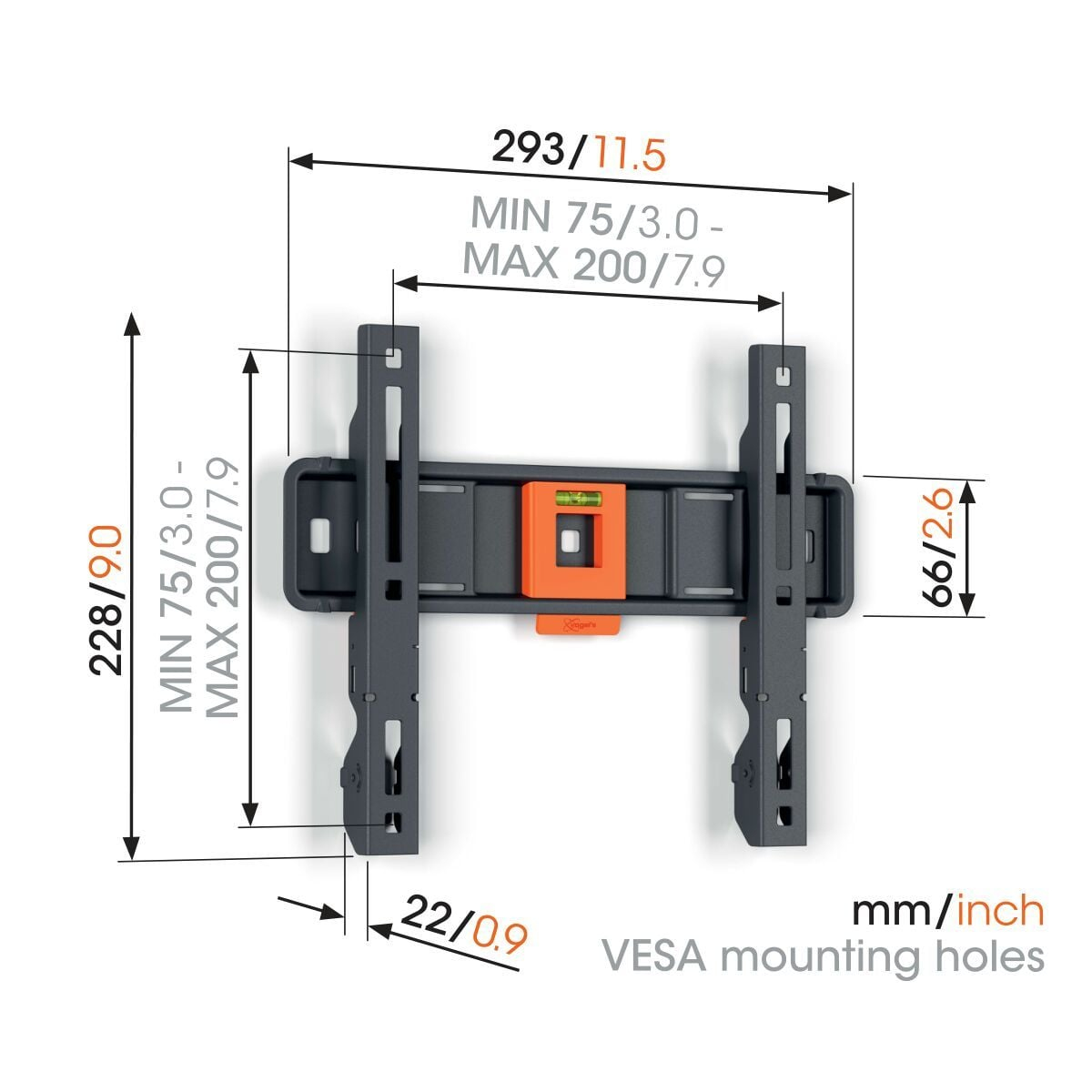

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 293 mm |
| Depth (min) | 2.2 cm |
| Height | 228 mm |
