PHW 400M
Model PHW 400MPart no. 6302400EAN 8712285320804
12 specifications
- ColourBlack
- Maximum weight capacity30 kg
- Tilt angle range-15 - 15°
- Width400 mm
Overview
- Colour
- Black
- Maximum weight capacity
- 30 kg
- Tilt angle range
- -15 - 15°
- Width
- 400 mm
- Brand
- Vogel's
- Category
- TV Mounts & Stands
- Model
- PHW 400M
- Part number
- 6302400
- EAN / UPC
- 8712285320804, 8712285320811
- Also known as
- Vogel's PHW 400M 94 cm (37") Black
Specifications
12 specifications in 4 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 30 kg |
| Minimum screen size | 66 cm (26") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Wall |
| Panel mounting interface | 200 x 200 mm |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -15 - 15° |

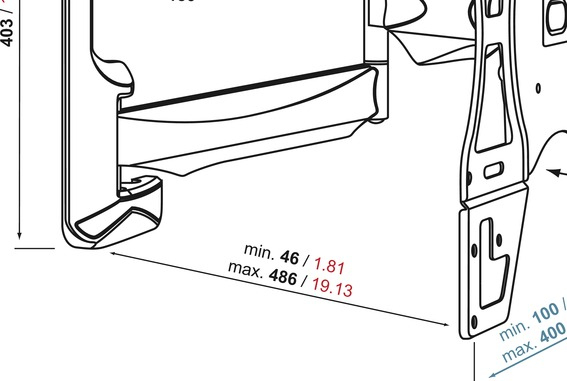

| Distance to the wall (max) | 48.6 cm |
| Distance to the wall (min) | 4.6 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 400 mm |
| Depth | 486 mm |
| Height | 422 mm |
