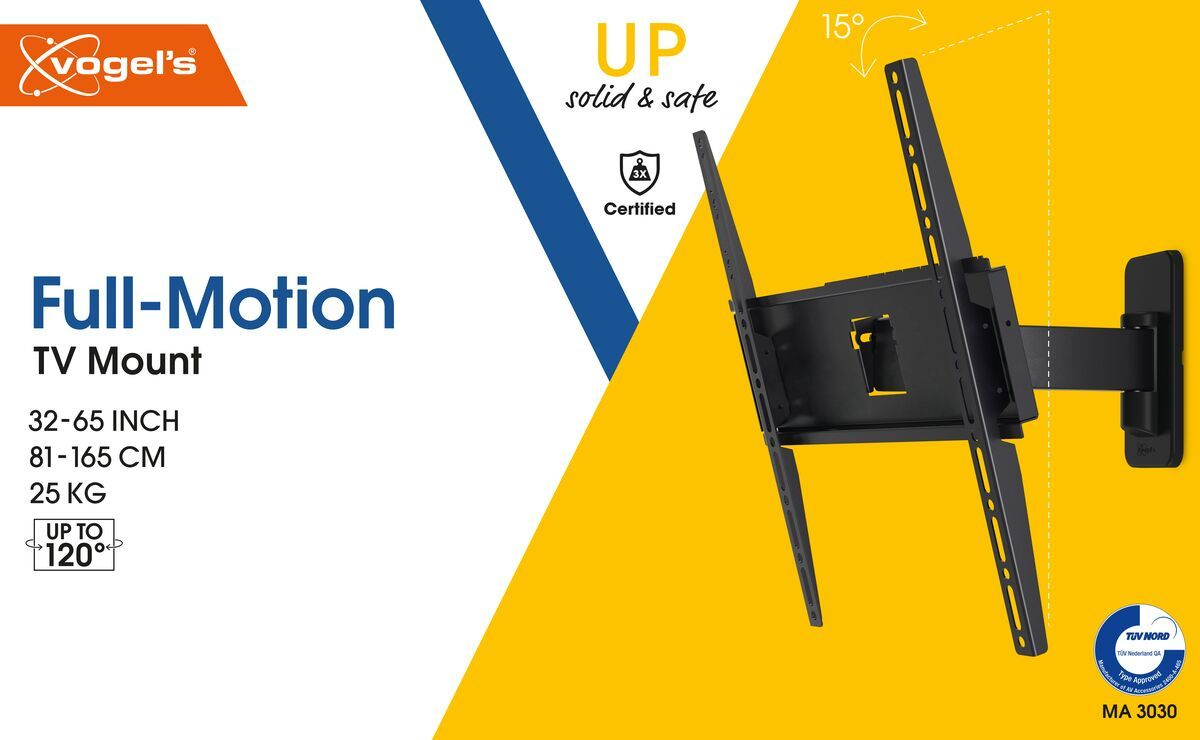

MA 3030
Model MA 3030Part no. 8573030EAN 8712285337086
21 specifications
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Compliance certificatesTÜV mark
- Width419 mm
Overview
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Compliance certificates
- TÜV mark
- Width
- 419 mm
- Brand
- Vogel's
- Category
- TV Mounts & Stands
- Model
- MA 3030
- Part number
- 8573030
- EAN / UPC
- 8712285337086
- Also known as
- Vogel's MA 3030 165.1 cm (65") Black
Specifications
21 specifications in 5 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 25 kg |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 15° |
| Rotating | Yes |
| Angle of rotation | 120° |
| Number of pivot points | 2 |
| Distance to the wall (max) | 26.8 cm |
| Distance to the wall (min) | 8.6 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 419 mm |
| Depth (max) | 8.8 cm |
| Height | 420 mm |
