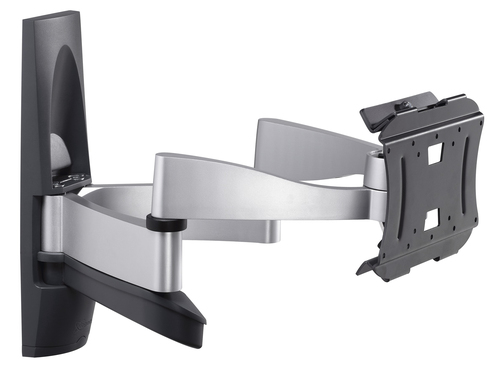

EFW 6245 Plus
Model EFW 6245 PlusPart no. 8324604EAN 8712285322846
17 specifications
- ColourAnthracite, Silver
- Maximum weight capacity35 kg
- Tilt angle range-15 - 15°
Overview
- Colour
- Anthracite, Silver
- Maximum weight capacity
- 35 kg
- Tilt angle range
- -15 - 15°
- Brand
- Vogel's
- Category
- TV Mounts & Stands
- Model
- EFW 6245 Plus
- Part number
- 8324604
- EAN / UPC
- 8712285322846, 8712285322853
- Also known as
- Vogel's EFW 6245 PLUS - Swivel TV wall mount
Specifications
17 specifications in 5 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 35 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -15 - 15° |
| Turn angle | 120° |
| Number of pivot points | 1 |
| Distance to the wall (max) | 46.1 cm |
| Distance to the wall (min) | 9.4 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Anthracite, Silver |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 592 mm |
| Package depth | 106 mm |
| Package height | 386 mm |
| Package weight | 7 kg |
